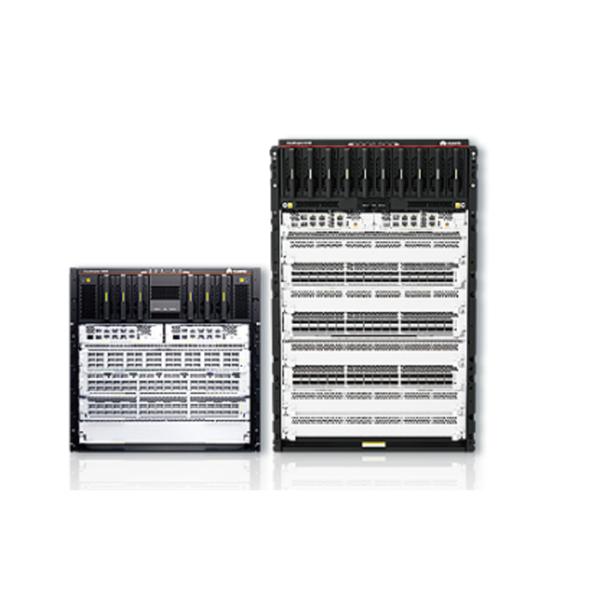

Huawei Campus Switches Cloudengine S16700 Series Switches S16700-4 S16700-8
Huawei Campus Switches Cloudengine S16700 Series Switches S16700-4 S16700-8
Specifications
Brand Name :
Huawei
Model Number :
S16700-4/S16700-8
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
$1208 - $4208
Payment Terms :
T/T,Western Union
Supply Ability :
100pcs
Delivery Time :
10 working days
Packaging Details :
Huawei Box
Specification :
Huawei Campus Switches Cloudengine S16700 Series Switches S16700-4 S16700-8
Description

CloudEngine S16700 Series Campus Switches

CloudEngine S16700 series switches are flagship core switches with record-high performance designed for high-quality 10 Gbps campus networks. This series stands out for ultra-fast forwarding capability of 14.4 Tbit/s per slot, unmatched data switching, and massive terminal access. CloudEngine S16700 is the first to apply Multichassis Link Aggregation Group (M-LAG) technology on campus networks, achieving 99.9999% high reliability. Other compelling features include Virtual Extensible Local Area Network (VXLAN), free mobility, Quality of Service (QoS), Packet Conservation Algorithm for Internet (iPCA), one-click service deployment, and minute-level fault locating. With these traits, CloudEngine S16700 is an ideal choice for global customers to usher in the 400 Gbit/s era of campus networks.

Specifications


Parameters CloudEngine S16700-4 CloudEngine S16700-8
Forwarding Performance 14400 Mpps 28800 Mpps
Switching Capacity 38.4 Tbps 76.8 Tbps
MPU Slots 2 2
Service Card Slots 4 8
SFU Slots 9 * 9 *
Fan Slots 3 3
iPCA Collection of real-time statistics on the number of lost packets and packet loss ratio at network and device levels
VXLAN VXLAN L2 and L3 gateways
Centralized and distributed gateways
BGP-EVPN
Configured through the NETCONF protocol
Reliability Link Aggregation Control Protocol (LACP)
VRRP and BFD for VRRP
BFD for BGP/IS-IS/OSPF/static routes
Eth-OAM 802.3ah and 802.1ag
Smart Link
Interoperability VBST (compatible with PVST, PVST+, and RPVST)
LNP (similar to DTP)
VCMP (similar to VTP)

*Note:The maximum number of SFUs varies with SFU type.
