W01-M58-6105 Firestone Rubber Air Bags Style 255-1.5 Bending Machine Air Spring
W01-M58-6105 Firestone Rubber Air Bags Style 255-1.5 Bending Machine Air Spring
W01-M58-6105 Firestone Rubber Air Bags Style 255-1.5 Bending Machine Air Spring
W01-M58-6105 Firestone Rubber Air Bags Style 255-1.5 Bending Machine Air Spring
W01-M58-6105 Firestone Rubber Air Bags Style 255-1.5 Bending Machine Air Spring
W01-M58-6105 Firestone Rubber Air Bags Style 255-1.5 Bending Machine Air Spring
W01-M58-6105 Firestone Rubber Air Bags Style 255-1.5 Bending Machine Air Spring
W01-M58-6105 Firestone Rubber Air Bags Style 255-1.5 Bending Machine Air Spring
Specifications
Brand Name :
GUOMAT
Model Number :
2B6105
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
5pcs
Price :
USD59.9-69.9/PC
Payment Terms :
L/C, T/T, Or Others
Supply Ability :
1000PCS/Week
Delivery Time :
3-7 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Model Name :
Rubber Air Bags
Quality :
100 % Tested
Transport Package :
Strong Cartons
After-sales Service :
12 Months
Type :
Gas-Filled
Color :
Black
Application :
Bending Machine
Warranty :
12 Months
Description
W01-M58-6105 Firestone Rubber Air Bags Style 255-1.5 Bending Machine Air Spring
Product Overview
Brand: GUOMAT
Model Number: 2B6105
Material: Rubber and Steel
Warranty: 12 Months
Type: Suspension Spring
Position: Rear
Sample: Available
Payment Term: T/T
Operation: Gas-filled
Port: Guangzhou
OE Interchange Numbers
  • Firestone Style 255-1.5
  • Firestone W01-M58-6105
  • Firestone W01 M58 6105
  • Firestone W01M586105
  • Firestone Style 255-1.5
  • Firestone WO1-M58-6105
  • Firestone WO1 M58 6105
  • Firestone WO1M586105
Technical Specifications
Mounting Flange
Flange Diameter 114 mm
Air Port 1/4 BSP
Threaded Holes M8 x 1.25
Center Distance Between Threads 44 mm
External Dimensions
Maximum Outer Diameter 163 mm
Maximum Height 203 mm
Minimum Height 76 mm
Calculated Stroke 127 mm
Performance Data
Assembly Height (mm) Volume@7 BAR (cu cm) EFF Area @7 BAR(cm sq) kN Force
175 2048 86 2.5 3.4 4.3 5.2 6.0
150 1786 107 3.2 4.3 5.3 6.4 7.5
125 1491 123 3.6 4.9 6.1 7.3 8.6
100 1163 134 4.0 5.3 6.7 8.0 9.4
75 803 143 4.2 5.7 7.1 8.5 10.0
60 623 156 4.7 6.2 7.8 9.4 10.9
Applications in Press Brake Machines
In press brake equipment, air springs are mainly used in the upper die clamping system, back gauge adjustment mechanism, and compensation device. They provide stable and controllable elastic support and stroke compensation through compressed air.
Tool Clamping Air springs provide uniform thrust to the upper die clamping mechanism, ensuring consistent, smooth, and damage-free clamping and release of the die, improving operational safety and die change efficiency.
Crowning/Compensation System When machine deformation occurs during bending, air springs provide precise lifting or supporting force to compensate for the deflection of the machine tool's longitudinal beam and worktable, improving the accuracy and consistency of bending angles.
Back Gauge Buffering and Positioning Air springs act as a buffer component for the back gauge, providing flexible support for the moving mechanism, improving positioning stability, reducing mechanical impact, and extending the life of guide rails and lead screws.
Vibration Damping and Energy Absorption Bending machines generate vibrations during high-speed operation. Air springs have excellent vibration absorption capabilities, which can reduce structural vibration, improve bending accuracy, and reduce mechanical noise.

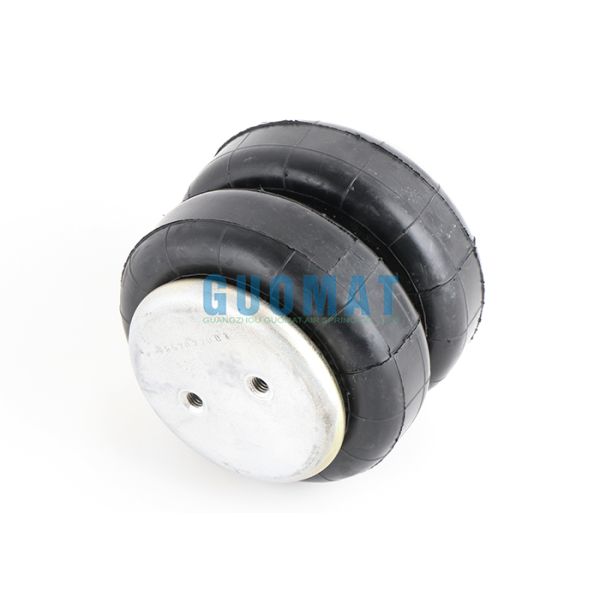

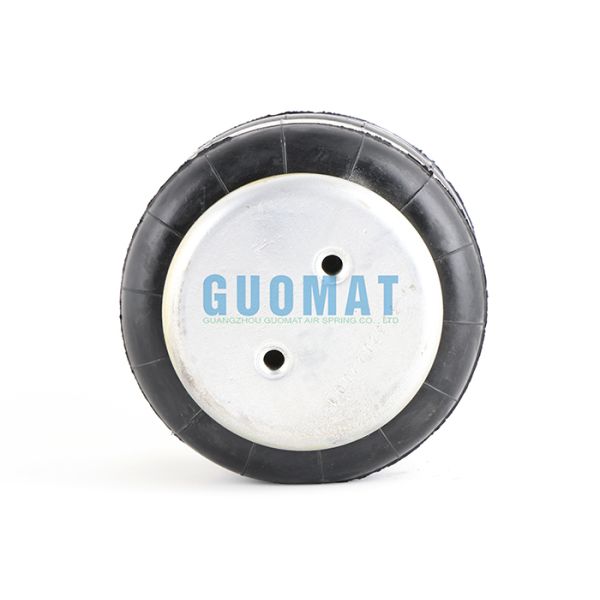

Product Images
W01-M58-6105 Firestone Rubber Air Bags Style 255-1.5 Bending Machine Air Spring W01-M58-6105 Firestone Rubber Air Bags Style 255-1.5 Bending Machine Air Spring
