2B-180 Airkraft Industrial Rubber Air Bag FD120-17 Contitech Pneumatic Shock Absorber
2B-180 Airkraft Industrial Rubber Air Bag FD120-17 Contitech Pneumatic Shock Absorber
2B-180 Airkraft Industrial Rubber Air Bag FD120-17 Contitech Pneumatic Shock Absorber
2B-180 Airkraft Industrial Rubber Air Bag FD120-17 Contitech Pneumatic Shock Absorber
2B-180 Airkraft Industrial Rubber Air Bag FD120-17 Contitech Pneumatic Shock Absorber
2B-180 Airkraft Industrial Rubber Air Bag FD120-17 Contitech Pneumatic Shock Absorber
Specifications
Model Number :
2B12017
Country Of Origin :
China
MOQ :
6pcs
Delivery Time :
3-7 Working Days
Number Of Convolutions :
Double
Brand Name :
GUOMAT
Other Name :
Pneumatic Air Spring
Packaging Details :
Strong Carton Box Or As Customers Need
Payment Terms :
L/C,D/A,D/P,T/T
Condition :
100% New
Shock Absorber Type :
Gas-filled
Price :
US$69.9-79.9/PC
Temperaturerange :
-40°C to 70°C
Supply Ability :
1000pcs/week
Part :
Air Spring
Certification :
ISO/TS16949:2009
Warranty Special :
1 Year
Place of Origin :
GuangDong, China
Description
2B-180 Airkraft Industrial Rubber Air Bag FD120-17 Contitech Pneumatic Shock Absorber
High-performance double convoluted air spring designed for industrial vibration isolation and shock absorption applications.
Product Specifications
Item Description
Brand GUOMAT
Model Number 2B120-17
Product Type Double Convoluted Air Spring
Alternative Name Rubber Air Shock / Pneumatic Vibration Isolator / Air Bellows
Material High Quality Rubber + Steel
Application Industrial Vibration Isolation & Shock Absorption
Warranty 12 Months
Corresponding OEM Numbers
CONTITECH 603N | FIRESTONE FLEX 26 | FIRESTONE W01-358-0142 | PIRELLI 26 | PHOENIX 2B07R | GOODYEAR 2B8-550 | PIRELLI T2684181 | CONTITECH FD 120-17 2682030000 | FIRESTONE W01-M58-6387 | FIRESTONE W01-358-7325 | CF GOMMA T26/84181 | WEFORMA WBZ 300-E1 | B-OSCH 822419042 | DUNLOP(FR) S08201 | GOODYEAR 2B7-540 | GOODYEAR 2B8-2152 | FESTO EB-215-155 | NORGREN PM/31082(8''X2) | TAURUS KF218 | FIRESTONE W01-M58-6353 | FIRESTONE 026B 095.0275 | CONTITECH FD120-17 61361 | GOODYEAR 2B8-850 | WEFORMA WBZ300-E2 | B-OSCH 822419062 | FIRESTONE W01-358-7325 | CONTITECH FD120-20 509 | GOODYEAR 2B8-550 | HENDRICKSON 14395 | FIRESTONE W01-358-7327 | GOODYEAR 2B8-552

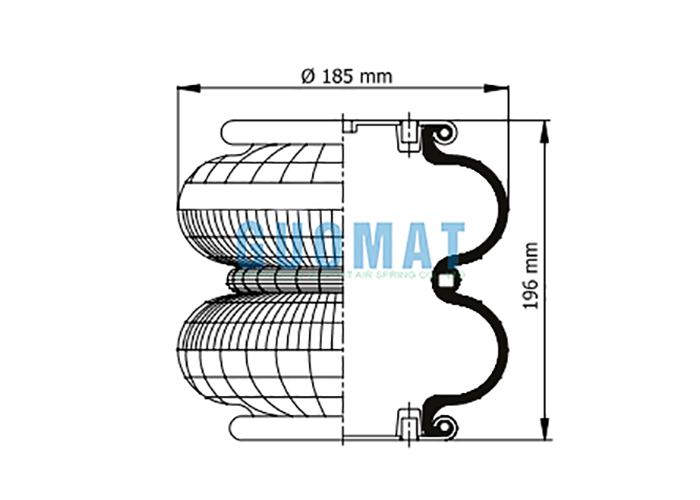

Technical Data
Height: 196mm
Diameter: 185mm
Mounting Configuration Options
Description Air Hole Distance
Rubber bellow only
Top/Bottom plate M8 (blind nuts), assembly axis 54mm G1/4 26mm
Top/Bottom plate M8 (blind nuts), assembly axis 70mm G3/4 center
Top/Bottom plate M8 (blind nuts), assembly axis 70mm G1/4 center
Top/Bottom plate 3/8-16 (blind nuts), assembly axis 70mm 1/4NPT center
Top/Bottom plate 3/8-16 (blind nuts), assembly axis 70mm 3/4NPT center
Top/Bottom plate M10 (blind nuts), assembly axis 70mm 1/4NPT center
Packaging & Delivery
Packaging Details
GUOMAT industrial air springs are carefully packed to ensure safe transportation and prevent damage during shipment.
  • Each air spring is packed individually in a protective plastic bag
  • Products are placed in strong export cartons with proper protection
  • Product model, quantity, and shipping marks are clearly labeled on the outside of each carton
  • Customized packaging and customer logo marking are available for OEM orders
Delivery Information
  • Fast and reliable worldwide shipping service available by sea, air, or express delivery
  • Products shipped from GUOMAT's production facilities with strict quality inspection
  • Standard delivery time depends on order quantity and shipping method
  • Bulk orders for distributors and industrial customers with flexible logistics solutions
