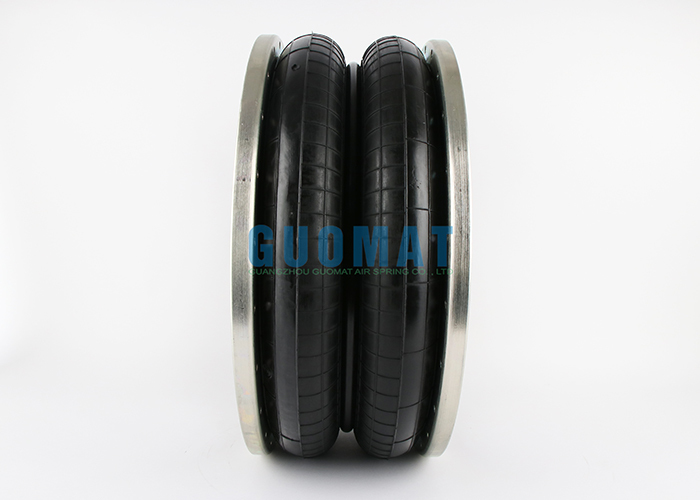

FT960-34 RS Contitech Air Bellows Replacement W01-358-7761 Firestone Industrial Air Spring
FT960-34 RS Contitech Air Bellows Replacement W01-358-7761 Firestone Industrial Air Spring
FT960-34 RS Contitech Air Bellows Replacement W01-358-7761 Firestone Industrial Air Spring
FT960-34 RS Contitech Air Bellows Replacement W01-358-7761 Firestone Industrial Air Spring
FT960-34 RS Contitech Air Bellows Replacement W01-358-7761 Firestone Industrial Air Spring
FT960-34 RS Contitech Air Bellows Replacement W01-358-7761 Firestone Industrial Air Spring
FT960-34 RS Contitech Air Bellows Replacement W01-358-7761 Firestone Industrial Air Spring
FT960-34 RS Contitech Air Bellows Replacement W01-358-7761 Firestone Industrial Air Spring
Specifications
Fitment Type :
Direct Replacement
Model Number :
2B7761
Spring Material :
High Quality Rubber
MOQ :
6pcs
Delivery Time :
3-7 Working Days
Product Name :
Rubber Air Spring
Brand Name :
GUOMAT
Packaging Details :
Strong Carton Box Or As Customers Need
Color :
Black
Payment Terms :
L/C,D/A,D/P,T/T
Contitech :
FT960-34RS
Price :
US$399.9-499.9/PC
MOQ :
6pcs
Supply Ability :
1000pcs/week
Usage :
For Punching Equipment
Certification :
ISO/TS16949:2009
Warranty :
12 Months Warranty
Place of Origin :
China
Description
FT960-34 RS Contitech Air Bellows Replacement W01-358-7761 Firestone Industrial Air Spring
High-quality replacement air spring designed to match OEM specifications for industrial applications.
Product Identification
GUOMAT NO.: 2H7761
CONTITECH: FT960-34RS, FT 960-34RS, FT 960-34 RS
FIRESTONE: W01-358-7761, W01 358 7761, W013587761
Technical Specifications
  • Flange diameter: 15.12 inches
  • Maximum outer diameter: 18.2 inches
  • Bolts: 18 x 3/8-24 UNF
  • Bolt center-to-center distance: 13.8 inches
  • Maximum height: 17.7 inches
  • Minimum height: 4.5 inches
  • Minimum pressure: 0 psi
  • Return force to minimum height: ≤135 lbs
  • Overall weight with bead rings, bolts, nuts and washers: 21 lbs
  • Design height H: recommended 13 in, minimum 12.4 in
Performance Data - Design Height 13 inches
Pressure (psi) 40 60 80 100 120 Volume (in³)
Force (Load) (lbs) 5770 8650 11530 14420 17300 2125
Spring Rate (lbs/in) 1144 1659 2079 2610 3029
Natural Frequency (Hz) 1.4 1.3 1.3 1.3 1.3
Force vs Height Performance
Height H (in) 20 psi 40 psi 60 psi 80 psi 100 psi 120 psi Volume (in³)
15 2420 4830 7250 9670 12080 14500 2368
13 2880 5770 8650 11530 14420 17300 2125
11 3270 6530 9800 13070 16330 19600 1846
9 3560 7130 10690 14250 17820 21380 1511
Packaging & Delivery
Each GUOMAT air bellows is carefully packaged to protect the rubber body and metal components during transportation.
  • Individual protective poly bag
  • Carton packaging
  • Product number and quantity marked on the carton
  • Customized packaging available upon request
  • Customer logo and product marking available for OEM orders
GUOMAT can arrange international shipping by air freight, sea freight, express delivery, or other suitable transportation methods according to order quantity and destination.
Warranty
GUOMAT provides a 12-month / 1-year warranty for this air suspension isolator under normal operating conditions. If a quality-related issue occurs during the warranty period, customers can contact our sales team for technical support and after-sales assistance.
