Specifications
Brand Name :
GUOMAT
Model Number :
2B0138
Certification :
ISO/TS16949, ISO9001
Place of Origin :
Guangzhou China
MOQ :
5pcs
Price :
USD59.9-69.9/PC
Payment Terms :
L/C, T/T, Or Others
Supply Ability :
1000PCS/Week
Delivery Time :
3-7 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Material :
Rubber
Type :
Gas-Filled
Quality :
100 % Tested
Fuction :
Reduce Shock
Transport Package :
Strong Cartons
Warranty :
12 Months
Firestone Style :
274
Convoluted :
Double
Description
Natural Rubber W01-358-0138 Firestone Pneumatic Bellows Actuators Style 274
Product Description
  • Brand: GUOMAT
  • Model Number: 2B0138
  • Material: Natural Rubber
  • Warranty: 1 Year
  • Quality: 100% Tested
  • Sample: Available
  • Packing: Customized Packing
OE Manufacturer Number
  • Firestone Style: 274
  • Firestone Rubber Bellows: W01-358-0138 / WO1-358-0138
  • Firestone Rubber Bellows: W01 358 0138 / WO1 358 0138
  • Firestone Rubber Bellows: W013580138 / WO13580138
Firestone air spring assembly with the same rubber type:
  • Firestone Air Spring Number: W01-358-6910
  • Firestone Air Spring Number: W01 358 6910
  • Firestone Air Spring Number: W013586910
  • Firestone Air Spring Number: W01-358-6911
  • Firestone Air Spring Number: W01 358 6911
  • Firestone Air Spring Number: W013586911
  • Firestone Air Spring Number: W01-358-6900
  • Firestone Air Spring Number: W01 358 6900
  • Firestone Air Spring Number: W013586900
  • Firestone Air Spring Number: W01-358-6901
  • Firestone Air Spring Number: W01 358 6901
  • Firestone Air Spring Number: W013586901
  • Firestone Air Spring Number: W01-358-6923
  • Firestone Air Spring Number: W01 358 6923
  • Firestone Air Spring Number: W013586923
GUOMAT 2B0138 Air Bellow Technical Data
Natural Height 210mm
Natural Outer Diameter 224.63mm
Outer Diameter 153mm
Inner Diameter 115.5mm
Assembly Height(in.) Volume@ 100PSIG(in3) Pounds Force
9.0 392 392 | 770 | 1195 | 1642 | 2114
8.0 365 576 | 1128 | 1713 | 2309 | 2940
7.0 331 707 | 1396 | 2104 | 2832 | 3582
6.0 291 806 | 1601 | 2410 | 3237 | 4082
5.0 247 903 | 1796 | 2702 | 3624 | 4562
4.0 197 993 | 1966 | 2953 | 3948 | 4958
Common Faults and Maintenance
Common Faults:
  • Airbag Aging and Cracking: Prolonged exposure of the rubber material to ozone, ultraviolet radiation, and extreme temperatures can cause cracking and air leakage.
  • Height Valve Malfunction: A stuck valve core, damaged connecting rod, or air leakage can prevent the cab from maintaining a level position.
  • Air Line Leaks: Loose or damaged air hose connections can lead to insufficient system pressure.
  • Foreign Object Cuts: Pebbles or sharp objects on the road may puncture the airbag.
Maintenance Recommendations:
  • Regular Inspection: Visually inspect the airbag surface for cracks, cuts, and abnormal wear.
  • Keep Clean: Regularly clean the airbag and surrounding area to prevent the accumulation of corrosive substances.
  • Check the Height Valve: Ensure its connecting rod moves freely without interference.
  • Use High-Quality Air: Ensure the dryer and oil-water separator of the entire vehicle's air system are functioning properly.

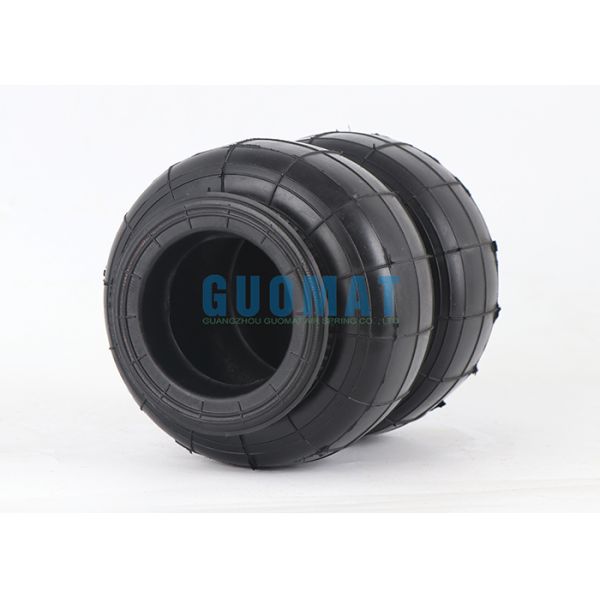

The Related Picture of W01-358-0138
Natural Rubber W01-358-0138 Firestone Pneumatic Bellows Actuators Style 274
