PM/31041 NUOGREN Air Spring Isolator FS44-5DI Contitech Air Bellow For Packing Equipment
PM/31041 NUOGREN Air Spring Isolator FS44-5DI Contitech Air Bellow For Packing Equipment
PM/31041 NUOGREN Air Spring Isolator FS44-5DI Contitech Air Bellow For Packing Equipment
PM/31041 NUOGREN Air Spring Isolator FS44-5DI Contitech Air Bellow For Packing Equipment
PM/31041 NUOGREN Air Spring Isolator FS44-5DI Contitech Air Bellow For Packing Equipment
PM/31041 NUOGREN Air Spring Isolator FS44-5DI Contitech Air Bellow For Packing Equipment
Specifications
Model Number :
1B4.5X1P
Contitech :
FS 44-5 DI
MOQ :
6PCS
Delivery Time :
2-8 work days
Buffer Block :
Without
Brand Name :
GUOMAT
Keywords :
Air Suspension Shock Absorber
Packaging Details :
Strong Carton Box Or As Customers Need
Payment Terms :
L/C,D/A,D/P,T/T
Number Of Convolutions :
Single
Quality :
100 % Tested
Price :
$89.9-99.9/pc
Type Of Goods :
Rubber Air Spring
Supply Ability :
1000pcs/week
Product :
Cabin Air Shock Spring
Certification :
ISO/TS16949:2009
Structure :
Single Convoluted Type
Place of Origin :
GuangDong, China
Description
PM/31041 NUOGREN Air Spring Isolator FS44-5DI Contitech Air Bellow For Packing Equipment
The GUOMAT 1B4.5X1P Air Spring is a single-convoluted rubber air spring engineered for vibration isolation, shock absorption, and height control in industrial machinery applications. This premium replacement solution is compatible with NUOGREN PM/31041 and Contitech FS44-5DI models, making it ideal for equipment manufacturers, maintenance providers, and industrial spare parts distributors.
Key Features & Benefits
  • Flexible rubber air chamber with durable end construction
  • Reliable pneumatic cushioning for vibration reduction
  • Effective noise reduction capabilities
  • Compact single-convoluted design for space-constrained installations
  • Suitable for packing equipment, packaging machinery, and automation systems
  • Ideal for material handling systems and industrial machines
Product Specifications
Brand GUOMAT
Model No. 1B4.5X1P
Type Air Spring
Warranty 1 Year
Material Rubber + Steel
Color Black + Silver
Cross-Reference Part Numbers
Manufacturer Part Numbers
Continental ContiTech FS 44-5 70205, FS 44-5 DI CR 70205, FS 44-5 G3/8 M6, FS 44-5 DI CR G3/8, FS 44-5 DI CR G3/8 M6, FS 44-5 DI G3/8 CR, FS 44-5 DI CR/FS44-5DICR/FS445DICR, FS 44-5/FS44-5/FS445
Firestone Style: 41/2" x1/41/2"x1/41/2x1, No.: W01-R58-4050/W01 R58 4050/W01R584050
Norgren PM/31041/PM 31041/PM31041
Dunlop UK (Pneuride) PNP 30559 01 06/PNP305590106
Parker 9109400

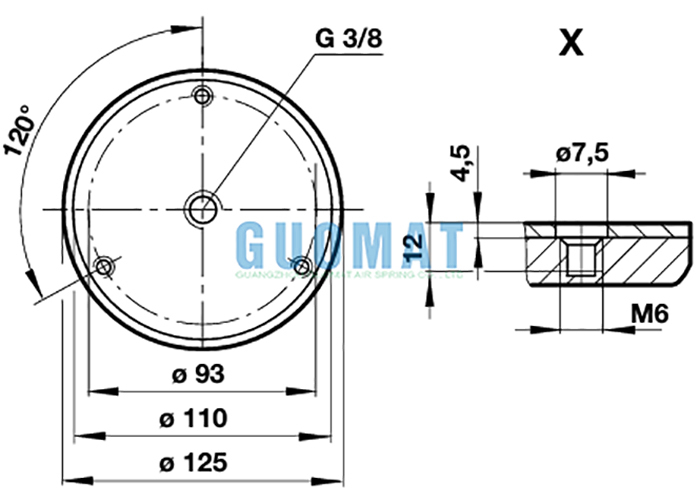

Technical Specifications
Nominal Ø x convolutions Stroke (mm) Installation height [A] min. (mm) Recommended working height [B] max. (mm) Installation height [C] max. (mm) Max. torque for mounting studs (Nm) Natural frequency [fn] at 4 bar (Hz) Stiffness at 4 bar (N/mm) Recommended vibration height (mm) Weight (kg) Model
4 1/2" x 1 40 50 80 90 5 3.96 148 70 0.75 PM/31041
Warranty & Support
GUOMAT provides a comprehensive 12-month warranty for this industrial air spring under normal operating conditions. Our experienced sales and technical support team is available to assist with product selection, dimensional verification, replacement identification, and installation requirements to ensure you receive the correct air spring for your application.
