Specifications
Brand Name :
HAIYE MEDICAL
Model Number :
HYHJ-KC
Certification :
CE/FDA/ISO13485/ISO9001
Place of Origin :
Shaanxi China
MOQ :
1SET
Price :
900-1500USD/SET
Payment Terms :
T/T
Supply Ability :
1000sets
Delivery Time :
5-8 work days
Packaging Details :
cartoon/protective box
Material :
Reusable Video Laryngoscope
Display :
3.0 High Definition screen
Carema :
CMOS, double anti fog
Resolution :
960*480
Viewing angle :
70°± 2°
Depth of fields :
3~100mm
Battery :
lithium ion battery,3.7V
Host key :
Freeze frame, take photo and vedio
Pixels :
2 million
OEM service :
Yes
Advanteges :
Better Glottic View
Application :
Difficult Airway Intubation
Description

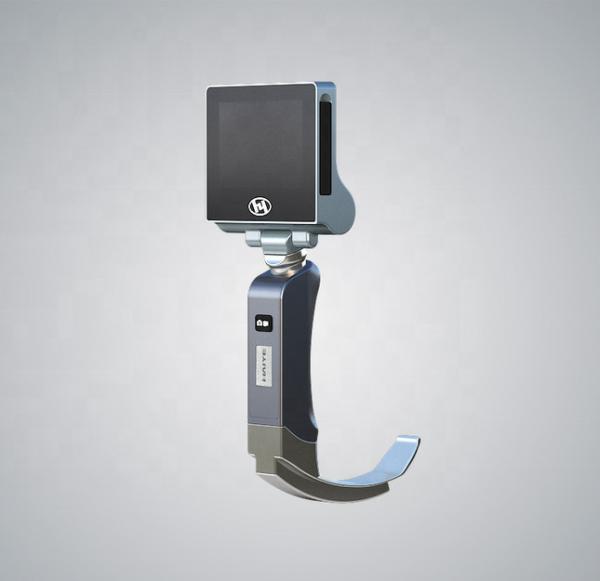

Airway Intubation Reusable Video Laryngoscope 3.0 High Definition With Glottic View

  • The shell of the whole machine is made of medical-grade metal material, the high-grade, atmospheric, thick, solid handle is comfortable to hold;
  • Product configuration is rich, up to five specifications of the camera system can be replaced between different patients, to achieve a multi-purpose machine;
  • Digital camera system with high - resolution display, make intubation easier;
  • The laryngoscope is made of medical grade stainless steel, which can be used repeatedly after disinfection which reduce the cost;
  • Photo, video, freeze frame, storage, external play, large capacity battery, complete function

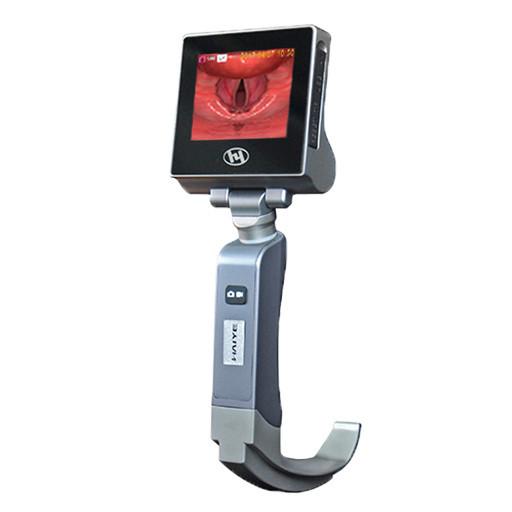

Airway Intubation Reusable Video Laryngoscope 3.0 High Definition With Glottic ViewAirway Intubation Reusable Video Laryngoscope 3.0 High Definition With Glottic View

Application

It is often used to provoke the patient's epiglottis to expose the glottis, allowing the user to perform tracheal intubation under visual observation. Further optimization and improvement of the appearance and shape of the video laryngoscope will make the video laryngoscope more consistent with the structural characteristics of the upper respiratory tract (especially the difficult airway).

It is suitable for clinical tracheal intubation, simulation exercise, clinical teaching and difficult airway intubation in anesthesiology department, emergency department, ICU/ pediatric department, ambulance and other medical departments at all levels

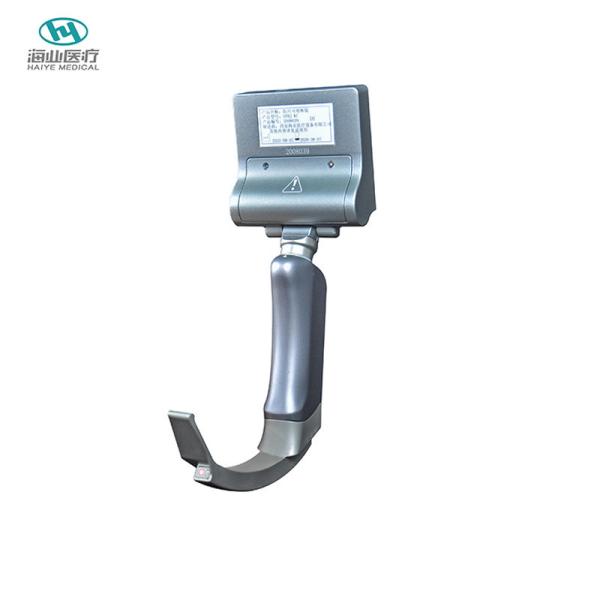

Airway Intubation Reusable Video Laryngoscope 3.0 High Definition With Glottic View

Why Choose Video Laryngoscope?

Moderate quality evidence showed that video laryngoscopy reduced failed intubations including in participants with anticipated difficult airways. Video laryngoscopes reduced laryngeal/airway trauma and hoarseness. Videolaryngoscopy increased easy laryngeal views and reduced difficult views and intubation difficulty, typically using an ‘intubation difficulty score’.

Video laryngoscopes can reduce the number of failed intubations, particularly among patients presenting with a difficult airway. They improve the glottic view and may reduce laryngeal/airway trauma.

Airway Intubation Reusable Video Laryngoscope 3.0 High Definition With Glottic View

Technical feature

Name Technical term Technical Index

Machine

Display Resolution 960 x 480
Pixels 2 million
Camera Resolution 1600 x 1200
Viewing angle 70 ± 2 degree
Depth of field 3~100mm
Host key Freeze frame, take photo and video
Material Medical Stainless Steel
Light source Built-in high power waterproof LED light source
Camera Dual anti-fog, intubation without blind area
Interface USB,TF(Hot plug)
Rotate angle front to back: 135 º, left to right: 275 º
laryngoscope 5 resuable blades suit for different oral structure

Powder Adapter

Input 100 - 240V50/60Hz,0.35A
Output 5V,2000mA, USB output

Battery

Charging time <4h
Cycle life of battery > 800 times
Battery type lithium ion battery
Battery working time continues use ≥ 350 mins

Working Condition

Environment tem -5°~ 40°C
Relative humidity ≤80%
atmosphere pressure 860hpa~1060hpa
internal electric source lithium ion battery,3.7V
Transport / Storage Condition Ambient temperature -40 ~ 55°C
Relative humidity ≤93%

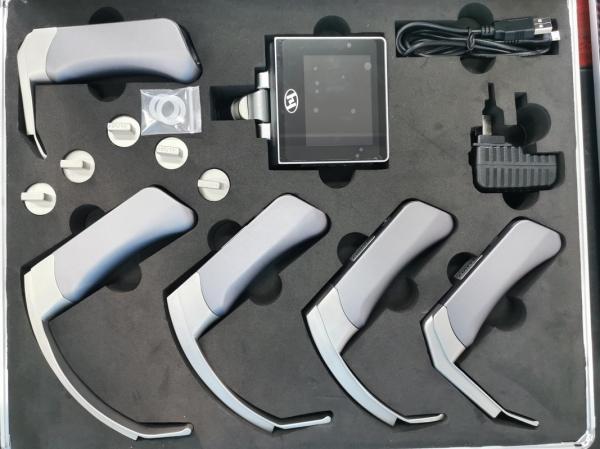

5 Stainless types of blades can suit for different oral structure:

Large Adult Midium Adult Small Adult & Large Child Medium Child Small Child & Infant

Airway Intubation Reusable Video Laryngoscope 3.0 High Definition With Glottic View


Welcome to inquiry if you have any interests!

OEM order is acceptable.
