Specifications
Brand Name :
Haiye
Model Number :
HYHJ-1320
Certification :
CE ,ISO13485
Place of Origin :
China
MOQ :
1 Set
Price :
USD700-USD900
Payment Terms :
L/C, D/P, T/T
Supply Ability :
500Set /month
Delivery Time :
5-8 days

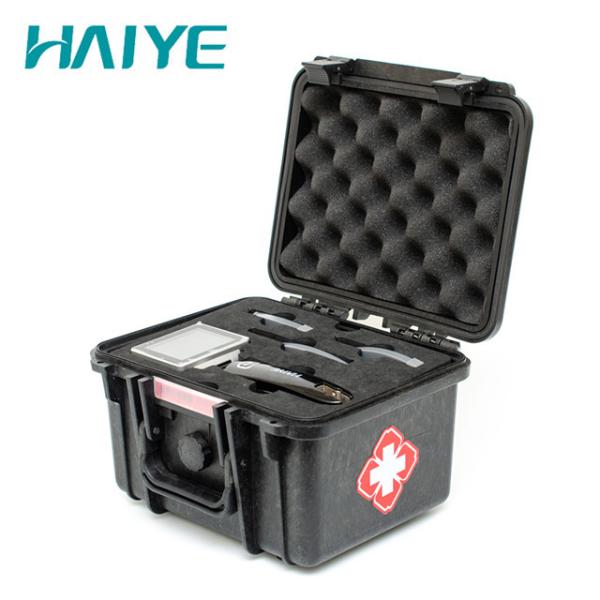

Packaging Details :
Carton
Product name :
Video Laryngoscope
Screen :
3.0 inch
Pixel :
2 Million
Material :
Medical grade PC
Certificate :
CE ,ISO13485
Blade :
3 size disposable blades
Battery :
Rechargeable blade
Battery Capacity :
3400mA
Depth of field :
3-100mm
Description

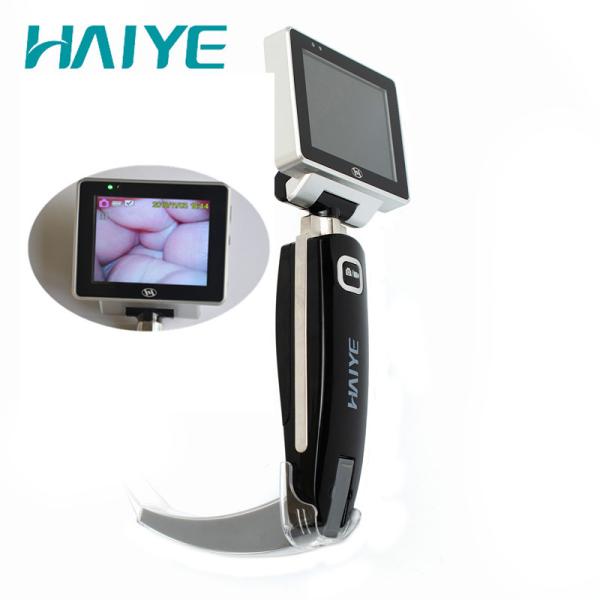

Endoscope Anesthesia Surgical Video Laryngoscope with 3 size disposable blades

Professional Video Laryngoscope Factory

Type : HYHJ-1320

Disposable Blade size: 1. Adult 2. Pediatric 3. Neonate

Application :

Haiye Video Laryngoscope is a portable, economic, durable, high-definition video laryngoscope fit for a disposable blade.

Widely used for anesthesia, emergency department and ICU, pediatrics, ambulance etc, for clinical endotracheal intubation, simulated practice, clinical teaching, difficult airway intubation.

1. Clinical endotracheal intubation.

2. Simulation practice

3. Clinical teaching

4. Difficult airway intubation

Technical Index
Machine

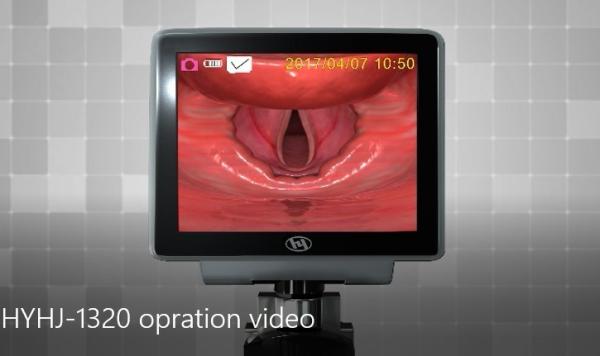

Screen
3 inch LCD
Resolution
960*480 (RGB)
Viewing angle
≥70º
Power
<2W
Display front and back rotation Angle
0 º~175 º
Weight
225g
Camera
Illuminance
≥3000 LUX
Resolution
1200*1600 px
Image/Video function
Image/ Video function
Yes
Output
USB output, Easy to storage and establish image/video
Memory type
Micro SD card 32GB
Battery
Battery Type
Rechargable lithium battery
Capacity
3400mAh
Cycle life of battery
>600 times
Battery working time
>400min
Charging time
<2(hrs)
Charging Port
Micro USB
Power Adapter
Input
100-250V, 50 Hz.
Output
5V1A
