Specifications
Certification :
ISO9001/ISO14001/ISO45001
Nominal discharge current (8/20μs) :
20kA
Model Number :
BR-40DP 48
Max. continuous operating d.c. voltage :
65V
Delivery Time :
15-20 days after payment
Name :
DC 48V 40kA SPD
MOQ :
20PCS
Packaging Details :
Export packaging
Voltage protection level :
≤700V
Supply Ability :
1000000 per month
Enclosure material :
Thermoplastic UL94-V0
Payment Terms :
T/T,L/C
Operating state / fault indication :
green / red
Brand Name :
BRITEC
Nominal voltage :
48V
Place of Origin :
China
Max. discharge current (8/20μs) :
40kA
Description
BR-40DP 48 Type 2 DC 48V SPD 40kA Surge Protective Device (SPD) DC Power Surge Protector
BR-40DP 48 Type 2 DC 48V SPD 40kA Surge Protective Device with Thermoplastic UL94-V0 Enclosure BR-40DP 48 Type 2 DC 48V SPD 40kA Surge Protective Device with Thermoplastic UL94-V0 Enclosure

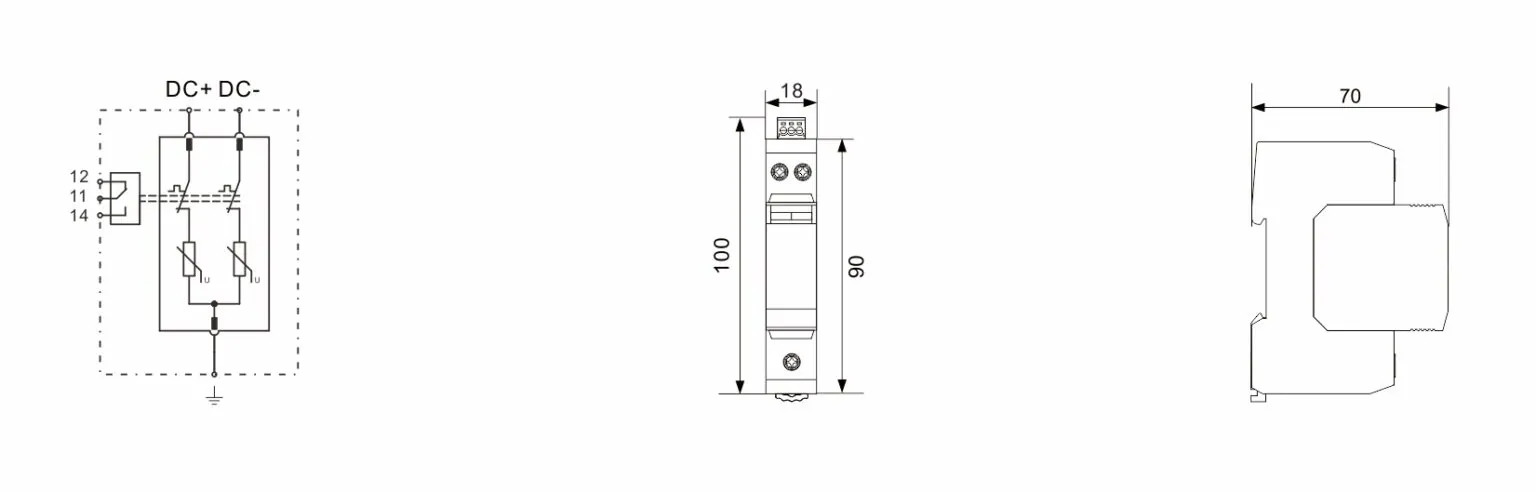

Product Specifications
Specification BR-40DP-48
SPD classification according to EN61643-31 / IEC61643-31 Type 2 / Class II
Nominal voltage 48V
Max. continuous operating d.c. voltage 65V
Nominal discharge current (8/20μs) 20kA
Max. discharge current (8/20μs) 40kA
Voltage protection level ≤700V
Response time ≤25ns
Operating temperature range -40℃-80℃
Operating state / fault indication green / red
Cross-section area (Min.) 2.5mm²
Cross-section area (Max.) 16mm²
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Degree of protection IP20
Order code B6732
Order code (with remote signal) B6733
Key Features
  • Module design, convenient installation, with easy electric maintenance operation
  • With working indication window
  • Built-in over current and over heat, temperature control open circuit technology
  • The main module and the base are replaceable
  • Small creepage current, fast response time, remnant low voltage
  • Mounting on symmetrical rail 35mm (EN60715)
  • With remote connection, can realize remote control
Applications
It is mainly applicable for the Direct Current surge protection and over voltage protection in the fields of low voltage DC power supply.
Applied to electrical systems to provide a discharge path to earth to save those systems' components from being exposed to the high-voltage transients caused by the direct or indirect effects of lightning or power system anomalies.
It is installed in the main power system at DC circuit, to protect against the indirect lighting current, direct lighting current or other instantaneous over voltage.
About BRITEC Electric
Wenzhou Britec Electric Co., Ltd. was established in 2003. BRITEC and TYCOTIU are sister companies. Britec is a professional surge protective devices (SPD) manufacturer specializing in design and production of surge protection devices for power protection, data protection, and PV protection applications.
Britec operates an in-house laboratory equipped with 100kA 10/350 lightning impulse generator, 25kA 10/350 impulse generator, 120kA 8/20 generator, 1.2/50 20kV combination generator, TOV test station, and other advanced test equipment.
The company maintains ISO9001, ISO45001, and ISO14001 management systems. Various products are TUV, CB CE, RoHS certified. Britec has established long-term business relationships with European customers and extensive experience working with multi-national companies.
