670V Rated Voltage 20kA Max Discharge Current DC Surge Protector PCB Mounted SPD for Inverter Protection
670V Rated Voltage 20kA Max Discharge Current DC Surge Protector PCB Mounted SPD for Inverter Protection
670V Rated Voltage 20kA Max Discharge Current DC Surge Protector PCB Mounted SPD for Inverter Protection
670V Rated Voltage 20kA Max Discharge Current DC Surge Protector PCB Mounted SPD for Inverter Protection
670V Rated Voltage 20kA Max Discharge Current DC Surge Protector PCB Mounted SPD for Inverter Protection
670V Rated Voltage 20kA Max Discharge Current DC Surge Protector PCB Mounted SPD for Inverter Protection
Specifications
Function: :
Lightning protection
Rated Voltage :
670V
Imax :
20kA
Application :
Soldered on PCB
Degree of protection :
IP20
Protection level :
T2
Up :
2.0kV
Brand Name :
BRITEC
Model Number :
BRPV-20RS/670
Certification :
none
Place of Origin :
China
MOQ :
1 piece / pieces
Payment Terms :
T/T,D/P
Supply Ability :
50000 pieces per month
Delivery Time :
15 days after payment
Packaging Details :
EXPORT PACKING
Housing material :
UL94-V0
Item Name: :
PCB mounted SPD
Description
670V DC Mini Surge Protector - PCB Mounted SPD for Inverters
Product Overview

The BRPV-20RS/500 series of PCB mounted power supply lightning protection devices are designed for miniaturized SPD combination lightning protection products, meeting strict requirements for no fire under extreme power frequency overload. These devices protect equipment from lightning overvoltage and transient overvoltage damage to circuit components.

670V Rated Voltage 20kA Max Discharge Current DC Surge Protector PCB Mounted SPD for Inverter Protection 670V Rated Voltage 20kA Max Discharge Current DC Surge Protector PCB Mounted SPD for Inverter Protection 670V Rated Voltage 20kA Max Discharge Current DC Surge Protector PCB Mounted SPD for Inverter Protection 670V Rated Voltage 20kA Max Discharge Current DC Surge Protector PCB Mounted SPD for Inverter Protection
Technical Specifications
Parameter BRPV-20RS/500 BRPV-20RS/670
IEC Class Class II Class II
UL Level Type 4 Type 4
Max. Continuous Operating Voltage Ucpv (V) 500V 670V
Nominal Discharge Current (8/20μs) In (kA) 10kA 10kA
Max. Discharge Current (8/20) Imax (kA) 20kA 20kA
Voltage Protection Level Up (kV) 1.8kV 2.0kV
Remote Signaling NC (optional) NC (optional)
Flame Retardant Rating UL94 V-0
Capacity of Withstand Short Circuit Iscpv 50A
Operating Temperature & Humidity Temperature: -40℃ to 85℃; Relative Humidity: 95% (25℃)
Dimensions (1P) (W×L×H) 35×14.4×26.5mm (excluding pins)
Mounting Soldered onto PCB
Protection Rating IP 20
Housing Material PBT
Applications
  • Outdoor and Commercial LED Lighting
  • Roadway Lighting
  • Traffic Lighting
  • Digital Signage
  • Wall Wash Lighting
  • Parking Garage Lighting
  • Flood Lighting
  • Tunnel Lighting
  • Street Lighting
Quality Advantages
  • Own manufacturing factory with 17+ years of experience
  • Superior quality-to-price ratio with excellent after-sales service
  • Strict ISO9001:2001 quality control system implementation
  • Professional machinery and experienced workforce ensuring on-time delivery
  • Comprehensive after-sales service supporting long-term partnerships
  • Wide variety of styles to meet diverse customer requirements
  • OEM & ODM services available with custom production capabilities
670V Rated Voltage 20kA Max Discharge Current DC Surge Protector PCB Mounted SPD for Inverter Protection

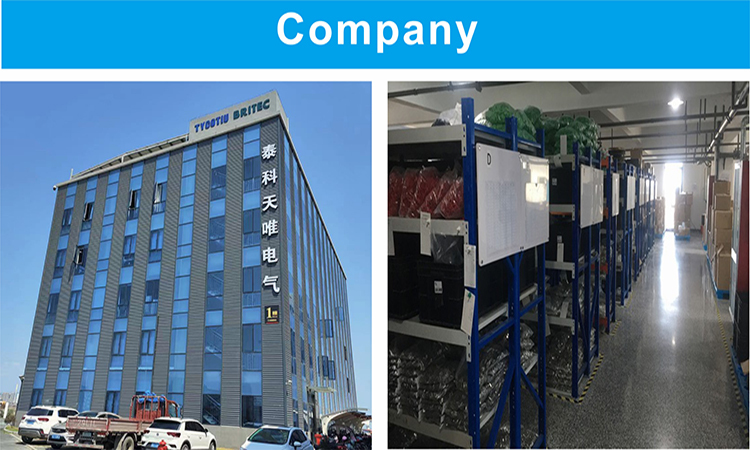

Company Profile

We are a specialized manufacturer of surge protection devices with 17 years of experience. Our company develops various types of SPDs and welcomes domestic and international partners for collaboration in developing new lightning arrester products. Our products are well-established in European, South American, African, and Middle Eastern markets, earning high customer praise for their quality.

670V Rated Voltage 20kA Max Discharge Current DC Surge Protector PCB Mounted SPD for Inverter Protection
Certifications

Our company holds ISO9001 certification, and our products have passed CE, CB, and TUV type testing.

670V Rated Voltage 20kA Max Discharge Current DC Surge Protector PCB Mounted SPD for Inverter Protection
Frequently Asked Questions
Q: Are you a manufacturer or trading company?
A: We are a manufacturer of SPDs with more than 17 years of experience.
Q: Do you have any MOQ for order?
A: Minimum order quantity is 1 piece.
Q: What are your payment terms?
A: 30% T/T deposit, balance payment before shipment.
Q: Can you customize products or add my logo?
A: Yes, we offer OEM and ODM services. Please inform us formally before production.
Q: What is the lead time?
A: Sample orders typically take 7-10 business days. Mass production lead time depends on order quantity. We will work to deliver goods promptly based on your requirements.
670V Rated Voltage 20kA Max Discharge Current DC Surge Protector PCB Mounted SPD for Inverter Protection 670V Rated Voltage 20kA Max Discharge Current DC Surge Protector PCB Mounted SPD for Inverter Protection 670V Rated Voltage 20kA Max Discharge Current DC Surge Protector PCB Mounted SPD for Inverter Protection 670V Rated Voltage 20kA Max Discharge Current DC Surge Protector PCB Mounted SPD for Inverter Protection 670V Rated Voltage 20kA Max Discharge Current DC Surge Protector PCB Mounted SPD for Inverter Protection
