High Efficiency Automatic Ultrasonic Cleaning Machine 0.6MPa For Metal Components
High Efficiency Automatic Ultrasonic Cleaning Machine 0.6MPa For Metal Components
High Efficiency Automatic Ultrasonic Cleaning Machine 0.6MPa For Metal Components
High Efficiency Automatic Ultrasonic Cleaning Machine 0.6MPa For Metal Components
Specifications
Brand Name :
Hongshun
Model Number :
HS-5344AFG
Certification :
CCC/CE
Place of Origin :
Guangdong
MOQ :
1 set
Price :
$20,000 to $40,000
Payment Terms :
L/C,T/T
Supply Ability :
5 sets/month
Delivery Time :
25 days
Packaging Details :
film
Applications :
metal components
 compressed air :
Pressure 0.4~0.6MPa
Equipment capacity :
800-1200 parts/hour
Power supply :
380±10%/50HZ
Ultrasonic frequency :
28-40 KHZ
Tank volume :
About 160L
Description

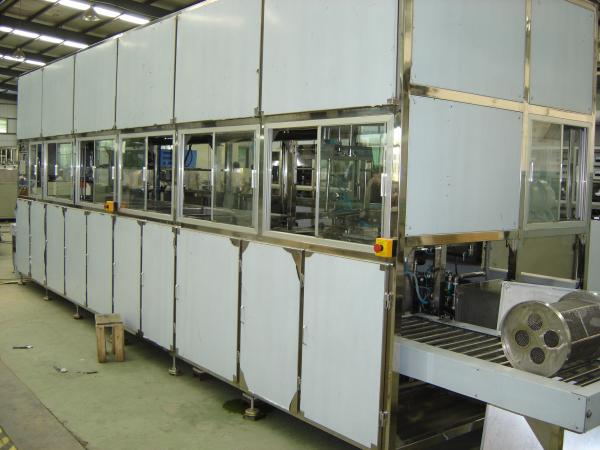

High-efficiency Automatic Vacuum Hydrocarbon Cleaning And Drying Processing Line for mass production

High-efficiency Automatic Vacuum Hydrocarbon Cleaning And Drying Processing Line Overview:

This high-efficiency automatic vacuum hydrocarbon cleaning and drying processing line is built for mass production, handling 800-1200 parts/hour with consistent precision. Its sealed vacuum system uses eco-friendly hydrocarbons to dissolve oils, greases, and contaminants from metal components, paired with ultrasonic waves (28-40kHz) for deep cleaning in crevices.
The integrated drying stage removes moisture in 3-5 minutes via hot air circulation, ensuring parts are ready for assembly. With solvent recovery (96% reuse rate) and energy-saving design, it cuts operational costs by 45%. PLC-controlled for easy integration into production lines, it’s ideal for automotive, hardware, and electronics manufacturers needing high throughput without compromising cleaning quality.

Requirements for High-efficiency Automatic Vacuum Hydrocarbon Cleaning And Drying Processing Line moving, layout and installation

order number

project

requirement

method of attachment

point of junction

1

Equipment moved in

The entrance is at least 2.6m wide and 3m high

2

Site of placement

Indoor temperature 0~40℃, ventilation and light

3

Installation and layout

At least 1m of maintenance space should be reserved around the equipment

4

main power source

Three phases, 50Hz, 380V, total electrical power about 51Kw

Cabinet switch terminals

5

compressed air

Pressure 0.4~0.6MPa, 400NL/min (customer provided)

Gauge φ 12mm

On top or side of the cleaning machine

6

cooling-water machine

12hp (air-cooled) three-phase 380V

Gauge φ51mm

Top or side of the washing machine

7

exhaust

About 900m³/H (the equipment has built-in exhaust fan, and the customer implements the exhaust pipe construction and connection from the equipment to the outdoor)

Pin φ150mm

On top of the cleaning machine

For a complete technical solution Of High-efficiency Automatic Vacuum Hydrocarbon Cleaning And Drying Processing Line, please contact me. We will customize the design based on your product technical requirements and factory layout.

Our typical customers:

High Efficiency Automatic Ultrasonic Cleaning Machine 0.6MPa For Metal Components High Efficiency Automatic Ultrasonic Cleaning Machine 0.6MPa For Metal Components

About Us:

Dongguan Hongshun Automation Equipment Co., Ltd. is located in Dongguan City, the global manufacturing capital. It is a professional manufacturer of high-precision surface treatment equipment. Its main products include: We offer a full range of ultrasonic cleaning equipment, vacuum hydrocarbon cleaning machines, high-pressure spray cleaning machines, spraying lines, passivation acid washing equipment, anodizing equipment, electroplating equipment, industrial pure water machines, reclaimed water reuse equipment, tunnel drying furnaces and their peripheral supporting equipment and consumables, etc. We provide turnkey surface treatment projects for our customers. The company integrates independent research and development, production and manufacturing, installation and training, and after-sales service. It also has a complete quality management system and strong technical strength.
