Fully Automatic Hydrocarbon Cleaning System Vacuum Hydrocarbon Cleaner 50kHz For Valves Fast Cycle
Fully Automatic Hydrocarbon Cleaning System Vacuum Hydrocarbon Cleaner 50kHz For Valves Fast Cycle
Specifications
Brand Name :
Hongshun
Model Number :
HS-6524AFG
Certification :
CCC/CE
Place of Origin :
Guangdong
MOQ :
1 set
Price :
$20,000 to $40,000
Payment Terms :
L/C,T/T
Supply Ability :
5 sets / month
Delivery Time :
35 days
Packaging Details :
film
Applications :
Valves
The Cleaning medium :
Hydrocarbon solvents
Work rhythm :
5-7min / basket
Power supply :
380±10%/50HZ
Ultrasonic frequency :
30-50 kHz
drying time :
4 minutes
Description

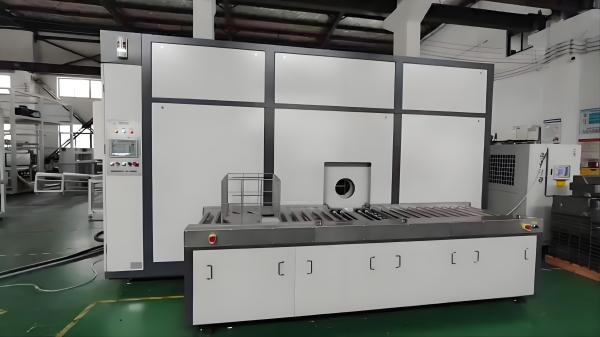

Fully Automatic Hydrocarbon Cleaner Vacuum System for Valves Fast Cycle

Automatic Hydrocarbon Cleaner Overview:

This fully automatic hydrocarbon cleaner vacuum system is engineered for valves, emphasizing fast-cycle efficiency. Its 3-stage process—ultrasonic wash, vacuum rinse, and drying—removes hydraulic oil, scale, and debris from valve bodies, seats, and ports in just 8 minutes, 40% quicker than standard systems.​
The sealed vacuum chamber ensures hydrocarbon solvents penetrate tight valve crevices, while adjustable pressure (0.5-2bar) adapts to brass, steel, or plastic valves. With a 96% solvent recovery rate, it cuts operational costs, and PLC control enables 200+ valves/hour throughput.​
Post-cleaning, vacuum drying eliminates moisture in 2 minutes, preventing internal corrosion. As a European valve manufacturer noted, “It reduced our cleaning time by half while boosting valve seal precision.” Another client added, “The fast cycle let us scale production by 30% without quality drops.” Ideal for manufacturers needing rapid, consistent cleaning to meet deadlines without compromising performance.

Operation steps and cleaning process table of Automatic Hydrocarbon Cleaner For Reference :

order number

Process name

Washing method

The Cleaning medium

Cleaning conditions

Time Settings

remarks

1

Put the parts into the washing basket

/

/

/

/

manipulator

2

The basket into the device

/

/

/

/

Automatic

3

1# Atmospheric degassing cleaning

Degassing + ultrasonic (40KHz 1800W)

Hydrocarbon solvents

Room temperature ~50℃

Less than 5 minutes

Automatic

4

2# Atmospheric degassing cleaning

Vacuum degassing + ultrasonic (40KHz 1800W)

Hydrocarbon solvents

Room temperature ~50℃

Less than 5 minutes

Automatic

5

3# Atmospheric degassing cleaning

Vacuum degassing + ultrasonic (40KHz 1800W)

Hydrocarbon solvents

Room temperature ~50℃

Less than 5 minutes

Automatic

6

4# vacuum drying

Steam bath and drying

Hydrocarbon vapors

90~100℃

Less than 5 minutes

Automatic

7

5# vacuum drying

Steam bath and drying

Hydrocarbon vapors

90~100℃

Less than 5 minutes

Automatic

8

Unloading basket from equipment

/

/

/

/

Automatic

9

Taken the parts out of the washing basket

/

/

/

/

manipulator

For a complete technical solution Of Vacuum Hydrocarbon Line, please contact me. We will customize the design based on your product technical requirements and factory layout.
