Fully Auto Hydrocarbon Washing Machine For Automotive Parts Fast Degreasing
Fully Auto Hydrocarbon Washing Machine For Automotive Parts Fast Degreasing
Specifications
Brand Name :
Hongshun
Model Number :
HS-6434AFG
Certification :
CCC/CE
Place of Origin :
Guangdong
MOQ :
1 set
Price :
$20,000 to $40,000
Payment Terms :
L/C,T/T
Supply Ability :
5 sets / month
Delivery Time :
35 days
Packaging Details :
film
Applications :
Automotive Parts
 Running noise :
Less than 85dB
Work rhythm :
5-7min / basket
Power supply :
380±10%/50HZ
Ultrasonic frequency :
28-40 KHZ
drying time :
4 minutes
Description

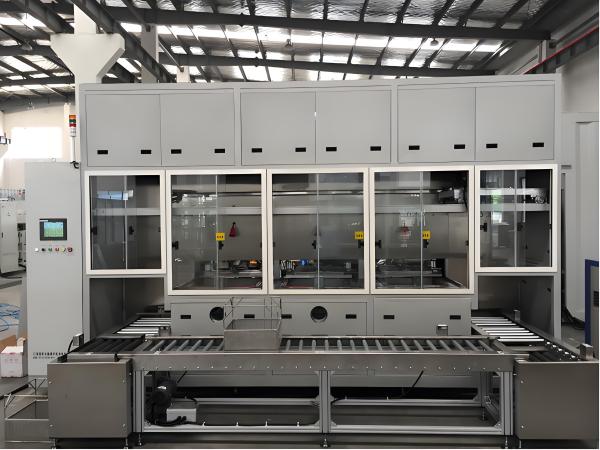

Fully Auto Vacuum Hydrocarbon Washer for Automotive Parts Fast Degreasing

Fully Auto Vacuum Hydrocarbon Washer Overview:

This fully auto vacuum hydrocarbon washer specializes in fast degreasing for automotive parts, tackling engine components, gears, and brake parts with exceptional efficiency. Its 28-40kHz ultrasonic-enhanced vacuum system dissolves heavy machining oil, grease, and carbon deposits in 3-5 minutes—50% faster than conventional cleaners.​
Equipped with automated conveyor loading, it processes 400-600 parts/hour, ensuring consistent results for high-volume production. The sealed chamber prevents solvent loss, while the 95% solvent recovery system cuts operational costs. Post-cleaning, hot air drying leaves parts moisture-free in 4 minutes, ready for assembly.​
Meeting IATF 16949 standards, it’s ideal for auto manufacturers needing rapid, thorough degreasing to maintain part performance and extend component lifespan. A labor-saving solution that boosts production throughput without compromising cleanliness.

Requirements for Fully Auto Vacuum Hydrocarbon Washer:

order number

project

requirement

method of attachment

point of junction

1

Equipment moved in

The entrance is at least 2.6m wide and 3m high

2

Site of placement

Indoor temperature 0~40℃, ventilation and light

3

Installation and layout

At least 1m of maintenance space should be reserved around the equipment

4

main power source

Three phases, 50Hz, 380V, total electrical power about 51Kw

Cabinet switch terminals

5

compressed air

Pressure 0.4~0.6MPa, 400NL/min (customer provided)

Gauge φ 12mm

On top or side of the cleaning machine

6

cooling-water machine

12hp (air-cooled) three-phase 380V

Gauge φ51mm

Top or side of the washing machine

7

exhaust

About 900m³/H (the equipment has built-in exhaust fan, and the customer implements the exhaust pipe construction and connection from the equipment to the outdoor)

Pin φ150mm

On top of the cleaning machine

For a complete technical solution Of Fully Auto Vacuum Hydrocarbon Washer, please contact me. We will customize the design based on your product technical requirements and factory layout.

Our typical customers:

Fully Auto Hydrocarbon Washing Machine For Automotive Parts Fast Degreasing Fully Auto Hydrocarbon Washing Machine For Automotive Parts Fast Degreasing

About Us:

Dongguan Hongshun Automation Equipment Co., Ltd. is located in Dongguan City, the global manufacturing capital. It is a professional manufacturer of high-precision surface treatment equipment. Its main products include: We offer a full range of ultrasonic cleaning equipment, vacuum hydrocarbon cleaning machines, high-pressure spray cleaning machines, spraying lines, passivation acid washing equipment, anodizing equipment, electroplating equipment, industrial pure water machines, reclaimed water reuse equipment, tunnel drying furnaces and their peripheral supporting equipment and consumables, etc. We provide turnkey surface treatment projects for our customers. The company integrates independent research and development, production and manufacturing, installation and training, and after-sales service. It also has a complete quality management system and strong technical strength.
