Bullet Casings Hydrocarbon Cleaning Machine Roller Baskets Surface Treatment Line
Bullet Casings Hydrocarbon Cleaning Machine Roller Baskets Surface Treatment Line
Bullet Casings Hydrocarbon Cleaning Machine Roller Baskets Surface Treatment Line
Bullet Casings Hydrocarbon Cleaning Machine Roller Baskets Surface Treatment Line
Specifications
Brand Name :
Hongshun
Model Number :
HS-6568AFG
Certification :
CCC/CE
Place of Origin :
Guangdong
MOQ :
1 set
Price :
$20,000 to $40,000
Payment Terms :
L/C,T/T
Supply Ability :
5 sets / month
Delivery Time :
35 days
Packaging Details :
film
Applications :
Stamping Factories
The Cleaning medium :
Hydrocarbon solvents
Work rhythm :
5-7min / basket
Power supply :
380±10%/50HZ
Ultrasonic frequency :
30-50 kHz
drying time :
4 minutes
Steam generator :
300L
Description

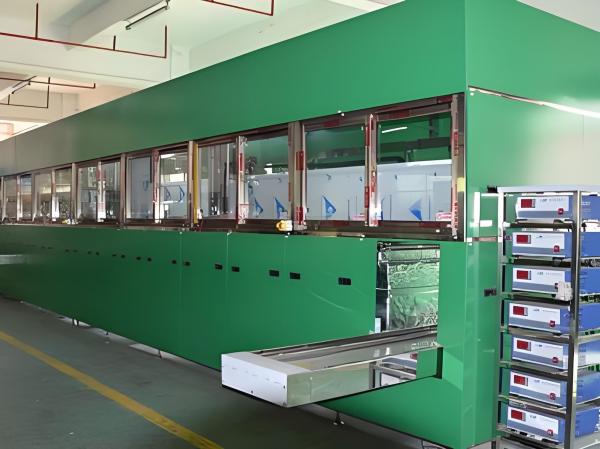

vacuum ultrasonic hydrocarbon cleaning machine with roller baskets for bullet casings, thoroughly removing oil and ensuring dryness

vacuum ultrasonic hydrocarbon cleaning machine Overview:

This vacuum ultrasonic hydrocarbon cleaning machine, featuring roller baskets, specializes in bullet casings—focused on thorough oil removal and guaranteed dryness. 30-50kHz ultrasonic waves, paired with high-purity hydrocarbons, dissolve machining oil, lubricants, and gunpowder residues from casing walls and primer pockets, leaving no residue.​

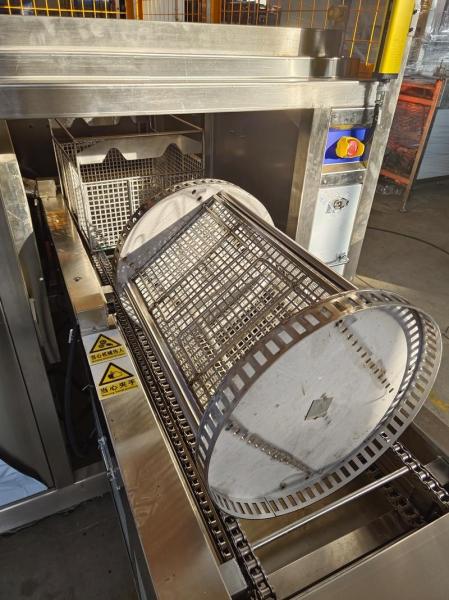

The rotating roller baskets (10-15rpm) agitate casings, ensuring every surface contacts solvents for complete oil elimination. Post-cleaning, a dual-stage drying system combines vacuum suction and 65℃ hot air, eliminating 100% moisture in 3 minutes to prevent corrosion.​
Processing 800-1000 casings/hour, it’s trusted by ammunition producers. A defense contractor stated, “Oil-free, dry casings reduced misfires by 30%.” With 95% solvent recovery, it balances deep cleaning efficiency and cost, ensuring pristine, dry bullet casings for reliable performance.

vacuum ultrasonic hydrocarbon cleaning machine specification for reference

order number

project

description

1

device name

vacuum ultrasonic hydrocarbon cleaning machine

2

unit type

HS-6568AFG

3

run mode

The robot hand carries the basket, puts and extracts parts, and the parts are cleaned automatically and continuously

4

Tank size

(W)650*(D)580*(H)550mm

5

Tank volume

About 160L

6

manipulator

One set of robot arms

7

Steam generator

300L

8

Distillation recovery unit

300L

9

cooling-water machine

Air-cooled industrial chiller (15HP)

10

Cool the material

250W multi-wing fan

11

fan

400W multi-wing fan

12

character of service

Allow 20h/day

13

Work rhythm

5-7min (adjustable-reference value)

14

Running noise

Less than 85dB (at 2 meters around the equipment)

15

Maximum temperature of the shell

<45°C (except for visible doors and Windows), high temperature parts are insulated and protected

16

ultrasonic frequency

40KHz(1.2# Slot) / 40KHz (slot 3)

17

Total ultrasonic power

1.8KWx3=5.4kW

18

Total electrical power

3 phase 380V, about 75KW (excluding chiller power)

19

Average power consumption

About 40-50Kw (power consumption during normal use after the temperature has reached the set value)

20

tri coloured lantern

Red-fault, yellow-alarm prompt, green-automatic operation

21

Standard color of equipment

Framework: White computer

Control cabinet: orange yellow

Outer packaging door panel: computer white

Or accept customer customization of equipment color

22

Overall size of the machine

Excluding tracks, chillers and top exhaust: (L) 6000 * (W) 3200 * (H) 2700mm

Note: the floor area should be left with a maintenance space of no less than 1 meter

23

production cycle

60 days after receipt of deposit (excluding holidays)

24

Place of delivery

In the customer's factory

For a complete technical solution Of vacuum ultrasonic hydrocarbon cleaning machine, please contact me. We will customize the design based on your product technical requirements and factory layout.
