Vertical Powder Coating Production Line Equipment For Aluminum Profiles
Vertical Powder Coating Production Line Equipment For Aluminum Profiles
Vertical Powder Coating Production Line Equipment For Aluminum Profiles
Vertical Powder Coating Production Line Equipment For Aluminum Profiles
Specifications
Brand Name :
Hongshun
Model Number :
HS-7500VPQ
Certification :
CCC/CE
Place of Origin :
Guangdong
MOQ :
1 set
Price :
$400,000 to $600,000
Payment Terms :
L/C,T/T
Supply Ability :
5 sets/month
Delivery Time :
60 days
Packaging Details :
film
Applications :
Aluminum Profiles
conveyor speed :
1-5m/min
Maximum workpiece weight :
60KG
Power supply :
380±10%/50HZ
Weight of standard workpiece :
3KG
Description

Vertical Powder Coating Production Line Equipment For Aluminum Profiles,Include loading, Pre-treatment, Dehydration And Drying, Powder Coating, Curing, Unloading


Vertical Powder Coating Production Line Overview:

The Aluminum Profile Vertical Powder Coating Production Line Equipment delivers efficient, high-quality surface finishing for aluminum profiles through a streamlined vertical workflow. This comprehensive system integrates key stages: automated loading, thorough pre-treatment to remove contaminants, dehydration drying to ensure surface readiness, precise powder coating application, curing for durable adhesion, and automated unloading—optimizing productivity for high-volume production.

Designed specifically for aluminum profiles, it ensures uniform powder coverage even on complex profiles, enhancing corrosion resistance and aesthetic appeal. The vertical design saves floor space while enabling consistent coating thickness across long or irregularly shaped profiles.

Ideal for architectural, automotive, and construction aluminum components, it balances efficiency with quality, reducing waste and ensuring batch-to-batch consistency. By streamlining the powder coating process, this line elevates product durability and finish quality, making it a trusted solution for aluminum profile manufacturers.

Project basis

1. Design data

1.1 Painted products: aluminum alloy profiles

1.2 Process Description:

a, Feed, pretreatment, dehydration and drying, powder spraying, curing, discharge

1.3 Coated profiles:

a. Maximum workpiece size: 200mm × 200mm × H7000mm

b. Maximum workpiece weight: 60KG

c. Weight of standard workpiece: 3KG

d. Standard workpiece average surface area: 1.2m2/ branch

e. Standard speed of conveyor chain: 3500mm/min (1000mm/min--5000mm/min variable frequency adjustable)

Energy consumption reference of Vertical Powder Coating Production Line:

SN.

device name

Maximum installed capacity

Maximum gas supply

( natural gas )

1.

conveyer system

6KW/H

2.

pretreatment

61KW/H

3.

Drying oven (proportion combustion machine) 1 set

15KW/H

30M³/H

4.

Spraying system (1 set)

75W/H

5.

Curing furnace (proportion combustion machine) 1

15KW/H

90M³/H

6.

Elevator, upper and lower material conveying mechanism

12KW/H

7.

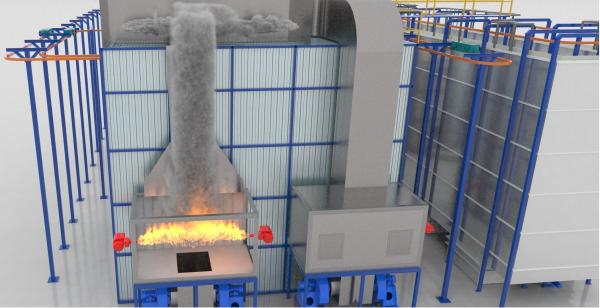

Floc incineration unit (2 burners)

23KW/H

25M³/H

8.

amount

207KW/H

145M³/H



For a complete technical solution Of Vertical Powder Coating Production Line Equipment For Aluminum Profiles, please contact me. We will customize the design based on your product technical requirements and factory layout.


Our typical customers:

Vertical Powder Coating Production Line Equipment For Aluminum Profiles

Vertical Powder Coating Production Line Equipment For Aluminum Profiles


About Us:

Dongguan Hongshun Automation Equipment Co., Ltd. is located in Dongguan City, the global manufacturing capital. It is a professional manufacturer of high-precision surface treatment equipment. Its main products include: We offer a full range of ultrasonic cleaning equipment, vacuum hydrocarbon cleaning machines, high-pressure spray cleaning machines, spraying lines, passivation acid washing equipment, anodizing equipment, electroplating equipment, industrial pure water machines, reclaimed water reuse equipment, tunnel drying furnaces and their peripheral supporting equipment and consumables, etc. We provide turnkey surface treatment projects for our customers. The company integrates independent research and development, production and manufacturing, installation and training, and after-sales service. It also has a complete quality management system and strong technical strength.
