Eco-Friendly Vertical Powder Coating Machine for Aluminum Profiles
Eco-Friendly Vertical Powder Coating Machine for Aluminum Profiles
Eco-Friendly Vertical Powder Coating Machine for Aluminum Profiles
Eco-Friendly Vertical Powder Coating Machine for Aluminum Profiles
Specifications
Brand Name :
Hongshun
Model Number :
HS-3800VPQ
Certification :
CCC/CE
Place of Origin :
Guangdong
MOQ :
1 set
Price :
$400,000 to $600,000
Payment Terms :
L/C,T/T
Supply Ability :
5 sets/month
Delivery Time :
65 days
Packaging Details :
film
Applications :
Aluminum Profiles
Pure water Conductivity :
10us/cm
Standard speed of conveyor chain :
3500mm/min (1000mm/min--5000mm/min variable frequency adjustable)
Power supply :
380±10%/50HZ
Weight of standard workpiece :
3KG
Flow rate :
5m3/h
Description

Eco-Friendly Vertical Powder Coating Machine for Aluminum Profiles - Low VOC Emission (CE Approved)

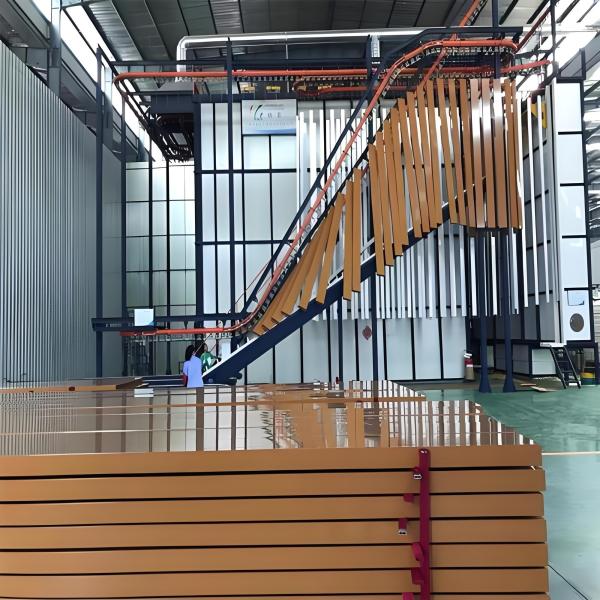

Vertical Powder Coating Machine Overview:

Our Eco-Friendly Vertical Powder Coating Machine is engineered for aluminum profile manufacturers targeting sustainability and EU market compliance, delivering premium finishes with low VOC emissions and full CE approval.

Designed to minimize environmental impact, it features a low-VOC powder application system that meets strict EU air quality standards—eliminating harmful solvent releases common in liquid coating. The vertical structure optimizes workshop space (saving 35% floor area vs. horizontal models) while ensuring uniform coating on profiles for doors, windows, and curtain walls. Its advanced curing oven uses heat recovery tech to cut energy use by 20%, and the electrostatic spray system achieves 96% powder utilization, reducing waste.

As a CE-approved solution, it aligns with EU safety and environmental directives, removing import barriers. For manufacturers prioritizing eco-responsibility, cost efficiency, and high-quality aluminum profile finishes, this machine is a reliable choice for accessing European and global green-focused markets.

Principles Of Vertical Powder Coating Machine:

1. In the production line, self-made equipment should adopt general parts and standard parts in the structural design as far as possible to improve the degree of automation, and fully consider the improvement of production working environment and labor health conditions, and implement the relevant national and industrial standards and safety measures;

2. The overall layout design of the production line considers the rationality of the whole production line process, the coordination and neatness of the equipment layout, the beauty, the convenience of operation and maintenance;

Energy consumption reference of Vertical Powder Coating Machine:

SN.

device name

Maximum installed capacity

Maximum gas supply

( natural gas )

1.

conveyer system

6KW/H

2.

pretreatment

61KW/H

3.

Drying oven (proportion combustion machine) 1 set

15KW/H

30M³/H

4.

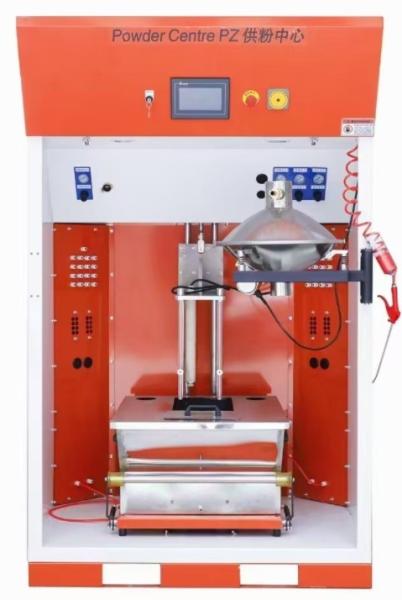

Spraying system (1 set)

75W/H

5.

Curing furnace (proportion combustion machine) 1

15KW/H

90M³/H

6.

Elevator, upper and lower material conveying mechanism

12KW/H

7.

Floc incineration unit (2 burners)

23KW/H

25M³/H

8.

amount

207KW/H

145M³/H



For a complete technical solution Of Vertical Powder Coating Machine For Aluminum Profiles, please contact me. We will customize the design based on your product technical requirements and factory layout.


Our typical customers:

Eco-Friendly Vertical Powder Coating Machine for Aluminum Profiles

Eco-Friendly Vertical Powder Coating Machine for Aluminum Profiles


About Us:

Dongguan Hongshun Automation Equipment Co., Ltd. is located in Dongguan City, the global manufacturing capital. It is a professional manufacturer of high-precision surface treatment equipment. Its main products include: We offer a full range of ultrasonic cleaning equipment, vacuum hydrocarbon cleaning machines, high-pressure spray cleaning machines, spraying lines, passivation acid washing equipment, anodizing equipment, electroplating equipment, industrial pure water machines, reclaimed water reuse equipment, tunnel drying furnaces and their peripheral supporting equipment and consumables, etc. We provide turnkey surface treatment projects for our customers. The company integrates independent research and development, production and manufacturing, installation and training, and after-sales service. It also has a complete quality management system and strong technical strength.
