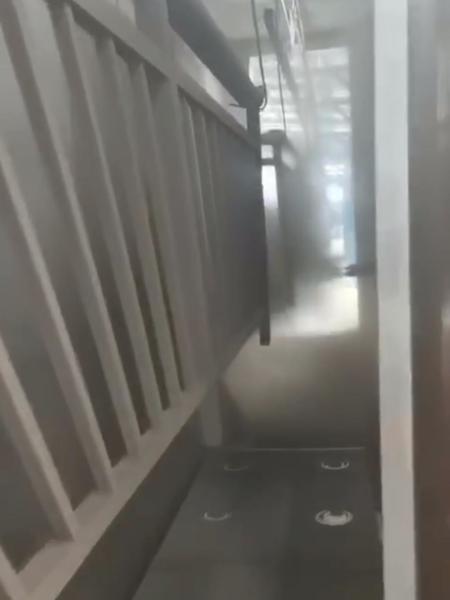

Industrial Electrostatic Powder Coating Line Low Noise High Efficiency For Metal Parts
Industrial Electrostatic Powder Coating Line Low Noise High Efficiency For Metal Parts
Industrial Electrostatic Powder Coating Line Low Noise High Efficiency For Metal Parts
Industrial Electrostatic Powder Coating Line Low Noise High Efficiency For Metal Parts
Specifications
Brand Name :
Hongshun
Model Number :
HS-H560CPP
Certification :
CCC/CE
Place of Origin :
Dongguan
MOQ :
1 set
Price :
$50000-100000/Set
Payment Terms :
L/C,T/T
Supply Ability :
5 sets/month
Delivery Time :
50 days
Packaging Details :
film
Workpiece name :
Heavy - duty Industrial Equipment
Maximum workpiece size can be used :
L4000*W800*H2000mm maximum product size
Control :
PLC
moving speed :
0.5 - 3m/min
Control the power :
Single phase AC220V-50Hz single phase + ground wire
Drive Power :
Three-phase AC380V-50Hz three-phase five-wire system
Description

Robust Conveyor - based Automatic Powder Coating System for Heavy - duty Industrial Equipment

Automatic Powder Coating System Overview:

Our conveyor - based automatic powder coating system is engineered for heavy - duty industrial equipment. With a high - load - capacity conveyor belt moving at 0.5 - 3m/min, it can handle large parts up to 500kg. The electrostatic spraying technology ensures a 95% powder utilization rate, reducing waste. Its modular structure allows for easy integration of additional pretreatment or curing zones. Ideal for coating industrial machinery, cranes, and large - scale metal structures, this system offers fast, uniform coating, enhancing product durability and extending service life.

Partial parameter description of Automated Powder Coating Line

Design basis:

Workpiece name

Heavy - duty Industrial Equipment

Maximum workpiece size can be used

L4000*W1000*H1800mm maximum product size

Workpiece material

Metal parts

Process speed

3m/min

running speed

0-6m/min adjustable

Conveyor

460 orbit

Chain length

Heavy 5T chain 480m

Hanging fixture spacing

150mm

driving mode

Dual drive 4kw *2 units

Baking method

Combustion heater system + circulation fan

Dehydrator furnace temperature

Room temperature--250℃ adjustable

Temperature of the curing furnace

Room temperature--250℃ adjustable

electrical parameter

Power supply AC380V-50Hz three-phase five-wire system

dynamic electricity

Three-phase AC380V-50Hz three-phase five-wire system

Control the power

Single phase AC220V-50Hz single phase + ground wire

For a complete technical solution of Automatic Powder Coating System, please contact me. We will customize the design based on your product technical requirements and factory layout.

Process flow of Automated Powder Coating Line:

Loading⇒ Spray pre-degreasing and residue removal⇒main degreasing by swimming + ultrasonic + heating cleaning ⇒ Spray water washing (I) ⇒ Spray water washing (II) ⇒ Activation by swimming ⇒ spray washing (3) ⇒ spray washing (4), swim lay type passivation, spray washing (5) ⇒ spray washing (6) ⇒ pure water cleaning + adjustable automatic blow water, drop of water, dehydration drying furnace, natural cooling, online roast ⇒ under a belt anti-pull installation baked ⇒ on a PP board make automatic coating powder spraying cabinet⇒ hurricane recovery Powder supply center ⇒ Secondary recovery system ⇒ Grinding cabinet ⇒ Curing oven drying ⇒ Natural cooling⇒ QC inspection ⇒ Unloading ⇒ Packaging

Power list of Automatic Powder Coating System

Fully automatic powder coating line: three-phase 380V/50Hz

The total power demand is about 125KW/H

Suspended conveyor

4KW * 2 units =8kw

Pre-oil removal

2.2KW*1

The swimming type main oil removal

3KW * 10 ultrasonic units

Water spray

2.2KW*7 sets = 15.4KW

Conveyor belt

0.75KW*2 sets =1.5kw

Smoke exhaust

7.5kw

The circulating fan of the drying furnace

7.5KW * 1 unit

Power of circulating fan in curing furnace

5.5KW * 2 units =11

The fan of the powder cabinet

30kw

Air compressor 50 HP 37kw (installed by customer)

Note: 1) The customer shall provide the 1-inch water pipe for tap water, the drainage pipe of more than 3 inches and install it to the designated interface

2) Main power supply: the line is arranged to the main switch of the control cabinet of this machine

Our typical customers:

Industrial Electrostatic Powder Coating Line Low Noise High Efficiency For Metal PartsIndustrial Electrostatic Powder Coating Line Low Noise High Efficiency For Metal Parts Industrial Electrostatic Powder Coating Line Low Noise High Efficiency For Metal Parts

This production line is dedicated to the surface treatment of aluminum products

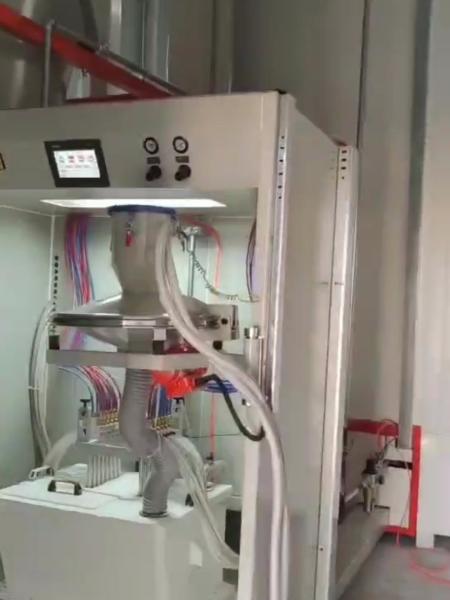

TheAutomatic Powder Coating System consists of an automatic pretreatment system, a hanging conveying system, a dehydration furnace and a drying curing furnace (heating system), an automatic powder recovery cabinet, a large cyclone, a secondary recovery system, a two-dimensional reciprocating machine, a grating recognition system, an isolation room, air ducts, a sample cabinet, two PVC conveying curing furnace lines, and a PLC programming centralized electrical control system
