Customizable Automated Powder Coating Plant with 3D Spraying Function for Complex - shaped Products

Automatic Powder Coating Plant Overview:

Our customizable automated powder coating plant is equipped with a 3D spraying function, enabling uniform coating on complex - shaped products. Using advanced robotic arms, it can spray at angles from 0° - 360°, covering every corner. The coating thickness can be precisely set between 30 - 150μm. With a modular structure, it can be tailored to different production requirements. Whether it's automotive interior components, aerospace parts, or artistic sculptures, this plant guarantees a high - quality, consistent finish.

Partial parameter description of Automated Powder Coating Plant

Features of the quick color change system:

The quick color change system is a new and economical quick color change system. It takes about 20 minutes to clean the spray booth and complete the color change.

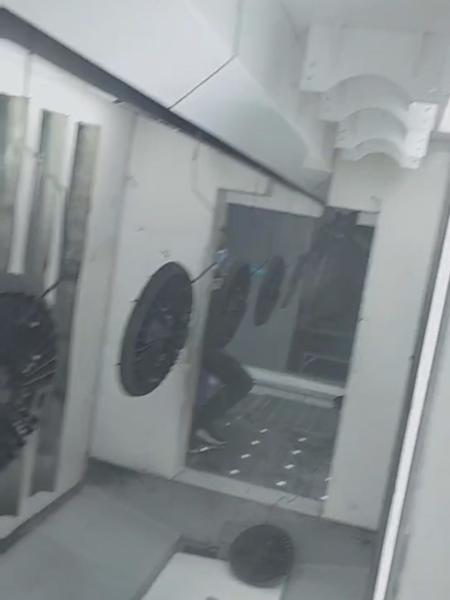

The spray booth system consists of the following parts:

1. Sandwich structure of engineering plastic spray chamber: The spray chamber adopts 120mm sandwich PP engineering plastic plate structure,

2. With self-cleaning function, high separation efficiency of the large cyclone + rear filter secondary recovery system,

Powder bucket powder supply system of cleaning system: negative pressure is completed by connecting with the large cyclone pipe to save powder;

Unique bottom automatic flip structure: ensure uniform and clean negative pressure at the bottom

The bottom of the spray chamber is equipped with automatic cleaning air knife, no residual powder;

The large cyclone hopper adopts integrated powder pump and is easy to clean;

The powder supply center adopts a touch screen digital display control system

For a complete technical solution of Automatic Powder Coating System, please contact me. We will customize the design based on your product technical requirements and factory layout.

Process flow of Automated Powder Coating Plant:

Loading⇒ Spray pre-degreasing and residue removal⇒main degreasing by swimming + ultrasonic + heating cleaning ⇒ Spray water washing (I) ⇒ Spray water washing (II) ⇒ Activation by swimming ⇒ spray washing (3) ⇒ spray washing (4), swim lay type passivation, spray washing (5) ⇒ spray washing (6) ⇒ pure water cleaning + adjustable automatic blow water, drop of water, dehydration drying furnace, natural cooling, online roast ⇒ under a belt anti-pull installation baked ⇒ on a PP board make automatic coating powder spraying cabinet⇒ hurricane recovery Powder supply center ⇒ Secondary recovery system ⇒ Grinding cabinet ⇒ Curing oven drying ⇒ Natural cooling⇒ QC inspection ⇒ Unloading ⇒ Packaging

Power list of Automatic Powder Coating Plant

Our typical customers:

Company profile :

Dongguan Hongshun Automation Equipment Co., Ltd. is located in Dongguan City, the global manufacturing capital. It is a professional manufacturer of high-precision surface treatment equipment. Its main products include: We offer a full range of ultrasonic cleaning equipment, vacuum hydrocarbon cleaning machines, high-pressure spray cleaning machines, spraying lines, passivation acid washing equipment, anodizing equipment, electroplating equipment, industrial pure water machines, reclaimed water reuse equipment, tunnel drying furnaces and their peripheral supporting equipment and consumables, etc. We provide turnkey surface treatment projects for our customers. The company integrates independent research and development, production and manufacturing, installation and training, and after-sales service. It also has a complete quality management system and strong technical strength.
