Fully Automatic Powder Coating Production Line Adjustable Speed For Aluminum Parts
Fully Automatic Powder Coating Production Line Adjustable Speed For Aluminum Parts
Fully Automatic Powder Coating Production Line Adjustable Speed For Aluminum Parts
Fully Automatic Powder Coating Production Line Adjustable Speed For Aluminum Parts
Specifications
Brand Name :
Hongshun
Model Number :
HS-6240CPP
Certification :
CCC/CE
Place of Origin :
Dongguan
MOQ :
1 set
Price :
$50000-100000/Set
Payment Terms :
L/C,T/T
Supply Ability :
5 sets/month
Delivery Time :
50 days
Packaging Details :
film
Workpiece name :
Aluminum products
Maximum workpiece size can be used :
L4000*W500*H1200mm maximum product size
Process speed :
3m/min
Chain length :
Heavy 5T chain 480m
Hanging fixture spacing :
150mm
Control the power :
Single phase AC220V-50Hz single phase + ground wire
Drive Power :
Three-phase AC380V-50Hz three-phase five-wire system
Description

Fully automatic cleaning and powder spraying coating production line, aluminum parts surface treatment equipment,Electrostatic powder coating production line

I. Design conceptual of the automated line and main equipment:

This production line is dedicated to the surface treatment of aluminum products

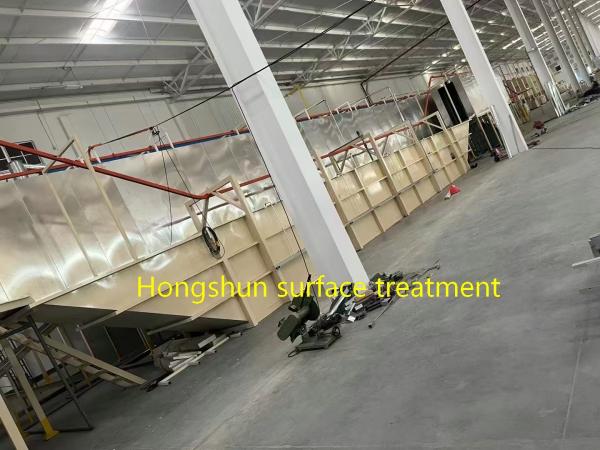

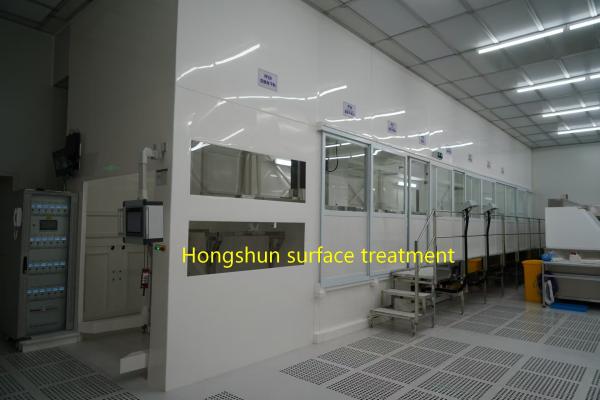

The automatic coating production line consists of an automatic pretreatment system, a hanging conveying system, a dehydration furnace and a drying curing furnace (heating system), an automatic powder recovery cabinet, a large cyclone, a secondary recovery system, a two-dimensional reciprocating machine, a grating recognition system, an isolation room, air ducts, a sample cabinet, two PVC conveying curing furnace lines, and a PLC programming centralized electrical control system

II. Design basis:

Workpiece name

Aluminum products

Maximum workpiece size can be used

L4000*W500*H1200mm maximum product size

Workpiece material

Aluminum parts

Process speed

3m/min

running speed

0-6m/min adjustable

Conveyor

460 orbit

Chain length

Heavy 5T chain 480m

Hanging fixture spacing

150mm

driving mode

Dual drive 4kw *2 units

Baking method

Combustion heater system + circulation fan

Dehydrator furnace temperature

Room temperature--250℃ adjustable

Temperature of the curing furnace

Room temperature--250℃ adjustable

electrical parameter

Power supply AC380V-50Hz three-phase five-wire system

dynamic electricity

Three-phase AC380V-50Hz three-phase five-wire system

Control the power

Single phase AC220V-50Hz single phase + ground wire

3. Process flow

1. Automatic line powder coating process

Loading⇒ Spray pre-degreasing and residue removal⇒main degreasing by swimming + ultrasonic + heating cleaning ⇒ Spray water washing (I) ⇒ Spray water washing (II) ⇒ Activation by swimming ⇒ spray washing (3) ⇒ spray washing (4), swim lay type passivation, spray washing (5) ⇒ spray washing (6) ⇒ pure water cleaning + adjustable automatic blow water, drop of water, dehydration drying furnace, natural cooling, online roast ⇒ under a belt anti-pull installation baked ⇒ on a PP board make automatic coating powder spraying cabinet⇒ hurricane recovery Powder supply center ⇒ Secondary recovery system ⇒ Grinding cabinet ⇒ Curing oven drying ⇒ Natural cooling⇒ QC inspection ⇒ Unloading ⇒ Packaging
