Economical Vertical Powder Coating System for Aluminum Profiles
Economical Vertical Powder Coating System for Aluminum Profiles
Specifications
Brand Name :
Hongshun
Model Number :
HS-4000VPQ
Certification :
CCC/CE
Place of Origin :
Guangdong
MOQ :
1 set
Price :
$280,000 to $350,000
Payment Terms :
L/C,T/T
Supply Ability :
5 sets/month
Delivery Time :
65 days
Packaging Details :
film
Applications :
Aluminum Profiles
Maximum workpiece size :
200mm × 200mm × H6000mm
Standard speed of conveyor chain :
3500mm/min (1000mm/min--5000mm/min variable frequency adjustable)
Power supply :
380±10%/50HZ
Weight of standard workpiece :
3KG
Pre-treatment pump :
Mei Bao
Pre-treat PP board :
Low temperature resistant PP board
Description

Economical Vertical Powder Coating System for Aluminum Profiles (Suitable for SEA Small-Medium Factories)

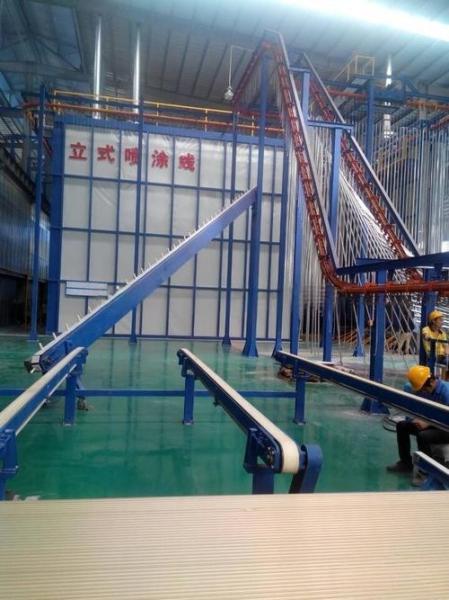

Vertical Powder Coating Production System Overview:

Our Economical Vertical Powder Coating System is tailor-made for small-medium factories (SMFs) in Southeast Asia (SEA), balancing affordability, practicality, and reliable performance for aluminum profiles (doors, windows, furniture frames).

Designed to fit SMF budgets, it reduces initial investment by 25% vs. large-scale lines while retaining core functions: automated pre-treatment (tackling SEA’s humid-induced grime), electrostatic powder spraying (90%+ utilization to cut material costs), and a compact curing oven compatible with local 220V/380V power. The vertical layout saves 40% floor space—critical for SEA’s often limited workshop areas—and offers flexible throughput (200-400kg/h) to match SMF production volumes.

Built with corrosion-resistant parts to withstand SEA’s humidity and simplified maintenance (no specialized tech needed for routine checks), it minimizes long-term operational costs. For SEA SMFs seeking to upgrade from manual coating to automated efficiency without overspending, this system delivers consistent, durable finishes—perfect for tapping into the region’s growing construction and furniture markets.

Design principles and characteristics:

1, The “+” shape spray chain passes through the spray room directly, and the workpiece does not need to rotate or install, which can reduce collisions. At the same time, the pneumatic adjustment device between the spray gun and the workpiece can be selected to keep all the spray guns and aluminum profile workpieces at a constant distance.

2, The spray room is made of flame retardant engineering plastic material, which has good insulation performance and can improve the powder rate. Meanwhile, the flame retardant plate is safe and reliable.

3, The engineering plastic spray room has less powder adhesion, and adopts automatic cleaning device. The color change can save about half of the time compared with the traditional vertical line start color change spray room.

... ...

Energy consumption reference of Vertical Powder Coating Production Line:

SN.

device name

Maximum installed capacity

Maximum gas supply

( natural gas )

1.

conveyer system

6KW/H

2.

pretreatment

61KW/H

3.

Drying oven (proportion combustion machine) 1 set

15KW/H

30M³/H

4.

Spraying system (1 set)

75W/H

5.

Curing furnace (proportion combustion machine) 1

15KW/H

90M³/H

6.

Elevator, upper and lower material conveying mechanism

12KW/H

7.

Floc incineration unit (2 burners)

23KW/H

25M³/H

8.

amount

207KW/H

145M³/H



For a complete technical solution Of Vertical Powder Coating Production Line Equipment For Aluminum Profiles, please contact me. We will customize the design based on your product technical requirements and factory layout.


Our typical customers:

Economical Vertical Powder Coating System for Aluminum Profiles

Economical Vertical Powder Coating System for Aluminum Profiles


About Us:

Dongguan Hongshun Automation Equipment Co., Ltd. is located in Dongguan City, the global manufacturing capital. It is a professional manufacturer of high-precision surface treatment equipment. Its main products include: We offer a full range of ultrasonic cleaning equipment, vacuum hydrocarbon cleaning machines, high-pressure spray cleaning machines, spraying lines, passivation acid washing equipment, anodizing equipment, electroplating equipment, industrial pure water machines, reclaimed water reuse equipment, tunnel drying furnaces and their peripheral supporting equipment and consumables, etc. We provide turnkey surface treatment projects for our customers. The company integrates independent research and development, production and manufacturing, installation and training, and after-sales service. It also has a complete quality management system and strong technical strength.
