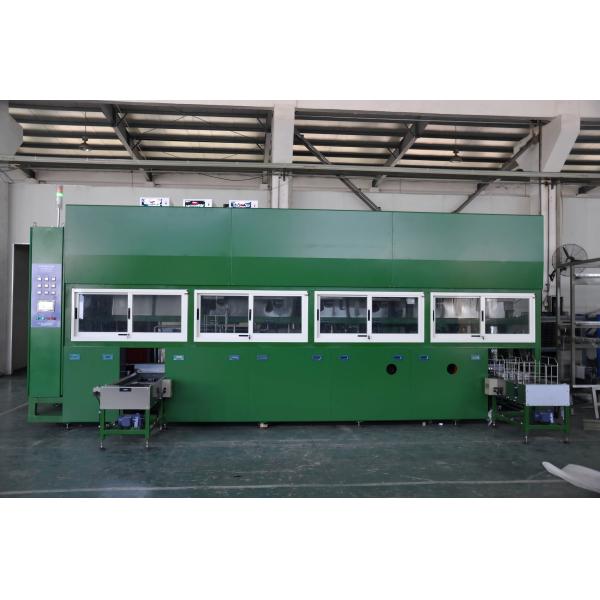

Ultrasonic Vacuum Hydrocarbon Cleaning System for Semiconductor & LCD Substrates
Ultrasonic Vacuum Hydrocarbon Cleaning System for Semiconductor & LCD Substrates
Specifications
Brand Name :
Hongshun
Model Number :
HS-6684MF
Certification :
CCC/CE
Place of Origin :
Guangdong
MOQ :
1 set
Price :
$80,000 to $100,000
Payment Terms :
L/C,T/T
Supply Ability :
5 sets / month
Delivery Time :
55 days
Packaging Details :
film
Applications :
Semiconductor & LCD Substrates
character of service :
Allow 20h/day
Work rhythm :
5-7min / basket
Power supply :
380±10%/50HZ
Ultrasonic frequency :
30-50 kHz
drying time :
5-7 minutes
Description

Ultrasonic Vacuum Hydrocarbon Cleaning System for Semiconductor & LCD Substrates


Overview Of Ultrasonic Vacuum Hydrocarbon Cleaning System:

Our Ultrasonic Vacuum Hydrocarbon Cleaning System is engineered for the ultra-high-purity demands of semiconductor and LCD substrates, delivering residue-free, damage-free cleaning critical for electronic component performance.

It combines two powerful technologies: high-frequency ultrasonics (40-120kHz) that generate micro-bubbles to dislodge submicron contaminants (dust, flux, organic residues) from substrate surfaces and fine circuits, paired with a vacuum hydrocarbon environment that enhances solvent penetration—reaching even narrow gaps without damaging delicate structures. The vacuum also accelerates drying via solvent boiling point reduction, ensuring no watermarks or solvent residues (meeting ISO 14644-1 Class 5 cleanroom standards).

Built with anti-static components and a sealed, contamination-free chamber, it safeguards sensitive substrates during cleaning. Ideal for semiconductor wafer, LCD panel, and microchip manufacturers, this system ensures consistent, high-purity results—critical for maintaining electronic component reliability and yield rates in advanced manufacturing.


Maintenance & After-Sales Support for Ultrasonic Vacuum Hydrocarbon Cleaning System:

We provide comprehensive maintenance and after-sales support for the HS-6684MFG, ensuring long-term reliable operation. The machine comes with a 1-year warranty (starting from final acceptance), covering free repairs and part replacements for faults caused by normal use. Consumables like filter cartridges, sealing,and heaters are excluded but readily available for purchase.


Routine maintenance is straightforward. The circulation filters (10μ/5μ/20μ/50μ) need monthly replacement (≈15 pieces/month) to maintain filtration efficiency. The heat transfer oil in steam generation and distillation units should be changed every 2500 working hours, while vacuum pump lubricating oil requires checking and topping up every 200 hours. The machine’s accessible design—with a 1-meter maintenance clearance requirement—allows technicians to easily access components like pumps, ultrasonic generators, and electrical cabinets.


After-sales response is prompt: upon receiving a fault notification, the company provides a reply within 4 hours. General faults are resolved within 24 hours, complex issues within 48 hours, and major problems are addressed through mutual negotiation. Additionally, free on-site training (≥24 hours) is offered for 2+ operators, covering mechanical/electrical maintenance, operation, programming, and troubleshooting. Two sets of Chinese operation manuals are provided, with English versions available upon request. For customers needing extended support, paid maintenance contracts (e.g., annual inspections) are also offered.


Consumption of Vacuum Hydrocarbon Cleaner Machine for reference:

order number

name

wastage

remarks

1

hydrocarbons

Add as required

It depends on the amount of cleaning

2

Filter cotton core

About 12 per month

Replace as required

3

Heat medium oil

100L/2500 hours

Replace every 2500 hours of work

4

Vacuum pump lubricating oil

0.2L/200 hours

Check and add every 200 hours of work

5

power consumption

About 30kw/hour

average value

6

compressed air

400 NL/min

Drive use (cylinder, pneumatic valve)

For a complete technical solution Of Vacuum Hydrocarbon Cleaner Machine, please contact me. We will customize the design based on your product technical requirements and factory layout.
