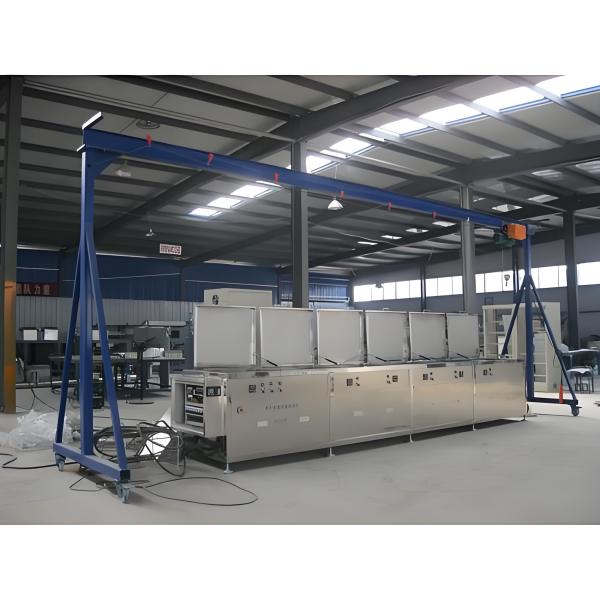

Semi-Automatic Multi-Tank Vacuum Hydrocarbon Cleaning Machine with Hot Air Drying
Semi-Automatic Multi-Tank Vacuum Hydrocarbon Cleaning Machine with Hot Air Drying
Specifications
Brand Name :
Hongshun
Model Number :
HS-6384MF
Certification :
CCC/CE
Place of Origin :
Guangdong
MOQ :
1 set
Price :
$20,000 to $50,000
Payment Terms :
L/C,T/T
Supply Ability :
5 sets / month
Delivery Time :
55 days
Packaging Details :
film
Applications :
precision hardware
Distillation recovery unit :
300L
Work rhythm :
5-7min / basket
Power supply :
380±10%/50HZ
Ultrasonic frequency :
30-50 kHz
drying time :
5-7 minutes
Description

Semi-Automatic Multi-Tank Vacuum Hydrocarbon Cleaning Machine with Hot Air Drying


Overview Of Semi-Automatic Multi-Tank Vacuum Hydrocarbon Cleaning Machine:

Our Semi-Automatic Multi-Tank Vacuum Hydrocarbon Cleaning Machine is engineered for precise, residue-free cleaning of small-to-medium parts—such as precision hardware, electronic components, and automotive bearings—paired with efficient hot air drying for all-in-one processing.

Its multi-tank design enables staged cleaning: pre-washing to remove heavy grime, vacuum-aided hydrocarbon cleaning (utilizing solvent’s strong degreasing power while minimizing evaporation) for deep, blind-hole cleaning, and final rinsing to eliminate residues. The integrated hot air drying system (50-80℃ adjustable) ensures fast, watermark-free drying, cutting post-cleaning wait time by 30%.

Semi-automatic operation balances efficiency and flexibility: automated tank transfer reduces labor, while manual part loading suits diverse component shapes. Compliant with industrial safety standards (anti-leakage, solvent recovery), it’s ideal for electronics, automotive, and precision engineering sectors. For manufacturers seeking thorough, low-residue cleaning with simplified workflow, this machine delivers consistent results while protecting delicate parts.


Tank Design Features: Durability & Filtration for Semi-Automatic Multi-Tank Vacuum Hydrocarbon Cleaning Machine:

Each tank of the HS-6384MF is engineered for durability and functional specificity, catering to different cleaning stages. The 1# and 2# degassing tanks (SUS304 2mm plates) are built for rough cleaning, with three-sided ultrasonic transducers (bottom and sides) to maximize energy transfer. The transducers’ hard chrome plating resists corrosion from hydrocarbon solvents, extending their lifespan. A 400W variable-frequency oscillation motor agitates the basket, enhancing solvent contact with part surfaces.


The 3# and 4# vacuum precision tanks use thicker SUS304 10mm plates to withstand high vacuum pressure, with 20mm aluminum tank lids opened/closed by SMC cylinders for airtight sealing. Their dual-frequency ultrasonic (28KHz/40KHz) allows switching between lower frequencies (for heavy dirt) and higher frequencies (for delicate parts), ensuring versatility. The filtration systems here are upgraded: 10μ for 3# and 1μ for 4#, removing even fine particles to meet strict cleanliness requirements.


The 5# and 6# vacuum drying tanks (also SUS304 10mm plates) focus on efficient drying. They use hydrocarbon vapor (90-130℃) for steam bathing, preheating parts to accelerate drying, then rely on high vacuum (Cuiman RT0.30S roots pumps + CNST VG155 liquid-ring pumps) to trigger the boiling effect, evaporating solvent in minutes. A liquid collection pan (201 stainless steel, 1.5mm thick) is installed at the machine’s base to catch spills, protecting the workshop floor and preventing slips.


Consumption of Semi-Automatic Multi-Tank Vacuum Hydrocarbon Cleaning Machine for reference:

order number

name

wastage

remarks

1

hydrocarbons

Add as required

It depends on the amount of cleaning

2

Filter cotton core

About 12 per month

Replace as required

3

Heat medium oil

100L/2500 hours

Replace every 2500 hours of work

4

Vacuum pump lubricating oil

0.2L/200 hours

Check and add every 200 hours of work

5

power consumption

About 30kw/hour

average value

6

compressed air

400 NL/min

Drive use (cylinder, pneumatic valve)

For a complete technical solution Of Semi-Automatic Multi-Tank Vacuum Hydrocarbon Cleaning Machine, please contact me. We will customize the design based on your product technical requirements and factory layout.
