Copper and Stainless Steel Explosion Bonded Clad Plate C1020 Multilayer
Copper and Stainless Steel Explosion Bonded Clad Plate C1020 Multilayer
Specifications
Brand Name :
Suntech or OEM
Model Number :
E0064
Certification :
EN10204 3.1, EN10204 3.2, DNV, TUV, SGS, etc
Place of Origin :
P.R.China
MOQ :
1 piece
Price :
negotiation
Payment Terms :
L/C, D/A, T/T, D/P
Supply Ability :
35000tons/Year
Delivery Time :
60 working days after received your payment
Packaging Details :
Seaworthy packing
Cladding Material :
304L
Base Material :
C1020
Size :
(4+3+4)*500*600mm
Production Code :
ASTM A264, ASME SA264
Description

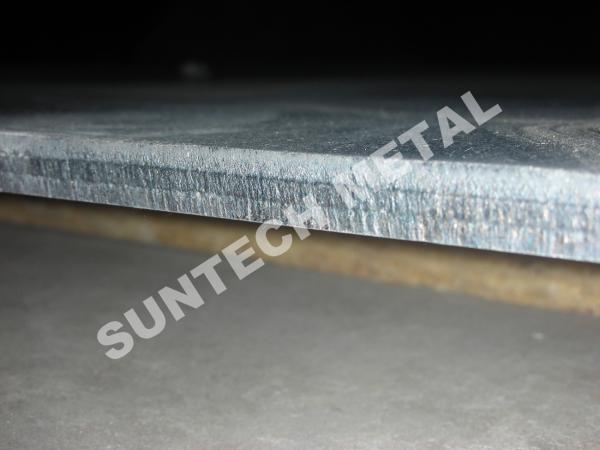

304L/C1020/304L Multilayer Copper and Stainless Steel Explosion Bonded Clad Plate

Quick Product Details:

Cladding metal: 304L/30403

Interlayer: C1020

Base metal:304L/30403

Size: (4+3+4)*500*600mm

Production code: ASTM A264, ASME SA264

Edge Treatment: Waterjet cutting

Surface: Auto polished

Packing: plywood case packing

Table for available type of Stainless Steel clad plates:

Product Names:

Stainless steel (Duplex) Clad Plate/Sheet, Stainless steel Clad Tube Sheet/ Tube Plate

Production Codes:

ASTM B263, ASME SB263, ASTM B264, ASME SB264, DIN , BS, JIS, GB/T, ISO, etc.

Stainless Steel Grades:

Ferritic Stainless Steel:310, 310S, 410, 410S

Austenitic Stainless Steel:304, 304L, 316, 316L, 321, 316Ti, 317L

Duplex & other high grade stainless steel: 904L,1825, 2205 (S31803), 2507(S32750), N08367 (AL6XN), 254SMo, 926, etc.

Form

Description

Base Layer

Base Layer Grade

Maximum Size

Clad Plate

Stainless (Duplex) / Carbon Steel Clad

Carbon steel plate and forging

SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.

(1.5~14)/(6~200) x W(max W 4110) x L(max L 7000)

Titanium / Stainless Steel (Duplex) Clad

Titanium

ASTM/ASME B265 Gr1, Gr2, Gr.3, Gr.5, Gr7, Gr.9, Gr12

(1.5~14)/(6~200) x W(max W 4110) x L(max L 7000)

Aluminum / Stainless Steel / Aluminum Clad

Aluminum

A1050, A1060, A1070, A1100, A5052, etc.

(1.5~40)/(1-5)/(6~200) x W(max W 1000) x L(max L 1000)

Copper/Aluminum /Stainless Steel/ Aluminum/Copper Clad

Aluminum

A1050, A1060, A1070, A1100, A5052, etc.

(1.5~40)/(1-5)/(6~100) x W(max W 1000) x L(max L 1000)

Copper, Naval Brass

C10100, C10200, C11000, C26200, C28000, C46400, C70600, C71500, etc.

Applications:
Petro-chemical, Vacuum Salt Industry, Chlor-alkali, Metallurgical, Food, Light Industry, Medicine, Auto Industry, Electrolytic Aluminum, Fertilizer, Power Industry, Building Materials, Electrolysis Industry, Hydrometallurgy etc.
