Aluminum and Stainless Steel Clad Plate Auto Polished Surface treatment
Aluminum and Stainless Steel Clad Plate Auto Polished Surface treatment
Aluminum and Stainless Steel Clad Plate Auto Polished Surface treatment
Aluminum and Stainless Steel Clad Plate Auto Polished Surface treatment
Specifications
Brand Name :
Suntech
Model Number :
E0065
Certification :
EN10204 3.1, EN10204 3.2, DNV, TUV, SGS, etc
Place of Origin :
P.R.China
MOQ :
1 piece
Price :
negotiation
Payment Terms :
L/C, D/A, T/T, D/P, etc
Supply Ability :
35000tons/Year
Delivery Time :
60 working days after received your payment
Packaging Details :
Seaworthy packing
Description

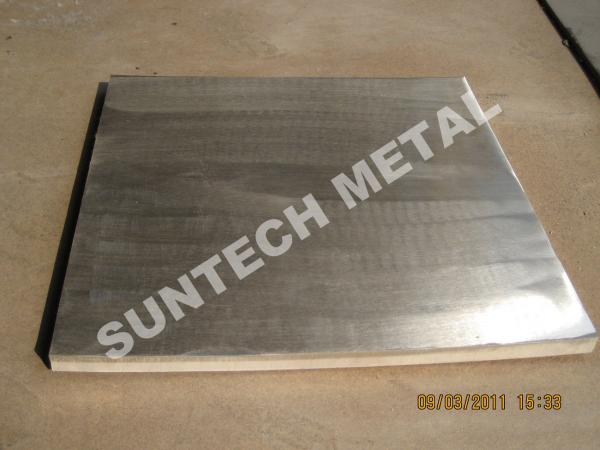

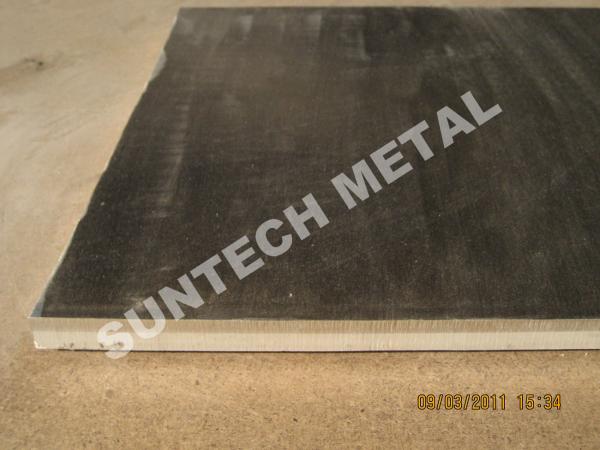

A1050/304L Aluminum and Stainless Steel Explosion Bonded Clad Plate

Quick Product Details:

Cladding metal:A1050

Base metal:304L

Size:(10+10)*500*500mm

Max Size: 2sqm

Production code:ASTM A264, ASME SA264

Edge Treatment: Waterjet cutting

Surface treatment: Auto Polished

Packing: Plywood case packing

Table for available type of Stainless Steel clad plates:

Product Names:

Stainless steel (Duplex) Clad Plate/Sheet, Stainless steel Clad Tube Sheet/ Tube Plate

Production Codes:

ASTM B263, ASME SB263, ASTM B264, ASME SB264, DIN , BS, JIS, GB/T, ISO, etc.

Stainless Steel Grades:

Ferritic Stainless Steel:310, 310S, 410, 410S

Austenitic Stainless Steel:304, 304L, 316, 316L, 321, 316Ti, 317L

Duplex & other high grade stainless steel: 904L,1825, 2205 (S31803), 2507(S32750), N08367 (AL6XN), 254SMo, 926, etc.

Form

Description

Base Layer

Base Layer Grade

Maximum Size

Clad Plate

Stainless (Duplex) / Carbon Steel Clad

Carbon steel plate and forging

SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.

(1.5~14)/(6~200) x W(max W 4110) x L(max L 7000)

Titanium / Stainless Steel (Duplex) Clad

Titanium

ASTM/ASME B265 Gr1, Gr2, Gr.3, Gr.5, Gr7, Gr.9, Gr12

(1.5~14)/(6~200) x W(max W 4110) x L(max L 7000)

Aluminum / Stainless Steel / Aluminum Clad

Aluminum

A1050, A1060, A1070, A1100, A5052, etc.

(1.5~40)/(1-5)/(6~200) x W(max W 1000) x L(max L 1000)

Copper/Aluminum /Stainless Steel/ Aluminum/Copper Clad

Aluminum

A1050, A1060, A1070, A1100, A5052, etc.

(1.5~40)/(1-5)/(6~100) x W(max W 1000) x L(max L 1000)

Copper, Naval Brass

C10100, C10200, C11000, C26200, C28000, C46400, C70600, C71500, etc.


Competitive Advantage:

1. Abundant experience in non-ferrous metal cladding and production.
With more than one decade of abundant experience in non-ferrous metal cladding and production, we provide high quality explosion bonded clad plates and clad heads with the cladding layer made of Nickel Alloy, Titanium Alloy, Copper-Nickel Alloy, Zirconium, Tantalum Alloy, Super Stainless Steel, aluminum and other materials according to ASTM, ASME, JIS, DIN, ISO other codes. More than 20 items of inventory or practical new-type patents also provide us with strong research and technical supports for our products.

2. Professional technical consulting service provides you with assistance.
- Generate technical specification to adopt in local market
- Technical bid evaluation and clarification
- Supplier technical document review, such as inspection and test plan, WPS / PQR, fabrication procedures, etc.
- Technical consulting on material, welding, NDE, etc.
- Non-conformance solution consulting
- Others that might be requested by customer

3. Independent inspection service covers following activities.
- Technical clarification with customer
- Attend / organize pre-inspection meeting
- In-process inspection, including: Material inspection, Test witness, Visual & dimensional inspection, Welding inspection, NDE inspection, Coating inspection
- Final inspection on finished products
- Packing inspection
- Progress report and schedule expediting
- Other inspection might be requested by customer

4. Transportation advantage
Located close to Shanghai seaport, we enjoy shipment convenience for large-sized explosion bonded clad plates and heads.
