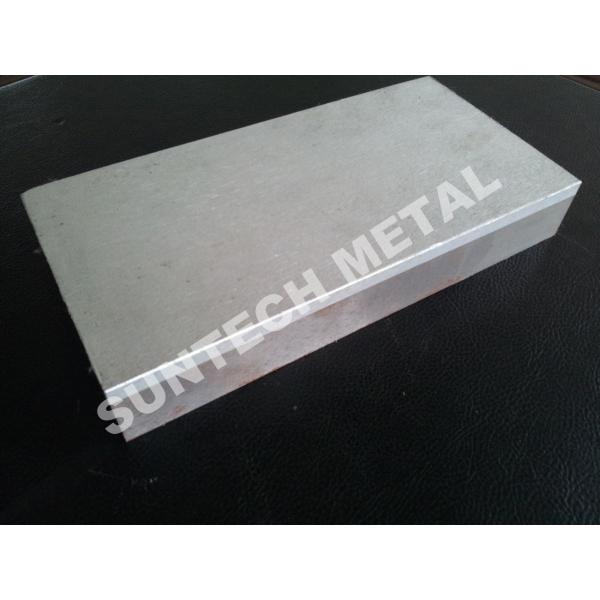

A1050 / 304L Explosion Bonded Clad Plate ASTM A265 Production Code
A1050 / 304L Explosion Bonded Clad Plate ASTM A265 Production Code
Specifications
Brand Name :
Suntech
Model Number :
E0067
Certification :
EN10204 3.1, EN10204 3.2, DNV, TUV, SGS, etc
Place of Origin :
P.R.China
MOQ :
1 piece
Price :
negotiation
Payment Terms :
L/C, D/A, T/T, D/P, etc
Supply Ability :
35000tons/Year
Delivery Time :
60 working days after received your payment
Packaging Details :
Seaworthy packing
Cladding Material :
A1050
Base Material :
304L
Size :
(20+180)*300*500mm
Max. Size :
2sqm
Production Code :
ASTM A265, ASME SA265
Inner Surface Treatment :
Auto Polished
Description

A1050 / 304L Explosion Bonded Clad Plate ASTM A265 Production Code

Quick Product Details:

Cladding metal:A1050

Base metal:304L

Size:(20+180)*300*500mm

Production code:ASTM A265, ASME SA265

Edge Treatment:Waterjet cutting & machining

Packing: Seaworthy packing

Table for available type of Aluminum clad plates:

Product Names:

Aluminum Clad Plate/Sheet, Aluminum Clad Tube Sheet/ Tube Plate

Production Codes:

CB-1343, DIN , BS, JIS, GB/T, ISO, etc.

Aluminum Grades:

A1050, A1060, A1070, A1100, A5052, etc.

Form

Description

Base Layer

Base Layer Grade

Maximum Size

Clad Plate

Aluminum / Carbon Steel Clad

Carbon steel plate and forging

SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.

(1.5~14)/(2~200) x W(max W 4110) x L(max L 7000)

Copper (Naval Brass)/ Stainless Steel (Duplex) Clad

Duplex, Stainless Steel & their forgings

304L,316L, 316Ti, 321, 317L, 310S, 410S, 904L, 1805, 2205, 2507, Al6XN, 254sMo,etc.

(1.5~14)/(2~200) x W(max W 4110) x L(max L 7000)

Titanium / Copper (Naval Brass) Clad

Titanium

ASTM/ASME B265 Gr1, Gr2, Gr.3, Gr.5, Gr7, Gr.9, Gr12

(1.5~14)/(2~100) x W(max W 2100) x L(max L 6000)

Copper (Naval Brass)/ Aluminum Clad

Aluminum

A1050, A1060, A1070, A1100, A5052, etc.

(1.5~14)/(6~50) x W(max W 1500) x L (max L 1500)

Copper (Naval Brass)/ Nickel Clad

Nickel and its alloy

N02200, Monel 400, Inconel 600, Incoloy 800, 825, C276, C22, etc

(1.5~14)/(6~50) x W(max W 2000) x L (max L 5000)

Copper (Naval Brass)/ Carbon Steel / Copper Clad

Carbon steel plate and forging

SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.

(1.5~14)/(6~200)/(1~10) x W(max W 3000) x L(max L 4000)

Copper / Titanium / Copper Clad

Titanium

ASTM/ASME B265 Gr1, Gr2, Gr.3, Gr.5, Gr7, Gr.9, Gr12

(1.5~14)/(2~100) x W(max W 2100) x L(max L 4000)

Copper (Naval Brass)/ Carbon Steel / Stainless Steel Clad

Carbon steel plate and forging

SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.

(1.5~14)/(6~200)/(1.5~10) x W(max W 4110) x L(max L 4000)

Duplex, Stainless Steel & their forgings

304L,316L, 316Ti, 321, 317L, 310S, 410S, 904L, 1805, 2205, 2507, Al6XN, 254sMo,etc.

Aluminum / Copper / Carbon Steel Clad

Aluminum

A1050, A1060, A1070, A1100, A5052, etc.

(1.5~40)/(1-5)/(8~200) x W(max W 1000) x L(max L 1000)

Carbon steel plate and forging

SA516 Gr.60(N),Gr.70(N),SA387 Gr.11, Gr.22, SA266, SA350, etc.

Aluminum / Copper (Naval Brass)/ Aluminum Clad

Aluminum

A1050, A1060, A1070, A1100, A5052, etc.

(1.5~40)/(1-5)/(1~100) x W(max W 1000) x L(max L 1000)

Applications:
Petro-chemical, Vacuum Salt Industry, Chlor-alkali, Metallurgical, Food, Light Industry, Medicine, Auto Industry, Electrolytic Aluminum, Fertilizer, Power Industry, Building Materials, Electrolysis Industry, Hydrometallurgy etc.
