Specifications
Brand Name :
ASCO
Model Number :
ASCO Series 551
Place of Origin :
china
MOQ :
2
Price :
$650
Payment Terms :
T/T
Supply Ability :
>10
Valve Actuation :
Solenoid - Air Pilot
Body Material :
Brass, Stainless Steel, Aluminum
Size :
1/4 "
Media :
Air, Inert Gas
Port Type :
G ISO228/1-G BSPP, NPTF
Function :
3 way - 3/2 Normally Closed, 4 way - 5/2, 4 way - 5/3 - Closed Center, 4 way - 5/3 - Open Center
Flow :
From 0.5 Cv to 1.0 Cv, From .43 to .86 Kv
Voltage :
24 AC, 110 AC, 120 AC, 220 AC, 480 AC, 6 DC, 12 DC, 24 DC, 120 DC, 240 DC | 50, 60
Operating Environmentn :
Hazardous; Indoor; Outdoor
Standards / Regulations :
ATEX Zone 1-21, ATEX Zone 2-22, Class I Div 1, Class II Div 1, SIL, Type 1, Type 2, Type 3, Type 3S, Type 4, Type 4X, Type 6, Type 6P, Type 7, Type 9
Max Differential / Max Operating Pressurel :
Vacuum to 150 PSIG
Temperature :
-60°C to 80°C
Description

Product Description

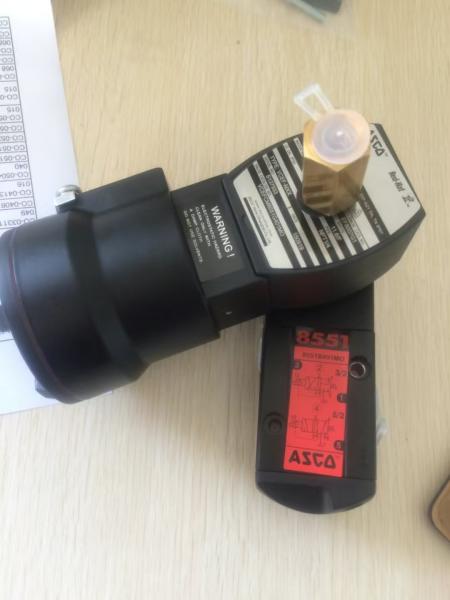

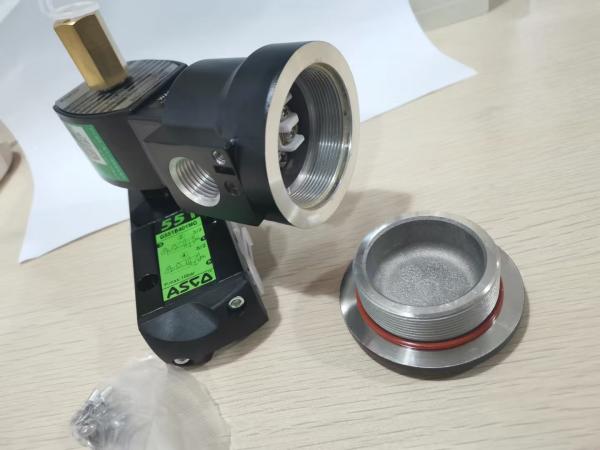

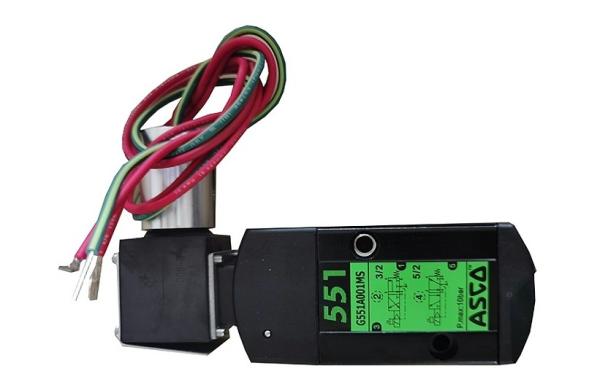

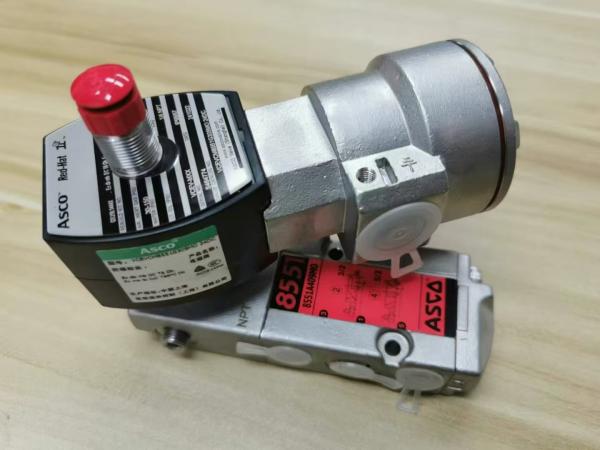

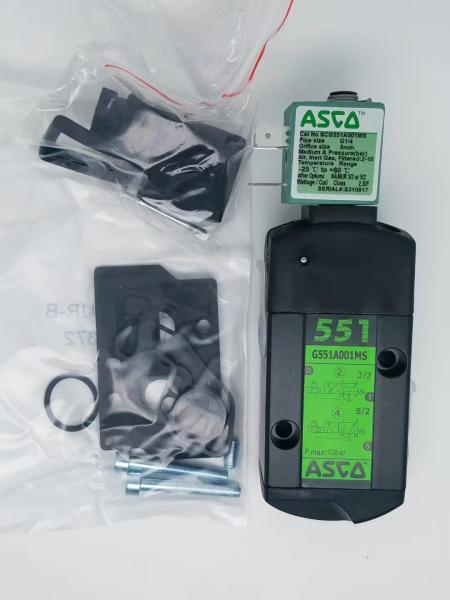

ASCO Series 551 (8551) - compact 1/4" 3 - way & 4 - way solenoid spool valves. Engineered for air or inert gas control in tough settings. Its unique hard T - seals and flexible O - rings ensure bubble - tight shutoff, dirt resistance, and long - lasting reliability. Available in anodized aluminum, brass, and stainless steel bodies with ¼ - inch NPT and BSP connections, it's perfect for harsh chemicals, refining, food & beverage, and life science applications.

Product Features

  • Available in two versions, mounted directly to actuators with NAMUR interface per VDI/VDE 3845 or threaded to mount on the pipe

  • Valve body in Aluminum, Brass, or Stainless steel 316L

  • Exhaust ports are pipeable, providing better protection against harsh environments

  • DIN, watertight, and explosion-proof solenoids are available for use in mission-critical and hazardous areas

  • Low-power constructions are ideal for remote and alternative power locations

  • Integral breather block vents to spring side of the actuator to exhaust, preventing corrosion

  • Single- and dual-solenoid constructions are available that mount in any position

  • Global Ex approvals; ATEX, IEC EX, NEPSI, CUTR, KOSHA, UL, CSA, InMetro

  • All ports of NAMUR on the same side for a better water , DUST protection

  • Available will all Explosion proof solenoids: Ex d, Ex mb, Ex ia/Ib, Ex e mb, NEMA

  • Available in an arctic version, suitable for use in temperatures as low as -60°C

  • Compact spool valve convertible from 3/2 to 5/2 with a single flow plate design (551 Series only)

Specifications :

Valve Actuation
Solenoid - air pilot
Body Material
Brass, stainless steel, aluminum
Media
Air, inert gas
Pipe / Port Size
1/4"
Port Type
G ISO 228/1 - G BSPP, NPTF
Function
3 way - 3/2 normally closed, 4 way - 5/2, 4 way - 5/3 - closed center, 4 way - 5/3 - open center
Flow
From 0.5 cv to 1.0 cv, from 0.43 to 0.86 kv
Voltage
24 ac, 110 ac, 120 ac, 220 ac, 480 ac, 6 dc, 12 dc, 24 dc, 120 dc, 240 dc, 50/60 Hz
Max Differential / Max Operating Pressure
Vacuum to 150 psig
Operating Environment
Corrosive, hazardous, indoor, outdoor
Standards / Regulations
ATEX Zone 1 - 21, ATEX Zone 2 - 22, Class I Div 1, Class II Div 1, SIL, Type 1, Type 2, Type 3, Type 3S, Type 4, Type 4X, Type 6, Type 6P, Type 7, Type 9
Temperature
- 60 °C to 80 °C

Product Details:

1/41/4

Choose the ASCO Series 551 for your air and inert gas control needs and experience superior performance, reliability, and durability.
