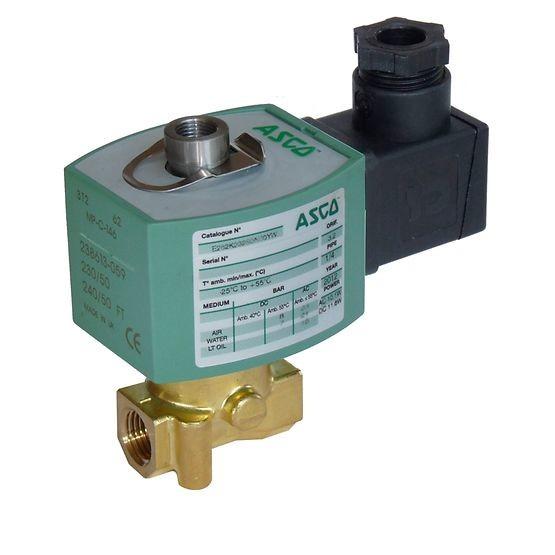

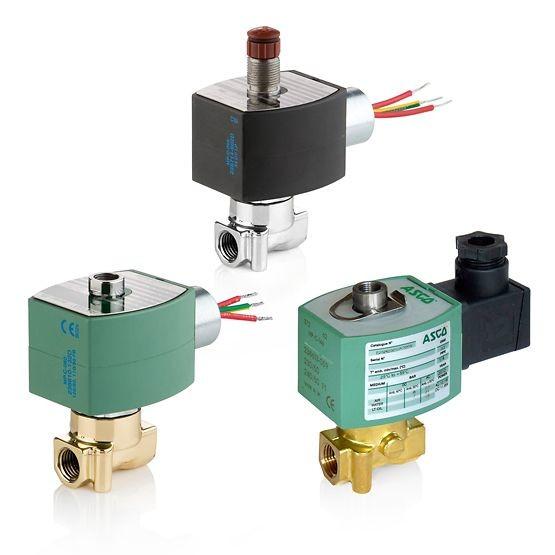

ASCO Series 314 3/2 Solenoid Valve Direct Acting Universal 1/8 1/4 NPT Steel Brass Body
ASCO Series 314 3/2 Solenoid Valve Direct Acting Universal 1/8 1/4 NPT Steel Brass Body
ASCO Series 314 3/2 Solenoid Valve Direct Acting Universal 1/8 1/4 NPT Steel Brass Body
ASCO Series 314 3/2 Solenoid Valve Direct Acting Universal 1/8 1/4 NPT Steel Brass Body
ASCO Series 314 3/2 Solenoid Valve Direct Acting Universal 1/8 1/4 NPT Steel Brass Body
ASCO Series 314 3/2 Solenoid Valve Direct Acting Universal 1/8 1/4 NPT Steel Brass Body
Specifications
Brand Name :
ASCO
Model Number :
8314 Series
Place of Origin :
china
MOQ :
1
Price :
$418
Payment Terms :
T/T
Supply Ability :
>100
Packaging Details :
each
Valve Actuation :
Solenoid - Direct Acting
Body Material :
Brass, Stainless Steel
Media :
Air, Inert Gas, Light Oil, Water
Pipe / Port Size :
1/4 "; 3/8 "
Port Type :
NPTF
Function :
3 way - 3/2 Normally Closed; 3 way - 3/2 Normally Open; 3 way - 3/2 Universal
FlowFrom :
From 0.5 Cv to 1.0 Cv
Voltage :
100 to 240 AC/DC Voltage Ranging; 110 AC; 115 AC; 12 DC; 12 to 24 DC Voltage Ranging; 120 AC; 120 DC; 125 DC Battery Charging; 220 AC; 24 AC; 24 DC; 24 to 120 AC/DC Voltage Ranging; 240 AC - 50; 50/60; 60
Operating Environment :
Hazardous, Indoor, Outdoor
Standards / Regulations :
Class I Div 1; Class I Div 2; CSA; Type 1; Type 2; Type 3; Type 3S; Type 4; Type 4X; Type 6; Type 6P; Type 7; Type 9; UL
Description

ASCO-314 Series (3/2 Series) Direct Acting Universal Solenoid Valve Brass Or Stainless Steel Body 1/8", 1/4" NPT

Product Description

The ASCO Series 314, also known as 8314, is a line of direct-acting general service solenoid valves which can be used as moderate flow pilots for smaller control valves and actuators. With only a spring and two moving parts, the valve is ideal for basic three-way piloting operation It is suitable for analytical and diagnostic equipment, automotive, bottling, dust collector system, and life science applications.

Product features


• No low starting differential pressure requirement
• New three-way valve design
• Simple basic three-way valve with only one spring and two moving parts
• Medium pilot flow, small control valve and actuator
• Can be applied to low flow diversion
• Quick-acting universal solenoid valve

Specification

item
value
place of origin
ORIGINAL
warranty
1 Year
customized support
OEM, ODM
brand name
ASCO
material
ORIGINAL
power
ORIGINAL
Product Type :
3/2 Series 327 Solenoid Valves
Prefix :
NF = Flameproof - Aluminium (EN/IEC 60079-1, 60079-31)
Pipe thread :
8
Basic number :
327B022 = stainless steel
Differential pressure :
0 - 10 bar [1 bar = 100kPa]
Maximum viscosity :
65cST (mm2 /s)
Response times :
75 - 100 ms

Product Details

ASCO Series 314 3/2 Solenoid Valve Direct Acting Universal 1/8ASCO Series 314 3/2 Solenoid Valve Direct Acting Universal 1/8ASCO Series 314 3/2 Solenoid Valve Direct Acting Universal 1/8
