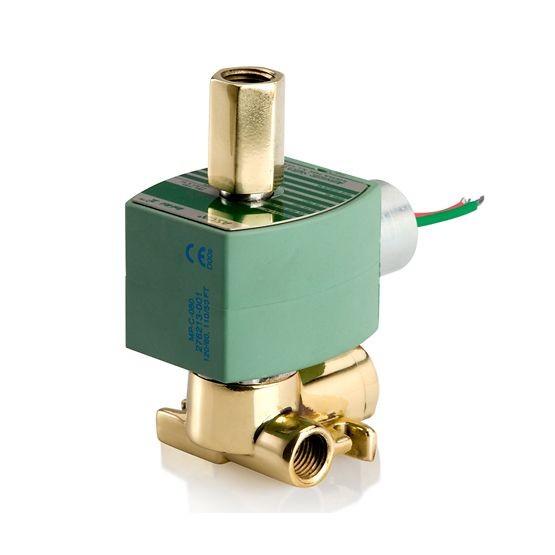

Asco 8317/8321 Series Quick Exhaust Solenoid Valve 1/4 And 3/8 NPT
Asco 8317/8321 Series Quick Exhaust Solenoid Valve 1/4 And 3/8 NPT
Asco 8317/8321 Series Quick Exhaust Solenoid Valve 1/4 And 3/8 NPT
Asco 8317/8321 Series Quick Exhaust Solenoid Valve 1/4 And 3/8 NPT
Asco 8317/8321 Series Quick Exhaust Solenoid Valve 1/4 And 3/8 NPT
Asco 8317/8321 Series Quick Exhaust Solenoid Valve 1/4 And 3/8 NPT
Specifications
Brand Name :
ASCO
Model Number :
8317 Series
Place of Origin :
china
MOQ :
1
Price :
$418
Payment Terms :
T/T
Supply Ability :
>100
Packaging Details :
each
Valve Actuation :
Solenoid - Air Pilot
Body Material :
Brass, Stainless Steel
Media :
Air, Inert Gas, Light Oil, Water
Pipe / Port Size :
1/4 "; 3/8 "
Port Type :
NPTF
Function :
3 way - 3/2 Normally Closed, 3 way - 3/2 Normally Open
FlowFrom :
From 0.1 Cv to 0.5 Cv, From 0.5 Cv to 1.0 Cv, From 1.0 Cv to 2.0 Cv, From .2 to .43 Kv, From .43 to .86 Kv, From .86 to 1.73 Kv
Voltage :
24 AC, 110 AC, 480 AC, 6 DC, 12 DC, 24 DC, 48 DC, 120 DC, 240 DC, 12 to 24 DC Voltage Ranging, 24 to 120 AC/DC Voltage Ranging, 100 to 240 AC/DC Voltage Ranging, 125 DC Battery Charging | 50, 50/60, 60
Operating Environment :
Hazardous, Indoor, Outdoor
Standards / Regulations :
Type 1, Type 2, Type 3, Type 3S, Type 4, Type 4X, Type 6, Type 6P, Type 7, Type 9, UL, ATEX Zone 0-20, Class I Div 1, Class I Div 2, CSA, IEC Ex Zone 0-20
Max Differential / Max Operating Pressure :
Vacuum to 150 PSIG, 150-500 PSIG
Description

Asco-8317/8321 Series Quick Exhaust Solenoid Valve Pilot, Brass/Stainless Steel Body 1/4" And 3/8" NPT

Product Description

The ASCO Series 321, also known as 8321, quick-exhaust solenoid valves are designed for quick venting to 0 psi through their external orifice. Air is exhausted to rapidly shift control valves. The pilot-operated valves have resilient seated poppets for tight shutoff. They are well suited for refining, chemical, and food and beverage applications that require a quick-exhaust valve.

Product Features


• RedHat Next Generation version uses electronics technology to manage power, providing less energy consumption and enhanced pressure and flow ratings
• Low-power model has one-piece solenoid with highly efficient solenoid cartridge and special low-wattage coil. Designed for automotive

•Resilient seated poppets for tight shutoff

•Mountable in any position for easy installatio

Specifications

Valve Actuation

Solenoid - Air Pilot

Body Material

Brass, Stainless Steel

Media

Air, Inert Gas, Light Oil, Water

Pipe / Port Size

1/4 "; 3/8 "

Port Type

NPTF

Function

3 way - 3/2 Normally Closed, 3 way - 3/2 Normally Open

Flow

From.05 - 1 Cv, From 0.1 Cv to 0.5 Cv, From.43 to.86 Kv, From.86 to 1.73 Kv

Voltage

100 to 240 AC/DC Voltage Ranging, 12 to 24 DC Voltage Ranging, 125 DC Battery Charging, 110 AC, 12 DC, 120 AC, 120 DC, 24 AC, 24 DC, 24 to 120 AC/DC Voltage Ranging, 240 DC, 250 DC Battery Charging50, 50/60, 60

Operating Environment

Corrosive, Indoor, Outdoor

Standards / Regulations

ATEX Zone 1 - 21, ATEX Zone 2 - 22, CSA, IEC Ex Zone 1 - 21, SIL, Type 1, Type 2, Type 3, Type 3S, Type 4, Type 4X, Type 6, Type 6P, Type 7, Type 9, UL

Standards / Regulations

ATEX Zone 1 - 21, ATEX Zone 2 - 22, CSA, IEC Ex Zone 1 - 21, SIL, Type 1, Type 2, Type 3, Type 3S, Type 4, Type 4X, Type 6, Type 6P, Type 7, Type 9, UL

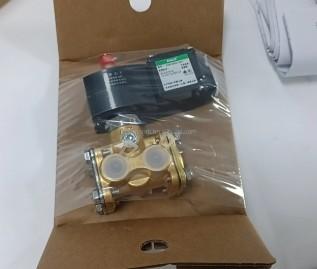

Product Details

Asco 8317/8321 Series Quick Exhaust Solenoid Valve 1/4Asco 8317/8321 Series Quick Exhaust Solenoid Valve 1/4Asco 8317/8321 Series Quick Exhaust Solenoid Valve 1/4Asco 8317/8321 Series Quick Exhaust Solenoid Valve 1/4
