Industrial Stainless Steel Parker Valve FS190 Excess Flow Shut Off Valve 1/2 inch
Industrial Stainless Steel Parker Valve FS190 Excess Flow Shut Off Valve 1/2 inch
Specifications
Brand Name :
PARKER
Model Number :
FS190 Excess Flow Shut-Off Valve
Place of Origin :
china
MOQ :
2
Price :
$158
Payment Terms :
T/T
Supply Ability :
>10
Pressure Rating :
1500 psi
Actuation :
Manual
Flow Rate :
10 gallons per minute
Port Size :
Full
Temperature Range :
-20 to 200 degrees Fahrenheit
Size :
1/2 inch
Application :
Industrial
Body Style :
2-way
Material :
Stainless Steel
Connection Type :
NPT
Seal Material :
PTFE
End Connections :
Threaded
Type :
Control Valve
Description

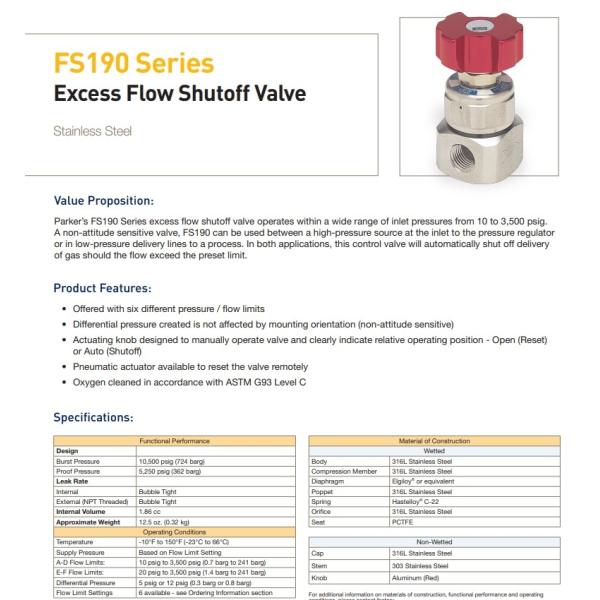

Parker Valve FS190 Excess Flow Shut Off Valve

Product Description:

Parker Hannifin Veriflo FS190: The Ultimate Excess Flow Shut - Off Solution Discover the Parker Hannifin Corporation’s Veriflo Division's FS190, a revolutionary non - attitude sensitive excess flow shut - off valve. It's engineered to handle a wide range of inlet pressures, from 10 to 3500 psig, making it suitable for use between high - pressure sources and pressure regulators or in low - pressure delivery lines. If the gas flow exceeds a preset limit, the FS190 automatically cuts off gas delivery, ensuring safety in various processes. With its components integrated into a 1 - 1/4 inch Quantum valve body style, it's both compact and reliable. The actuating knob allows for easy manual reset and clearly shows the operating position. For added convenience, a pneumatic actuator option enables remote resetting. Offered with six different pressure/flow limits (A - F), the FS190's operation remains unaffected by its mounting orientation. Ideal for industries like manufacturing, energy, and chemical processing, the FS190 is a top - notch choice for flow control and safety.

product features:

• Offered with six different pressure / flow limits

• Differential pressure created is not affected by mounting orientation (non-attitude sensitive)

• Actuating knob designed to manually operate valve and clearly indicate relative operating position - Open (Reset) or Auto (Shutoff)

• Pneumatic actuator available to reset the valve remotely

• Oxygen cleaned in accordance with ASTM G93 Level C


Specifications:

Category Details
Materials of Construction - Wetted
Body “VeriClean,” Veriflo’s custom high purity type 316L Stainless Steel™
Compression member 316L Stainless Steel
Seat PCTFE
Diaphragm Elgiloy® or equivalent
Spring Hastelloy C - 22®
Poppet 316L Stainless Steel
Orifice 316L Stainless Steel
Materials of Construction - Non - wetted
Knob Anodized Aluminum (Red)
Stem 416 Stainless Steel (lubricated)
Cap 316L Stainless Steel
Operating Conditions
Pressure Requirements - A - D 20 psig (min) to 3,500 psig (1.4 barg to 241 barg)
Pressure Requirements - E - F 30 psig (min) to 3,500 psig (2 barg to 241 barg)
Differential Pressure 5 psig or 12 psig (.3 barg or .8 barg)

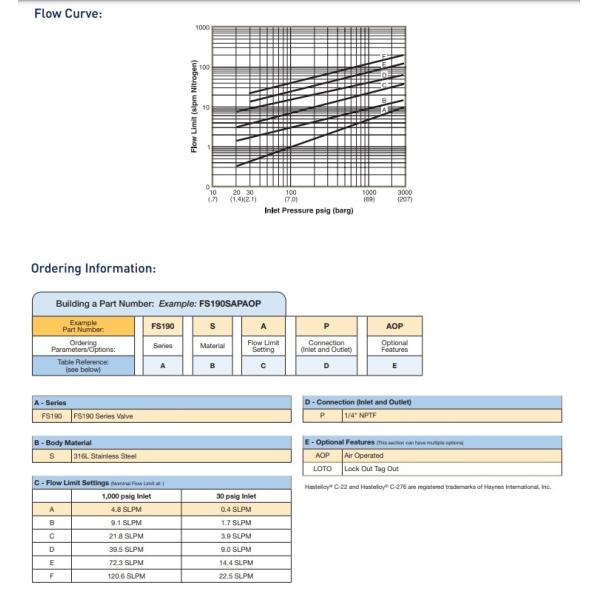

Flow Limit Settings 6 available
Temperature -10F° to 150°F (-23°C to 66°C)
Functional Performance
Design Leak Rate - Inboard 2 x 10-10 scc/sec He
Internal Volume 1.86 cc (including face seal fittings)
Surface Finishes
Standard Ra 15 - 20 micro in. (.38 to .5 micrometer) or less
Optional Ra EX = 10 micro in. (.25 micrometer) or less (Welded units only)
Standard Configuration 1/4" NPT female, 1/4" face seals or 1/4” tube stubs
Approximate Weight 12.5 oz. (0.32 kg)
0.95 lbs (0.43 kgm)
Product Details:
Industrial Stainless Steel Parker Valve FS190 Excess Flow Shut Off Valve 1/2 inchIndustrial Stainless Steel Parker Valve FS190 Excess Flow Shut Off Valve 1/2 inch
