NOVAAOP Series Air Actuated Diaphragm Valves High Cycle Life For Industrial
NOVAAOP Series Air Actuated Diaphragm Valves High Cycle Life For Industrial
Specifications
Brand Name :
PAEKER
Model Number :
NOVAAOP Series Air Actuated Diaphragm Valves
Place of Origin :
china
MOQ :
2
Price :
$158
Payment Terms :
T/T
Supply Ability :
>10
Pen Finish :
Lacquer
Pen Mechanism :
Twist
Pen Clip Material :
Stainless Steel
Pen Material :
Stainless Steel
Pen Tip Type :
Medium
Pen Barrel Color :
Blue
Product Type :
Ballpoint Pen
Pen Grip Material :
Plastic
Ink Color :
Black
Pen Refillable :
Yes
Pen Cap Color :
Silver
Pen Weight :
0.6 ounces
Pen Length :
5.5 inches
Description

Product Description:

NOVA AOP Series Diaphragm Valve: Reliable and Flexible for Diverse Needs The NOVA AOP Series diaphragm valve from Veriflo is a standout solution, evolving from the trusted NOVA manual valve and Veriflo's renowned air - actuated models. Ideal for industries like chemical processing and analytical sampling, it offers great versatility. Available in normally open or normally closed configurations, along with two line pressure options (250 psig and 500 psig), it can adapt to various setups. The valve's Elgiloy® diaphragm and outboard metal - to - metal seal ensure excellent leak integrity, enhancing safety and operational efficiency. As part of the cost - effective NOVA Series, it serves multiple applications such as regulator outlet valves, gas control panels, and analyzer sampling systems. If you're looking for an economical yet high - performing diaphragm valve for fluid control, the NOVA AOP Series is a top - notch choice, promising reliability and adaptability.

Product Features:

• High Cycle Life

• Compact Size

• Positive, consistent shutoff

• Metal to Metal seal to atmosphere

• Low Internal volume

• Low actuation pressure for AOP configuration

Specifications:

Functional Performance - Pressure Ratings
Manual Valve - Operating Pressure Vacuum to 3500 psig (241 bar)
Manual Valve - Proof Pressure 5250 psi (362 bar)
Manual Valve - Burst Pressure 10500 psi (724 bar)
AOP1, AOP3 Valve - Operating Pressure Vacuum to 250 psig (17 bar)
AOP1, AOP3 Valve - Proof Pressure 375 psi (26 bar)
AOP1, AOP3 Valve - Burst Pressure 750 psi (52 bar)
AOP2, AOPNO Valve - Operating Pressure Vacuum to 500 psig (34 bar)
AOP2, AOPNO Valve - Proof Pressure 750 psi (52 bar)
AOP2, AOPNO Valve - Burst Pressure 1500 psi (103 bar)
Seat Leakage Class Bubble Tight
Temperature Rating -15°F to 150°F (-26°C to 66°C)
Flow Capacity Cv = 0.17
Orifice Diameter 0.125 inch (3.2 mm)
Internal Volume Less than 1.0 cc
Approximate Weight 0.9 oz (0.026 kg)

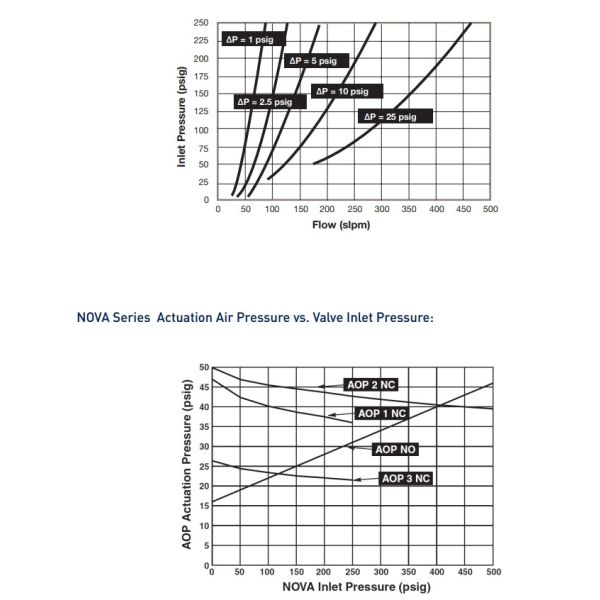

Maximum Actuation Air Pressure - AOP1 (normally closed) 65 psig (4.5 bar)
Maximum Actuation Air Pressure - AOP2 (normally closed) 75 psig (5.2 bar)
Maximum Actuation Air Pressure - AOP3 (normally closed) 40 psig (2.8 bar)
Maximum Actuation Air Pressure - AOPNO (normally open) 50 psig (3.5 bar)

Product Details:

NOVAAOP Series Air Actuated Diaphragm Valves High Cycle Life For IndustrialNOVAAOP Series Air Actuated Diaphragm Valves High Cycle Life For Industrial
