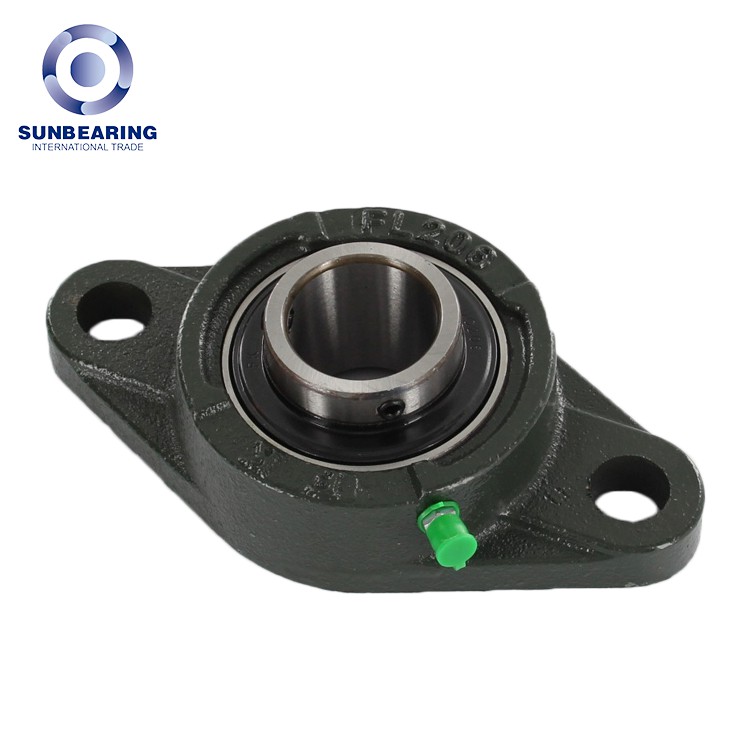

UCFL204 2 Bolts Flange Housed Bearing Unit 20mm SUNBEARING
UCFL204 2 Bolts Flange Housed Bearing Unit 20mm SUNBEARING
Specifications
Brand Name :
SUNBEARING
Model Number :
UCFL204
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000pcs/week
Delivery Time :
2-4weeks
Description
Product Name: Pillow Block Bearing UCFL204
Structure: Pillow block Bearing
Locking Device: Set Screwd 20 mm
Seal Type: Contact
H: 113 mm
Set screw: M6x0.75
U: 33.3 mm
The hexagonal key size for set screw: 3mm
The designation, housing: FL206
Recommended tightening torque for set screw: 5.5 Nm
The Designation, Radial Insert Ball Bearing: UC206
End Type: Open
Sealing solution: Standard seals with additional flingers
Performance: Light Duty
A: 25.5 mm
Operating Temperature Range: -40 to 250 ºF-40 to 120 ºC
Product weight: 0.44 kg
Rotational Speed [Max]: 6700 RPM
Housing Material: Cast Iron
Mounting Hole Center-to-Center (e): 15 mm
Dynamic Load Rating (Cr): 12.7kN
S: 12.7 mm
Static Load Rating (Cor): 6.55kN
Mounting Slot Width (S1): 18.3mm
Lubrication: Non-Relubricatable
N: 12mm
