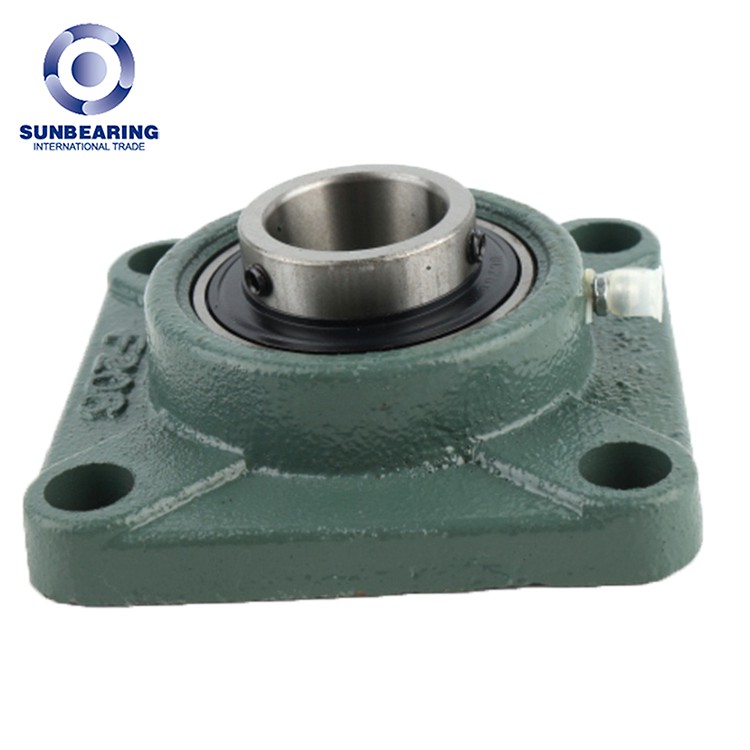

UCF208 Four Hole Flanged Bearing 40*130*51.2mm SUNBEARINGProduct NamePillow Block Bearing UCF208StructurePillow block BearingHousing Type:Flanged BearingBore Size40 mmRing Material:Chrome SteelWidth Radial Insert Bearing To The Slot e (mm):130 mmRolling Element Material:Chrome SteelWidth Radial Insert Bearing a (mm):51.2 mmCage Material:Sheet SteelDesignation, housingF208Lubrication Type:Oil; Grease;The Designation, Radial Insert Ball BearingUC208Housing Material:Cast IronBolt UsedM14T min.-20 °CA36 mmT max.100 °CProduct weight:1,91kgNumber of Mount Holes4MaterialCast iron housing, chrome steel bearingMount Hole Size16 mmDynamic Load Rating (Cr)2560kgfMount Hole Centre-to-Centre102mmStatic Load Rating (Cor)1810kgfB49.2mmRecommended Tightening Torque for Set Screw11.5 NmJ102 mmUCF208 Bearing FeaturesThese UCF208 bearing housings have square flanges that can be easily installed onto a machine with four bolts. These pillow block bearings are extensively used for various kinds of transmission equipment and machinery.The castings are made from high-quality cast iron, and finished on all unmachined surfaces with an electrostatic air drying paint.Normal Duty Flange Bearing Unit ApplicationFour-Bolt Normal Duty Flange Bearings (a product within the Mounted Ball Bearing Unit or "Housed Bearing" family) are one of the most abundant bearing units in use. Flange bearings may be found in a variety of applications, including, but not limited to, agricultural, bakery, construction, forestry, marine and textile equipment.Benefits using UCF208 Bearing UnitsFlange Bearing Units are available in a wide variety of styles to suit various applications, with metric or imperial insert options. Their design enables moderate initial misalignment to be accommodated.Four-Bolt UCF208 Bearing - RSRS Four-Bolt Medium Duty Cast Iron Flange Bearings are available in a number of sizes to suit a variety of applications. Flange Bearings are used in many industries, and may be found in use within machinery as diverse as packaging equipment, conveyor systems, agricultural equipment, construction plant, heat treatment equipment, forestry equipment and marine applications.
