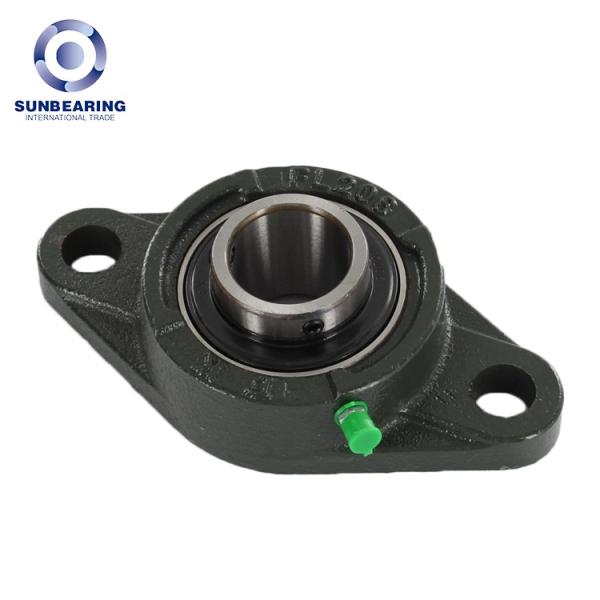

UCFL206 2 Hole Flange Bearing Unit 30mm ID SUNBEARING
UCFL206 2 Hole Flange Bearing Unit 30mm ID SUNBEARING
Specifications
Description
UCFL206 2 Hole Flange Bearing Unit 30mm ID SUNBEARING
Product Name: Pillow Block Bearing UCFL206
Structure: Pillow block Bearing
Locking Device: Set Screw
d: 30 mm
Seal Type: Contact
L: 80 mm
Set screw: M6x0.75
H: 148 mm
The hexagonal key size for set screw: 3mm
The designation, housing: FL206
Recommended tightening torque for set screw: 4N·m
The Designation, Radial Insert Ball Bearing: UC206
Recommended diameter for attachment bolts, mm: 14mm
Sealing solution: Standard seals with additional flingers
Total height unit: 40.2mm
A: 30 mm
T min.: -20 °C
Product weight: 0.9 kg
T max.: 100 °C
Housing Material: Cast Iron
Mounting Hole Center-to-Center (e): 117 mm
Dynamic Load Rating (Cr): 19.5kN
S: 15.9 mm
Static Load Rating (Cor): 11.2kN
Mounting Slot Width (S1): 19.05 mm
Lubrication: Non-Relubricatable
N: 16mm

UCFL206 Bearing Features
UCFL206 bearing is composed of a ball bearing and a diamond-shaped bearing housing. It can be installed on the vertical side of the machine.

Compared with the square bearing housing, diamond-shaped pillow block bearing has less installation space, component quality has also decreased.2 mounting bolt holes center distance of diamond-shaped bearing housing is the same as the square bearing housing’ So they are interchangeable with each other. When Install the bearing housing on the main body of the machine you must use both 2 bolts.

Main application: Roller conveyor, Machines with small installation intervals, etc.UCFL206 Pillow Block Bearing Cleaning and Inspection Cleaning When removing the bearing for inspection, first take pictures and other methods to make appearance records. In addition, confess the amount of remaining lubricant and sample the lubricant before cleaning the bearing. Inspection order to distinguish whether the removed bearing can be used from scratch, it is important to check its standard accuracy, rotation accuracy, internal clearance, and wear of the cooperation surface, raceway surface, holding frame, and sealing ring.

The inspection effect can be distinguished and judged by a conventional bearing or a reasonable user who knows the bearing. In addition, the importance of the mechanical function and related factors can be different, so the inspection cycle and detection parameters are also different. If there is any damage above, it can not meet the requirements of re-use, the bearing should not be used from the beginning, it is necessary to replace it.
