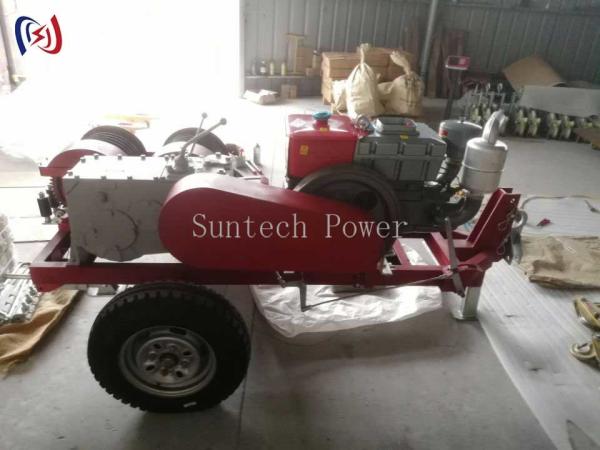

Multi Function Twin Drum Winch Ideal For Towing Dredging Cable Lay Operations​​
Multi Function Twin Drum Winch Ideal For Towing Dredging Cable Lay Operations​​
Multi Function Twin Drum Winch Ideal For Towing Dredging Cable Lay Operations​​
Multi Function Twin Drum Winch Ideal For Towing Dredging Cable Lay Operations​​
Multi Function Twin Drum Winch Ideal For Towing Dredging Cable Lay Operations​​
Multi Function Twin Drum Winch Ideal For Towing Dredging Cable Lay Operations​​
Multi Function Twin Drum Winch Ideal For Towing Dredging Cable Lay Operations​​
Multi Function Twin Drum Winch Ideal For Towing Dredging Cable Lay Operations​​
Specifications
Brand Name :
Suntech
Model Number :
JJCS-50J
Certification :
ISO
Place of Origin :
Ningbo
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
2000 PCS/Month
Delivery Time :
7-15days
Packaging Details :
Plywood Case
Name :
Double Drum Winch
Item No. :
09151-09162
Model :
JJCS-50J-JJCS-50T
Engine :
Diesel Engine/Gasoline Engine
Power :
6.3-9KW
Speed :
2000-3600RPM
Drum bottom of groove diameter :
230-300mm
Weight :
270-700KG
Description

Multi-Function Twin Drum Winch - Ideal for Towing, Dredging & Cable Lay Operations​​


The ​​Double Drum Winch​​ is an ​​industrial-grade lifting and pulling system​​ engineered for ​​complex operations requiring simultaneous load handling​​. Featuring ​​two independent 10HP motors​​, this winch delivers ​​15,000lb (6,804kg) combined capacity​​ with precision control over both drums. The ​​dual braking system​​ ensures safe load management, while the ​​modular design​​ allows customizable configurations for specialized applications.


​​Key Innovations:​​
✔ ​​Smart Load Balancing​​ - Automatic weight distribution between drums (±2% accuracy)
✔ ​​All-Terrain Mobility​​ - Integrated trailer hitch and 360° rotating base
✔ ​​Advanced Safety​​ - Dual emergency stops + overload sensors on each drum
✔ ​​Weatherproof Construction​​ - Marine-grade aluminum housing (IP68 rating)


​​Performance Advantages:​​

  • ​​60ft/min (18m/min) line speed​​ - 60% faster than single-drum competitors
  • ​​30,000+ operating cycles​​ before first maintenance service
  • ​​5T max capacity​​ (7,500lb per drum) for extreme loads
  • ​​Real-time load monitoring​​ through Bluetooth-connected display


​​Technical Specifications:​​

  • ​​Model:​​ JJCS-50J
  • ​​Drum Capacity:​​ 2 x 500ft (150m) galvanized steel cables
  • ​​Line Speed:​​ 60ft/min (18m/min) no load
  • ​​Control System:​​ CAN-BUS with wireless remote (300ft range)
  • ​​Compliance:​​ ISO 9001, DNV-GL, ABS
  • ​​Warranty:​​ 1 years


​​Critical Applications:​​

  • Offshore platform anchor handling
  • Mining conveyor system maintenance
  • Bridge cable tensioning operations
  • Heavy equipment recovery in disaster zones


Item No. 09151 09152 09162
Model JJCS-50J JJQS-50J JJCS-50T
Engine Model

KF186A

Diesel Engine

Honda 390

Gasoline Engine

S195G

Diesel Engine
Power(KW) 6.3 6.6 9
Speed(RPM) 2600 3600 2000

Pull force

(KN)/

Speed

(M/MIN)

 Slow 50*6.0,30/10 50/6.0,30/10 50/3.1,40/9.6
Moderate / / 45/7.1,17/22.3
Fast 13/23,10/30 13/23,10/30 33/11.3,10/35.6
Reverse -/5,-/17 -/5,-/17 -/7.35
Drum bottom of groove diameter Φ230 Φ230 Φ300
outline size(MM) 1280*770*600 1280*770*600 2440*1300*1140
Weight(KG) 280 270 700
