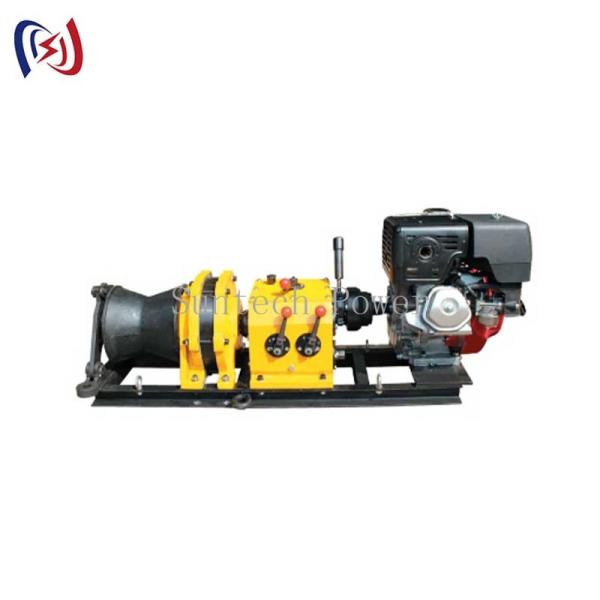

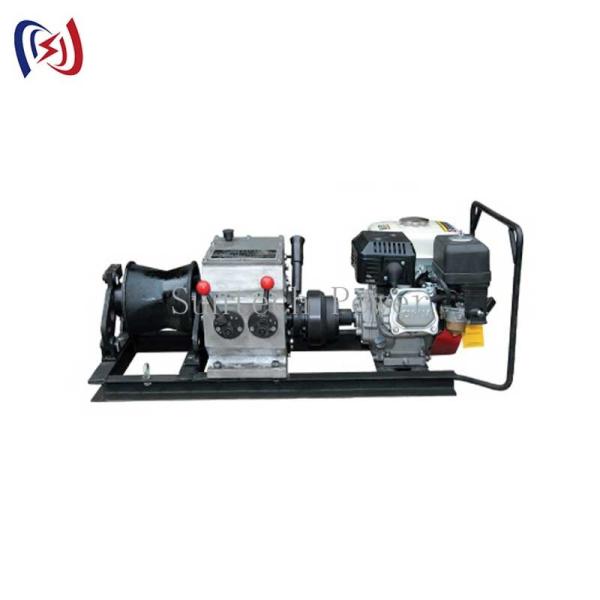

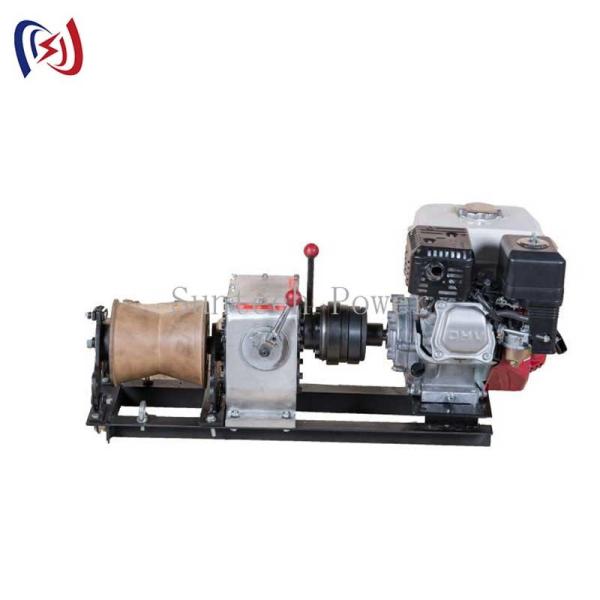

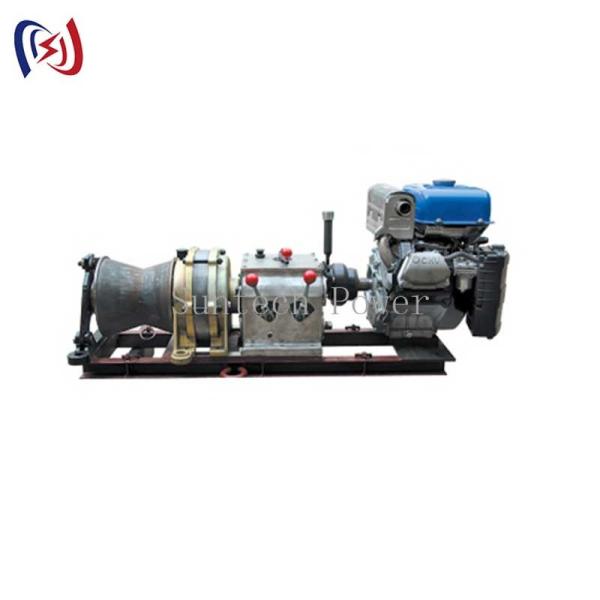

Multi Purpose Shaft Drive Winch For Towing Rigging Industrial
Multi Purpose Shaft Drive Winch For Towing Rigging Industrial
Multi Purpose Shaft Drive Winch For Towing Rigging Industrial
Multi Purpose Shaft Drive Winch For Towing Rigging Industrial
Multi Purpose Shaft Drive Winch For Towing Rigging Industrial
Multi Purpose Shaft Drive Winch For Towing Rigging Industrial
Multi Purpose Shaft Drive Winch For Towing Rigging Industrial
Multi Purpose Shaft Drive Winch For Towing Rigging Industrial
Specifications
Brand Name :
Suntech
Model Number :
JJQ-3
Certification :
ISO
Place of Origin :
Ningbo
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
200 PCS/Month
Delivery Time :
3-7days
Packaging Details :
Plywood Case
Name :
Fast Powered Winch(Shaft drive)
Item No. :
09131-09135A
Model :
JJQ-3
Tractive force :
3-5T
Power :
4.04-6.63KW
Weight :
94-148KG
Description

Multi-Purpose Shaft Drive Winch - Ideal for Towing, Rigging & Industrial Applications​


The ​​Fast Powered Winch (Shaft Drive)​​ is an ​​ultra-efficient lifting and pulling system​​ engineered for ​​time-critical industrial, construction, and recovery operations​​. Featuring a ​​direct shaft drive mechanism​​, this winch delivers ​​40% faster line speed​​ than conventional belt drive models, with a ​​5T load capacity​​. The ​​24V high-torque motor​​ ensures reliable performance in demanding conditions, while the ​​automatic braking system​​ provides instant load holding capability.


​​Key Features:​​
✔ ​​High-Speed Shaft Drive System​​ - Direct power transfer for maximum efficiency
✔ ​​Dual-Speed Operation​​ - Switch between fast retrieval and power modes
✔ ​​Automatic Load Holding Brake​​ - Secures loads without manual intervention
✔ ​​Thermal Protection Circuit​​ - Prevents motor damage during continuous use
✔ ​​Weatherproof Construction​​ - IP67-rated enclosure for all-weather operation


​​Performance Benefits:​​

  • ​​15m/min line speed​​ - 40% faster than belt drive competitors
  • ​​15,000+ operating cycles​​ before first service required
  • ​​6000lb pulling capacity​​ for heavy-duty applications
  • ​​55dB operation​​ - 30% quieter than standard winches


​​Technical Specifications:​​

  • ​​Model:​​ JJQ-3
  • ​​Load Capacity:​​ 5T
  • ​​Motor Power:​​ 6.0HP (24V DC)
  • ​​Compliance:​​ ISO 9001, CE, ANSI B30.7
  • ​​Warranty:​​ 1 years


​​Ideal Applications:​​

  • Emergency vehicle recovery
  • Construction site material handling
  • Marine and offshore operations
  • Industrial rigging and maintenance
Item No. Model

Rotation

direction

 Gear

Tractive

force(T)

Traction

speed

(M/MIN)

 Power(KW)

Outline

size(MM)

 Weight(KG)
09131

JJQ-3

6HP

Gasoline

engine

 corotation Slow Ⅰ 3.0 5 4.04 900*400*430 94
Slow Ⅱ 2.0 7
Fast Ⅰ 0.9 16
Fast Ⅱ 0.6 24
reversal Slow No lifting 4
Fast 13
09135

JJQ-5B

9HP

Gasoline

engine

 corotation Fast Ⅰ 0.9 24 6.61 1100*525*600 138
Fast Ⅱ 1.5 13
Slow Ⅰ 2.5 8
Slow Ⅱ 5.0 4
reversal Slow No lifting 4
Fast 18
