Specifications
Brand Name :
Suntech
Model Number :
SX4-V1
Certification :
ISO
Place of Origin :
Ningbo
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
2000 PCS/Month
Delivery Time :
7-15days
Packaging Details :
Plywood Case
Name :
Tractor-drawn Winch
Item No. :
08126
Model :
XS4-V1
Traction force :
20-40KN
Traction speed :
11-38M/Min
Bottom of groove diameter :
300mm
Number of groove :
6
Weight :
1740KG
Outline size :
2900x14000x1440mm
Warranty :
1 year
Description

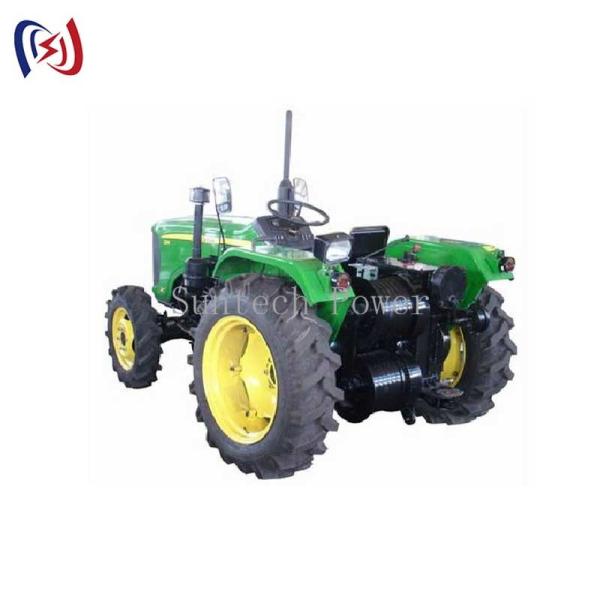

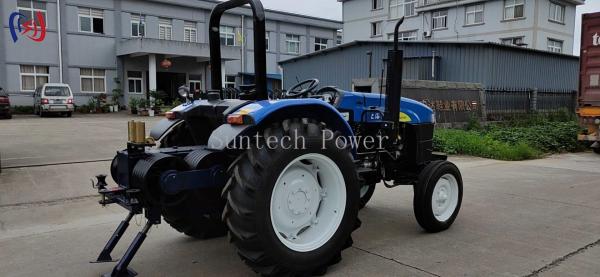

High-Efficiency Tractor-drawn Winch - 50% More Power Than Standard Winch Models​​


The ​​Tractor-drawn Winch​​ is a ​​heavy-duty pulling system​​ specifically engineered for ​​agricultural, forestry, and land management operations​​. With an ​​impressive 5000kg (11,023lb) pulling capacity​​, this winch delivers ​​exceptional performance​​ in demanding field conditions. The ​​hydraulic/PTO dual-power system​​ ensures versatile operation, while the ​​auto-brake function​​ provides secure load control.


​​Key Features:​​
✔ ​​Dual-Power Operation​​ - Compatible with both hydraulic systems and tractor PTO shafts
✔ ​​Heavy-Duty Construction​​ - Reinforced steel frame with anti-corrosion coating
✔ ​​Auto-Brake System​​ - Automatically locks the load when stopped
✔ ​​Easy Installation​​ - Universal mounting system fits most tractor models
✔ ​​Weatherproof Design​​ - IP65-rated for all-weather operation


​​Performance Benefits:​​

  • ​​4000kg pulling capacity​​ for heavy-duty applications
  • ​​50% more power​​ than standard winch models
  • ​​15,000+ pulls​​ before first maintenance required
  • ​​Low-noise operation​​ (below 65dB) for minimal disturbance


​​Technical Specifications:​​

  • ​​Model:​​ SX4-V1
  • ​​Pulling Capacity:​​ 4T
  • ​​Power Options:​​ Hydraulic (200bar) / PTO (540/1000rpm)
  • ​​Cable Length:​​ 60m (197ft) galvanized steel
  • ​​Line Speed:​​ 12m/min (39ft/min) under load
  • ​​Compliance:​​ ISO 9001
  • ​​Warranty:​​ 1 years


​​Ideal Applications:​​

  • Agricultural field operations
  • Forestry log extraction
  • Land clearing and rehabilitation
  • Heavy equipment recovery


Specifications:

Item number

08126

Power

22KW

 Model SX4-V1
Gear Ⅰ Ⅱ

Ⅲ

 reversalⅠ
Traction force(KN) 40 30

20

 -
Traction speed(M/MIN) 12 21

38

 11
bottom of groove diameter Φ300mm
Number of groove 6
Weight(KG) 1740kg
outline size 2900x14000x1440mm
