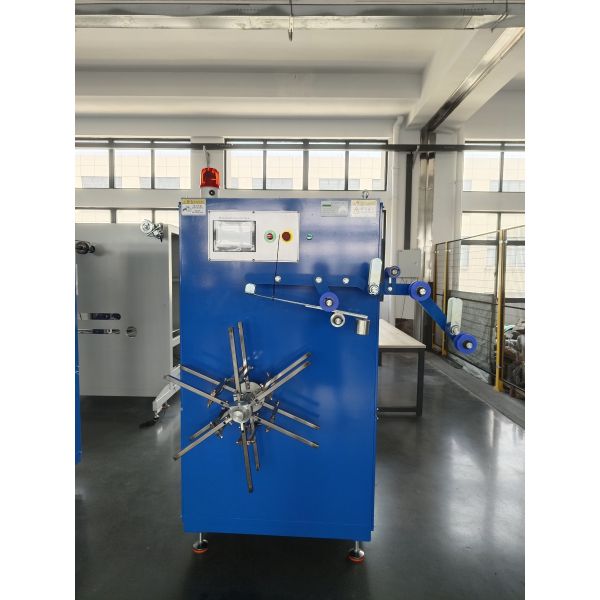

Auto Feed Cut Winder
Auto Feed Cut Winder
Specifications
Place of Origin :
CHINA
Operation method :
One-key start
Brand Name :
CHUQI
Supply Ability :
100SETS
Cutting method :
Automatic
Feeding stability :
Excellent
Delivery Time :
60DAYS
Length control :
Auto meter counter
Pipe diameter range :
Φ10-40mm
MOQ :
1SET
Winding method :
Automatic
Packaging Details :
FCL
Applicable products :
Sealing strips/composite strips/tubes Sealing strips/composite strips/tubes Sealing strips/composite strips/tubes Sealing strips/composite strips/tubes Sealing strips/composite strips/tubes Sealing strips/composite strips/tubes
Cutting accuracy :
High
Payment Terms :
T/T
Feeding method :
Automatic
Applicable materials :
EPDM/NR/NBR/IIR
Description
Auto Feed Cut Winder
Product Overview

This equipment integrates three core functions - automatic feeding, automatic cutting, and automatic winding - to achieve full-process automation for rubber and plastic pipe/strip production. The pipe/strip is smoothly fed through the feeding mechanism, automatically cut by the cutting device upon reaching the set length, and then neatly wound into coils by the winding mechanism. The three functions work in coordination with precise and连贯 actions, requiring no manual intervention.

The equipment is suitable for various materials including EPDM, NR, NBR, IIR and recycled rubber, and is widely used for winding and packaging of building door/window sealing strips, automotive sealing composite strips, and other products.

Technical Specifications
Parameter Specification
Automatic feeding Yes (smooth导入)
Automatic cutting Yes (fixed-length cutting)
Automatic winding Yes (neat coiling)
Applicable materials EPDM, NR, NBR, IIR, recycled rubber
Applicable products Sealing strips, composite strips, tubes, sheets
Length counting Auto meter counter
Pipe diameter range Φ10-40mm
Max. linear speed 20 m/min
Key Features
  • Automatic feeding: Smooth pipe/strip导入 without manual assistance
  • Automatic cutting: Automatically cuts at set length with clean edges
  • Automatic winding: Automatically coils after cutting with uniform arrangement
  • 3-in-1 design: Integrated feeding, cutting and winding for连贯 workflow
  • Fixed-length control: Meter counter precisely controls cutting length
  • Broad material compatibility: EPDM, NR, NBR, IIR and recycled rubber
  • Multiple product applications: Sealing strips, composite strips, tubes, sheets
  • Reduced labor: Full-process automation greatly reduces manual intervention
  • Improved efficiency: Continuous operation with no waiting
  • Reduced scrap: Precise cutting minimizes material waste
Frequently Asked Questions
Q: How stable is the automatic feeding? Will there be material jamming or stretching?
A: The feeding mechanism uses an optimized traction design combined with tension control to ensure smooth pipe/strip导入. For different material types, feeding speed and tension parameters can be adjusted to ensure stable feeding without jamming or excessive stretching.
Q: Can the cutting device handle different material types?
A: Yes. The equipment is suitable for various materials including EPDM, NR, NBR, IIR and recycled rubber. The cutting device pressure and speed can be adjusted according to material characteristics to ensure clean cuts.
Q: How accurate is the length counting?
A: The equipment is equipped with an auto meter counter with high counting accuracy. With PLC control, cutting length error can be controlled within a small range, meeting the requirements of precise metering production.
