High Precision Winding – Uniform Rubber Pipe Coiling
High Precision Winding – Uniform Rubber Pipe Coiling
Specifications
Place of Origin :
CHINA
Appearance quality :
Excellent
Brand Name :
CHUQI
Supply Ability :
100SETS
Side plate type :
Wheel disc
Layer uniformity :
High
Delivery Time :
60DAYS
Coil inner diameter :
Φ100-250mm
Coil width :
152/203mm
MOQ :
1SET
Packaging Details :
FCL
End face flatness :
Excellent
Max. outer diameter :
Φ400mm
Traversing system :
Polish rod
Length counting accuracy :
High
Payment Terms :
T/T
Tension control :
Adjustable constant tension
Description

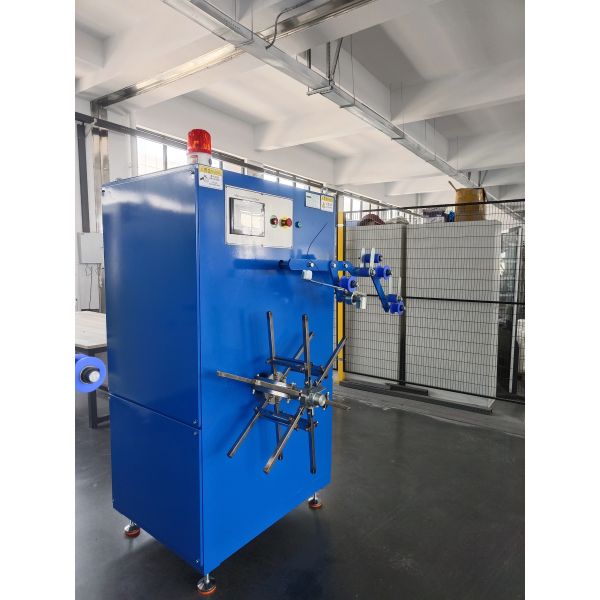

High Precision Winding – Uniform Rubber Pipe Coiling
Product Overview

This equipment adopts a precise mechanical structure and advanced control system to ensure uniformity and consistency of pipe/strip winding. During the winding process, adjustable tension control maintains constant pipe/strip tension, while the polish rod traversing system and wheel disc side plate guidance ensure flat end faces and tight, uniform layer arrangement for every coil.

The equipment is suitable for applications with high winding quality requirements, such as winding and packaging of automotive sealing strips, building door/window sealing strips, and other high-end products. High-precision winding not only improves product appearance quality but also facilitates subsequent transportation, storage and use.

Technical Specifications
Parameter Specification
Traversing method Polish rod
Side plate type Wheel disc
Tension control Adjustable
Length counting Auto meter counter
Coil inner diameter Φ100-250mm (customizable)
Coil width 152mm / 203mm
Max. coil outer diameter Φ400mm
Pipe diameter range Φ10-40mm

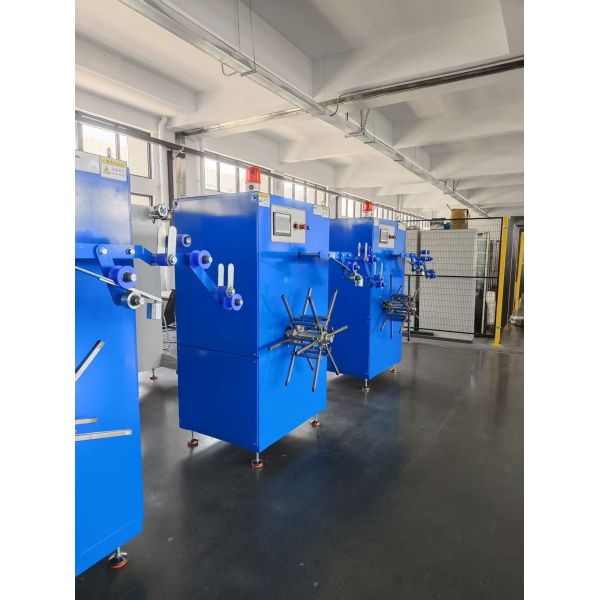

Control method PLC + touch screen
Key Features
  • Precision structure: Precise mechanical structure ensures uniform and consistent winding
  • Constant tension control: Adjustable tension control maintains constant pipe/strip tension
  • Polish rod traversing: Precise traversing with tight layer arrangement
  • Wheel disc side plate: Flat end faces with neat appearance
  • Large coil capacity: Max outer diameter Φ400mm reduces roll change frequency

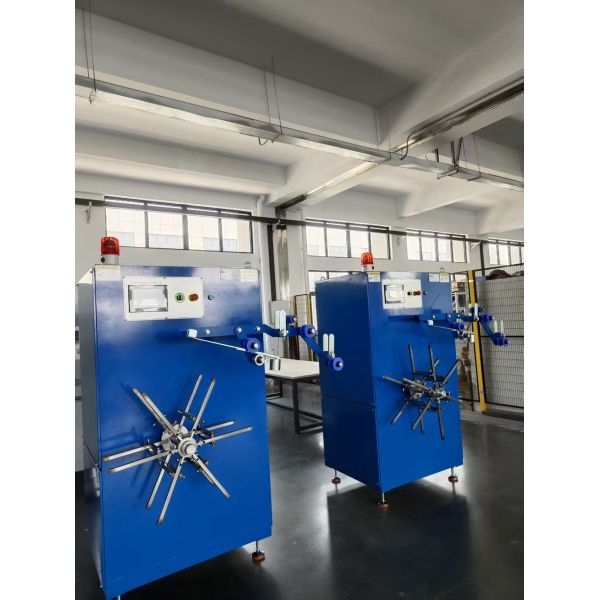

  • Accurate length counting: Auto meter counter precisely controls length per coil

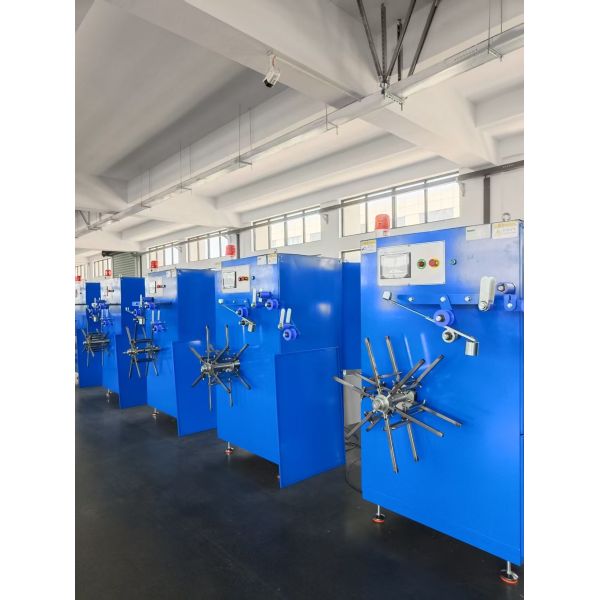

  • Adjustable width: Coil width options 152/203mm

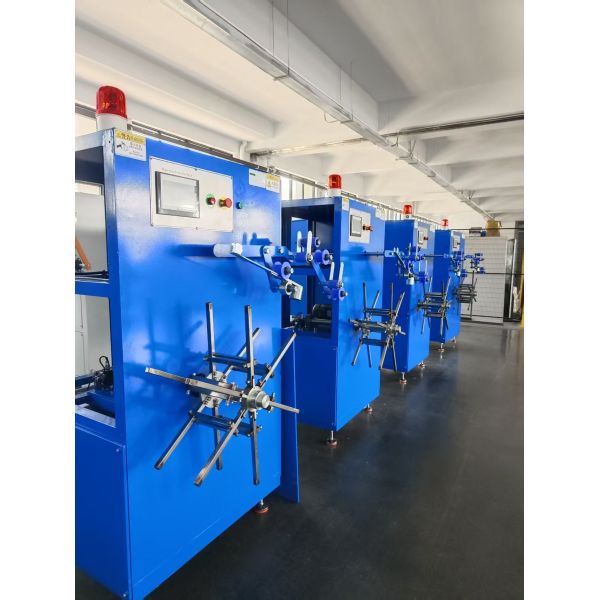

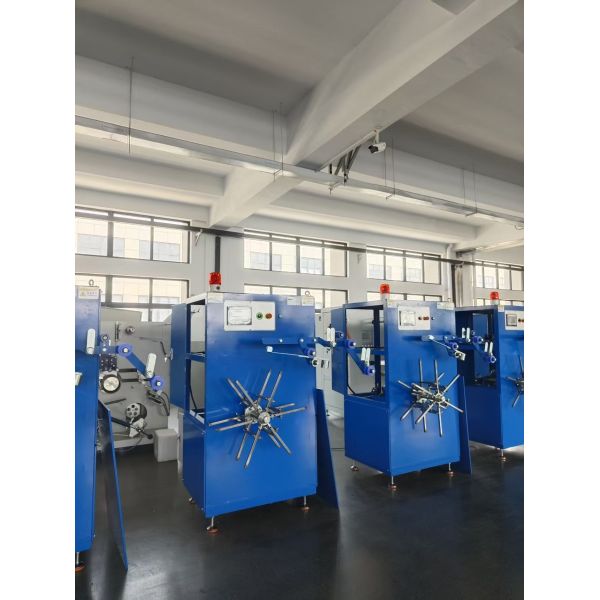

  • Adjustable inner diameter: Coil I.D. Φ100-250mm customizable
  • Quality improvement: Neat winding enhances product appearance
  • Convenient downstream: Smooth winding facilitates transportation, storage and use
Frequently Asked Questions
What level of end face flatness can be achieved?
Through the polish rod traversing system and wheel disc side plate guidance, combined with constant tension control, the winding end face achieves high flatness with tight, uniform layer arrangement and no obvious凹凸 or misalignment.
How is tension control achieved?
The equipment is equipped with an adjustable tension control system. By adjusting tension parameters, the pipe/strip maintains constant tension throughout the winding process, avoiding loose or overly tight winding caused by tension fluctuations.
Does the traversing system need to be changed for different tape widths?
No. The polish rod traversing system adapts to different tape widths. By adjusting traversing parameters, it accommodates different coil width specifications such as 152mm or 203mm.
