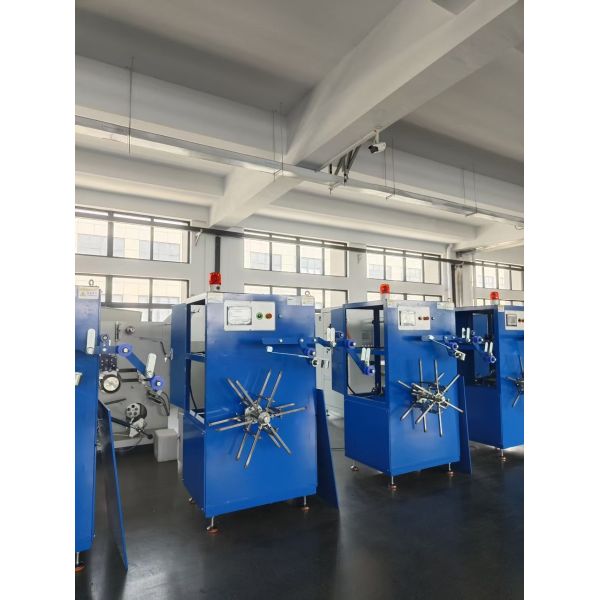

Adjustable Coil Diameter Hose Winder
Adjustable Coil Diameter Hose Winder
Specifications
Place of Origin :
CHINA
Customization capability :
Strong
Brand Name :
CHUQI
Supply Ability :
100SETS
Maximum outer diameter :
Φ400mm
End face quality :
Flat
Delivery Time :
60DAYS
Roll change frequency :
Reduced
Packaging cost :
Lowered
MOQ :
1SET
Packaging Details :
FCL
Coreless winding :
Supported
Transportation cost :
Lowered
Inner diameter range :
Φ100-250mm
Adjustment method :
Side plate replacement
Payment Terms :
T/T
Coil width :
152/203mm
Description
Adjustable Coil Diameter Hose Winder
This equipment supports flexible adjustment of coil inner diameter and outer diameter to meet different packaging and transportation requirements. The coil inner diameter can be adjusted within the range of Φ100-250mm, with a maximum outer diameter of up to Φ400mm. By adjusting winding parameters and replacing the corresponding side plates, operators can easily set the target coil diameter.
Larger coil diameters (max outer diameter Φ400mm) mean longer hose length per roll, reducing roll change frequency and operator labor intensity, while also lowering packaging material and transportation costs. The flexible adjustment of coil inner diameter accommodates different paper core specifications or direct coreless winding requirements.
Technical Specifications
Parameter Specification
Coil inner diameter range Φ100 - 250 mm (customizable)
Coil width 152 mm / 203 mm
Maximum coil outer diameter Φ400 mm
Adjustment method Parameter setting + side plate replacement
Coreless winding Supported (inner diameter directly formed)
Applicable scenarios Different transportation/storage requirements
Key Features
  • Adjustable inner diameter: Φ100-250mm range accommodates different paper cores or coreless needs
  • Maximum outer diameter: Φ400mm for longer roll length
  • Reduced roll change frequency: Larger diameter means fewer changes - improved efficiency
  • Lower packaging cost: Larger diameter reduces packaging materials and labor
  • Lower transportation cost: Larger diameter reduces per-unit shipping cost
  • Flexible adaptation: Inner and outer diameters customizable per customer requirements
  • Coreless winding support: Direct forming of hollow rolls saves consumable costs
  • Quick side plate replacement: Fast changeover with minimal downtime
  • Flat end face: Maintains neat end faces even at large diameters
  • Multi-specification compatibility: One machine meets different coil diameter needs
Frequently Asked Questions
Q: How is the Φ100-250mm coil inner diameter adjusted?
By replacing winding side plates of different specifications or adjusting the diameter of the pneumatic expanding mandrel. The operation is simple - side plate replacement typically takes only a few minutes.
Q: How much does a Φ400mm maximum outer diameter roll weigh?
Weight depends on the hose/strip material, wall thickness and density. Typical rubber hose/strip rolls weigh between 10-30kg - the equipment structure is designed to handle loads within this range.
Q: Can coreless winding be achieved?
Yes. By adjusting the inner diameter to the required size and using the pneumatic expanding mandrel for fixation, the equipment can directly wind hollow rolls without paper cores as mandrels.
