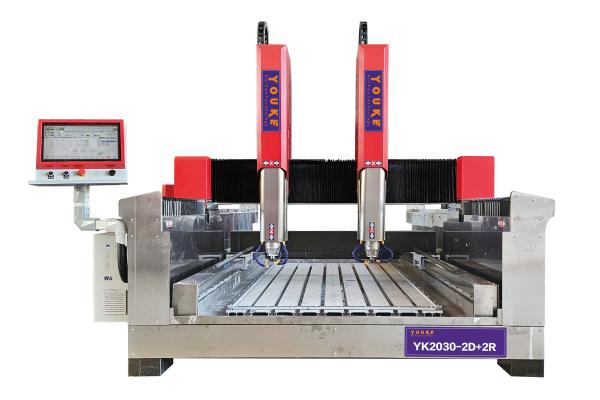

Flat Circular Stone Carving CNC Machine Engraving Dual Purpose 380V
Flat Circular Stone Carving CNC Machine Engraving Dual Purpose 380V
Flat Circular Stone Carving CNC Machine Engraving Dual Purpose 380V
Flat Circular Stone Carving CNC Machine Engraving Dual Purpose 380V
Specifications
Model Number :
YK2030-2D+2R
Place of Origin :
CHINA
MOQ :
1
Price :
10500USD
Packaging Details :
width 2200 x length 5200 x height 2350mm
Delivery Time :
15 work days
Payment Terms :
L/C,D/A
Platform dimensions :
2000x3000mm
Workpiece size :
1800×2500
Feed height :
≤400mm/700mm
Blank speed :
25m/min
Processing speed :
1-25m/min
Spindle power(Transducer) :
7.5KW water-cooled spindle
Motor :
1.5kw AC digital servo motor
Operating Voltage :
AC380V/50Hz
File format :
G-code/HPGL
Control System :
WEIHONG Nc60A
Machine dimension :
3200x3900x2500mm
Weight :
2800kg
Description

Introduction

Flat circular dual purpose engraving machine is a kind of CNC engraving equipment which integrates the functions of plane engraving and cylinder engraving. It is able to complete two different types of engraving tasks on a single machine, mainly used in woodworking, advertising production, crafts manufacturing and other industries.


Functional Characteristic

★ This equipment is specially designed for stone engraving machine industry;Can be used for plane engraving,three-dimensional engraving two processing functions,plane processing is mainly used for granite,marble,quartz stone,copper plate,aluminum plate and other plane engraving and hollow cutting; Three-dimensional processing is mainly used in Roman Columns,columns,drums,round railings,dragon columns,figures and other three-dimensional crafts carving processing;It is the first choice for stone special-shaped carving processing plants;

★ Main accessories:Dimension 4 axis round carving system;Shenzhen Lei sai brand high torque servo;The rotating shaft structure is independent thimble structure,brand RV high precision reducer;Fast processing speed,high precision,strong stability;

★ The whole machine X,Y,Z transmission adopts 30 import straight square rail,bearing capacity,stable operation,high machining precision;

★ The whole machine adopts thickened steel pipe welding,strong rigidity is not easy to deformation,Stainless steel surrounded the fuselage and table,the overall service life of the equipment is longer.


Various parameters

Product name Flat circular dual purpose engraving machine YK2030-2D+2R
Platform dimensions 2000x3000mm
Workpiece size 1800×2500
Feed height ≤400mm/700mm
Blank speed 25m/min
Processing speed 1-25m/min
Spindle power(Transducer) 7.5KW water-cooled spindle
Motor 1.5kw AC digital servo motor
Operating Voltage AC380V/50Hz
File format G-code/HPGL
Control System WEIHONG Nc60A
Machine dimension 3200x3900x2500mm
Weight 2800kg
