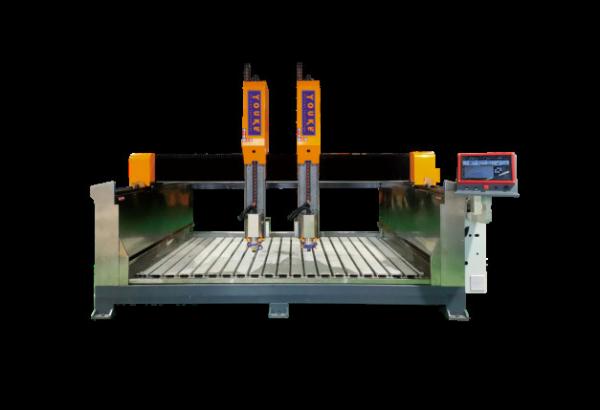

Swinging Head 3D Stone Carving Machine 4 Axis
Swinging Head 3D Stone Carving Machine 4 Axis
Specifications
Model Number :
HM4X-3515-2HD
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Packaging Details :
width 2200 x length 5200 x height 2350mm
Delivery Time :
15 work days
Payment Terms :
L/C,D/A
Platformdimensions :
2000×1500mm
Workpiece size :
1400×1400×2
Feed height :
≤6500mm
Blank speed :
25m/min
Processing speed :
1-15m/min
Spindle power :
7.5KW water-cooled spindle
Spindle speed :
6000~15000rpm/min
Motor :
1.5kw AC digital servo motor
Reducer :
(Qingchuan)RV121:1
OperatingVoltage :
AC380V/50Hz
File format :
G-code/HPGL
Control System :
WEIHONG 4Axis
Machine dimension :
4500×2300×2300mm
Weight :
3200kg
Description

Introduction

The 4-axis swinging head engraving machine is an advanced CNC engraving equipment, which is specially used to carve and process materials with complex shapes and surfaces. Compared with the traditional three-axis engraving machine, the 4-axis engraving machine adds a rotating axis, often referred to as the "swing head" or "rotating axis", which allows the tool to perform engraving operations in more angles and directions.



Functional Characteristic

★ Equipment system from shanghai Weihong company ,the equipment supports four-axis linkage(with RTCP function),the fourth axis swinging head can do 180°engraving,effectively solve the problem of stone curved surface and column cap side Angle engraving;

★ Equipment driven by brand servo motor,RV reducer,fast speed,high precision,good stability;

★ The X,Y,and Z transmission of the entire machine adopts 30/35 imported linear square rails,and the swing head adopts high-precision Qinchuan RV reducer,which has a large load-bearing capacity,smooth operation,and high machining accuracy;

★ The whole machine adopts thickened steel pipe welding,strong rigidity is not easy to deformation,Stainless steel surrounded the fuselage and table,the overall service life of the equipment is longer.


Various parameters

Product name 4 -axis swinging head stone carving machine HM4X-3515-2HD
Platformdimensions 2000×1500mm
Workpiece size 1400×1400×2
Feed height ≤6500mm
Blank speed 25m/min
Processing speed 1-15m/min
Spindle power 7.5KW water-cooled spindle

Motor

 1.5kw AC digital servo motor
Reducer (Qingchuan)RV121:1
OperatingVoltage AC380V/50Hz
File format G-code/HPGL
Control System WEIHONG 4Axis
Machine dimension 4500×2300×2300mm
Weight 3200kg
Spindle speed 6000~15000rpm/min
