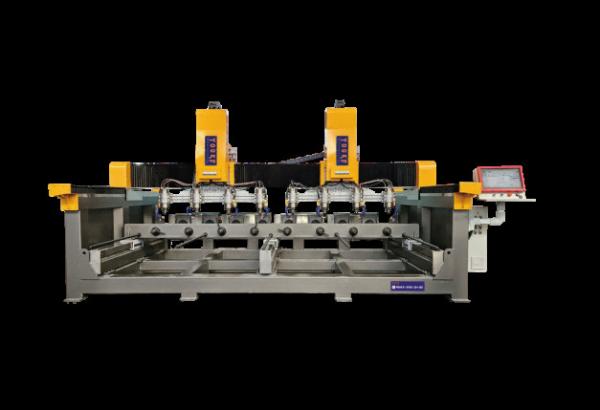

4Axis Three Dimensional Stone CNC Engraving Machine For Granite
4Axis Three Dimensional Stone CNC Engraving Machine For Granite
4Axis Three Dimensional Stone CNC Engraving Machine For Granite
4Axis Three Dimensional Stone CNC Engraving Machine For Granite
Specifications
Model Number :
HM4X-3516-2H-8D
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Packaging Details :
width 2200 x length 5200 x height 2350mm
Delivery Time :
15 work days
Payment Terms :
L/C,D/A
Workpiece size :
350×1600×8
Feed height :
≤400mm
Blank speed :
25m/min
Processing speed :
1-15m/min
Spindle power :
7.5KW water-cooled spindle
Spindle speed :
6000~24000rpm/min
Motor :
1.5kw/2.3kw AC digital servo motor
Reducer :
RV90:1,110Reducer
OperatingVoltage :
AC380V/50Hz
File format :
G-code/HPGL
Control System :
WEIHONG 4Axis Optional Razor Skyhigh Handle
Machine dimension :
5400×2900×3300mm
Weight :
4500kg
Description

Introduction


The 4-axis three-dimensional engraving machine is a highly complex CNC engraving equipment, which can carry out multidimensional three-dimensional engraving. Compared with the traditional three-axis engraving machine, a rotating axis is added, so that it can precision machining the workpiece from more angles.


Functional Characteristic


★ Round carving equipment system for the Shanghai Weihong company special models, the fourth axis can be 360 ° rotation operation; mainly used for Roman columns, columns, drums, round balustrades, dragon columns, figures and other three-dimensional carving processing;
★ Machine head part of the 2 drag 8 motor structure, Z direction running more stable, super strong to increase the running strength of the equipment, the thimble position using an independent drive operation, higher precision, better carving results, equipment stability and durability is stronger.
★ The main accessories are selected from the brand high-speed servo, 1:7 planetary reducer, fast speed, high precision, strong stability;
★ Y-direction adopts oil-immersed 35 track, Z-direction strengthens the structure of 35 track, X-direction adopts three 30 track
★ The whole machine is selected thickened square tube welding, beam increase, body weight, strong steel is not easy to deformation, the overall life of the equipment is more long.


Various parameters

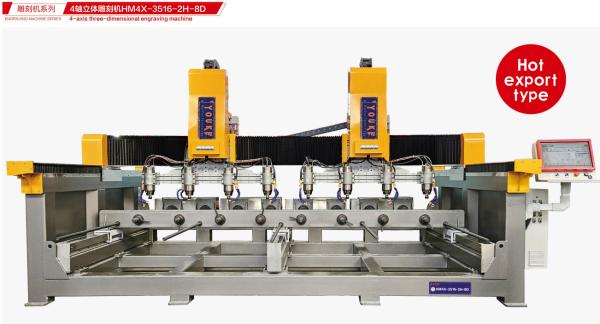

Product name 4-axis three-dimensional engraving machine HM4X-3516-2H-8D
Workpiece size 350×1600×8
Feed height ≤400mm
Blank speed 25m/min
Processing speed 1-15m/min
Spindle power 7.5KW water-cooled spindle
Spindle speed 6000~24000rpm/min
Motor 1.5kw/2.3kw AC digital servo motor
Reducer RV90:1,110Reducer
OperatingVoltage AC380V/50Hz
File format G-code/HPGL
Control System WEIHONG 4Axis Optional Razor Skyhigh Handle
Machine dimension 5400×2900×3300mm
Weight 4500kg
