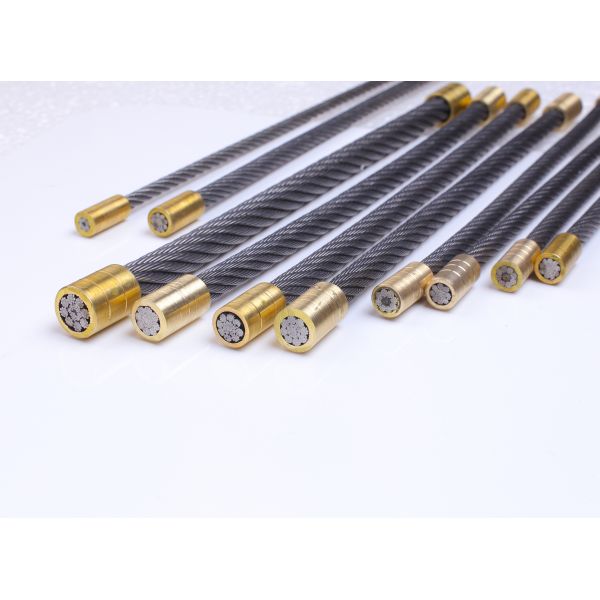

8×19S+IWRC 13mm Steel Wire Rope with 1570N/mm² Tensile Strength for Elevator Lifting and Hoisting
8×19S+IWRC 13mm Steel Wire Rope with 1570N/mm² Tensile Strength for Elevator Lifting and Hoisting
8×19S+IWRC 13mm Steel Wire Rope with 1570N/mm² Tensile Strength for Elevator Lifting and Hoisting
8×19S+IWRC 13mm Steel Wire Rope with 1570N/mm² Tensile Strength for Elevator Lifting and Hoisting
8×19S+IWRC 13mm Steel Wire Rope with 1570N/mm² Tensile Strength for Elevator Lifting and Hoisting
8×19S+IWRC 13mm Steel Wire Rope with 1570N/mm² Tensile Strength for Elevator Lifting and Hoisting
8×19S+IWRC 13mm Steel Wire Rope with 1570N/mm² Tensile Strength for Elevator Lifting and Hoisting
8×19S+IWRC 13mm Steel Wire Rope with 1570N/mm² Tensile Strength for Elevator Lifting and Hoisting
Specifications
Material :
steel
Application Fields :
Elevator Industry、Lifting and Hoisting Operations、Mechanical Transmission
Number Of Wires Per Strand :
19
Nominal Diameter :
13 mm
Construction :
8×19S+IWRC
Product Type :
Wire Rope
Tensile Strength :
1570N/mm²
Surface Treatment :
ungalvanized
Implementation standard :
ISO 4344/ EN 12385-4
Number Of Outer Wires :
8 strands
Brand Name :
Huayi
Model Number :
8×19S+IWRC
Place of Origin :
China
MOQ :
2000m
Payment Terms :
T/T,L/C
Supply Ability :
10000+M+
Description
8 Strands 8*19S+IWRC 13mm Steel Wire Rope For Elevator Lifting And Hoisting
Product Overview

8*19S+IWRC - 13 elevator steel rope designed for demanding lifting and hoisting applications requiring exceptional strength, durability, and reliability.

8×19S+IWRC 13mm Steel Wire Rope with 1570N/mm² Tensile Strength for Elevator Lifting and Hoisting
Structural Composition
  • 8*19S: Composed of 8 strands with 19 wires in each strand, featuring Seale type (S) construction. This design utilizes thicker outer wires and thinner inner wires, providing excellent wear resistance and compression resistance.
  • IWRC: Independent wire rope core twisted from multiple steel wires. This steel core enhances compression resistance and high-temperature stability while significantly improving overall tensile strength.
Performance Characteristics
High Strength

The 8-strand, 19-wire structure combined with steel core provides high breaking tensile force, enabling large load capacity for high-strength applications.

Excellent Wear Resistance

Thicker outer wires effectively resist wear during contact and friction, reducing wire breakage risk and extending service life.

Compression & High-Temperature Resistance

IWRC steel core provides superior resistance to external pressure and maintains stability in high-temperature environments.

Optimal Flexibility

Maintains strength while offering sufficient flexibility for bending and winding operations during use.

Application Areas
  • Elevator Industry: Used as traction rope for elevators, providing reliable tensile support and ensuring safe, stable elevator operation.
  • Lifting & Hoisting Operations: Ideal for cranes, tower cranes, and other lifting equipment during heavy object operations.
  • Industrial Applications: Suitable for mine hoisting equipment, oil drilling equipment, and other industrial machinery requiring reliable lifting and traction in harsh environments.
  • Construction & Bridge Engineering: Used for material lifting in construction and as temporary support or auxiliary traction rope in bridge construction.
