12 mm, 8×19S + FC Elevator Steel Rope with 19 Wires per Strand, Fiber Core Lubrication, and 1770N/mm² Tensile Strength
12 mm, 8×19S + FC Elevator Steel Rope with 19 Wires per Strand, Fiber Core Lubrication, and 1770N/mm² Tensile Strength
12 mm, 8×19S + FC Elevator Steel Rope with 19 Wires per Strand, Fiber Core Lubrication, and 1770N/mm² Tensile Strength
12 mm, 8×19S + FC Elevator Steel Rope with 19 Wires per Strand, Fiber Core Lubrication, and 1770N/mm² Tensile Strength
12 mm, 8×19S + FC Elevator Steel Rope with 19 Wires per Strand, Fiber Core Lubrication, and 1770N/mm² Tensile Strength
12 mm, 8×19S + FC Elevator Steel Rope with 19 Wires per Strand, Fiber Core Lubrication, and 1770N/mm² Tensile Strength
12 mm, 8×19S + FC Elevator Steel Rope with 19 Wires per Strand, Fiber Core Lubrication, and 1770N/mm² Tensile Strength
12 mm, 8×19S + FC Elevator Steel Rope with 19 Wires per Strand, Fiber Core Lubrication, and 1770N/mm² Tensile Strength
Specifications
Model Number :
8×19S+NFC
Material :
steel wire rod
Application Fields :
Elevator Industry、Lifting and Hoisting Operations、Mechanical Transmission
Place of Origin :
China
Number Of Wires :
19
Nominal Diameter :
12 mm
Supply Ability :
10000+M+
Construction :
8×19S+NFC
Payment Terms :
T/T
Product Type :
Wire Rope
Tensile Strength :
1770N/mm²
MOQ :
2000m
Surface Treatment :
ungalvanized
Implementation standard :
GB 8903-2024
Brand Name :
Huayi
Number Of Strands :
8
Description

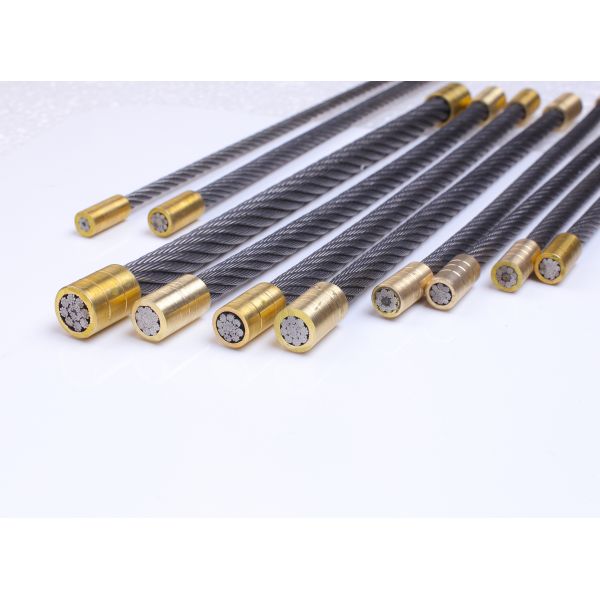

8*19S + FC - 12 Elevator Steel Rope
12 mm, 8×19S + FC Elevator Steel Rope with 19 Wires per Strand, Fiber Core Lubrication, and 1770N/mm² Tensile Strength
The 8*19S+FC wire rope with fiber core is engineered for elevator applications, combining structural integrity with operational flexibility for reliable performance in demanding environments.

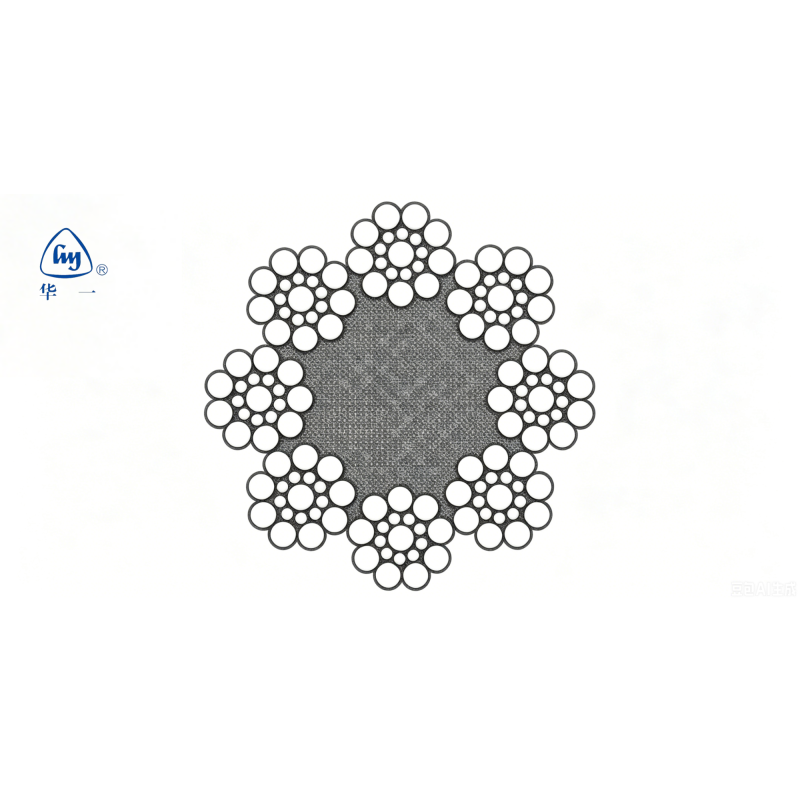

Structural Features
  • Strand Configuration: 8*19S indicates 8 strands with 19 wires per strand, utilizing the Seale (S) construction
  • Core Material: FC denotes fiber core, manufactured from natural or synthetic fibers
  • Core Function: Fiber core stores lubricating oil for continuous lubrication, corrosion protection, and impact buffering
Performance Advantages
Superior Flexibility
Excellent bending and winding capabilities ideal for elevator systems and precision equipment requiring high flexibility.
Enhanced Wear Resistance
Seale structure features thicker outer wires for improved durability when contacting pulleys and sheaves.
Shock Absorption
Fiber core acts as internal buffer, reducing vibration and impact loads during operation.
Extended Service Life
Fiber core stores substantial lubricant for long-term protection against friction and corrosion.
Application Fields
  • Elevator Systems: Standard hoisting rope for passenger and freight elevators
  • Lifting Equipment: Small-scale lifting devices and light-duty hoisting operations
  • Mechanical Transmission: Power transmission applications including winches and traction systems
Operational Guidelines
Important Safety Considerations
  • Load Compliance: Operate strictly within rated load capacity to prevent premature failure
  • Regular Inspection: Monitor surface wear, wire breakage, and fiber core condition
  • Proper Lubrication: Maintain lubrication schedule based on operating environment and frequency
  • Damage Prevention: Avoid contact with sharp edges or abrasive surfaces
