Specifications
Brand Name :
JinHongTong
Certification :
CE (EN 1090)，ISO 9001 / 14001 / 45001，AISC Standard，SABER / SASO / SABS，EN 10204 3.1 Material Certificate，ISO 3834 Welding Quality System
Place of Origin :
China
MOQ :
100 ㎡
Price :
USD 20-100 per square meter
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
Annual production capacity: 20,000 ㎡ - 30,000 ㎡ of steel structure buildings.
Delivery Time :
30 work days
Packaging Details :
Waterproof plastic film + steel strip bundling + wooden pallets.Seaworthy export packing.
Cladding Material :
Steel Color Sheets/Sandwich Panels
Connection Form :
Bolt Connection
Quality :
Quality Guarantee
Usage :
Warehouses, factories, workshops, commercial buildings
Design :
Modern
Color :
Customized White grey,Blue,Red
Frame :
Steel frame
Factory :
Factory direct sale
Floor :
Floor Deck +Concrete
Surface :
Painted/Galvanized
Standard :
GB standard
Doors :
KFC Door/ Steel Door/ PVC Door
Sample Time :
7 Days If Standard Parts We Have
Roof :
Sloped
Building Area :
1500㎡
Description
Strong Light Steel Frame Structures For Aircraft Parking As Light Steel Frame Aircraft Hangar
Product Introduction

Our heavy-duty steel structure hangars are professionally engineered for aircraft storage, maintenance and operation needs. Adopting high-strength heavy steel components and precision welding technology, the hangars feature exceptional structural stability, super strong load-bearing capacity and excellent wind, snow and seismic resistance, effectively protecting aircraft from harsh natural environments.

With factory prefabrication, the on-site installation is efficient and quick, greatly shortening the construction period and reducing project costs. The surface is treated with professional anti-corrosion, rust-proof and weather-resistant processes, ensuring long service life and low later maintenance costs.

We provide fully customized solutions, including span, height, layout and supporting facilities (such as ventilation, fire protection, lighting and drainage systems), to meet the storage and maintenance needs of various aircraft types, widely used in civil airports, general aviation bases, military airports and aircraft maintenance centers.

Technical Specifications
Technical Specifications
Parameter
Specification
Dimensions
Length 30m × Span 24m × Eave height 6m
Hangar Door Size
Width 15m × Height 5m
Door System
Hydraulic Doors
Structural System
Portal frame steel structure (Q355B high-strength steel) + composite roof/wall panels
Wind Resistance
Designed wind pressure: 0.55 kN/m² (equivalent to Category 12 typhoon)
Seismic Rating
Seismic fortification intensity: 8 degrees
Floor Load
3 tons/m² (supports small aircraft & maintenance equipment)
Fire Resistance
Steel components: ≥2-hour fire rating (fireproof coatings)
Strong Light Steel Frame Structures For Aircraft Parking As Light Steel Frame Aircraft Hangar
Project Cases
Strong Light Steel Frame Structures For Aircraft Parking As Light Steel Frame Aircraft Hangar
120*60*25m Hangar

Location: Dubai, United Arab Emirates

Project Overview:

We delivered a state-of-the-art aircraft maintenance hangar for Emirates Airlines, designed to accommodate narrow-body aircraft including the Boeing 737 and Airbus A320neo. The 7,200 sqm facility integrates cutting-edge engineering, durability, and operational efficiency, setting a new benchmark for aviation infrastructure in the Middle East.

Technical Specifications
Technical Specifications
Parameter
Specification
Span
120m
Door Width
100m
Door system
Stacking doors
Floor Load Capacity
15t/m²
Wind Resistance
150km/h
Strong Light Steel Frame Structures For Aircraft Parking As Light Steel Frame Aircraft Hangar
80*50*15m Hangar

Location: Melbourne, Australia

Project Overview:

Design and construction of a state-of-the-art regional aircraft maintenance hangar to support Client's expanding fleet of COMAC C909(original name: ARJ21)aircraft. The facility integrates advanced maintenance systems, energy-efficient infrastructure, and rapid-access workflows to minimize aircraft downtime.

Technical Specifications
Technical Specifications
Parameter
Specification
Hangar Dimensions
80m (L) x 50m (W) x 15m (H)
Door System
Bottom Rolling Doors
Floor Load Capacity
15 t/m² reinforced concrete
HVAC System
Zoned temperature control (±2°C accuracy)
Lighting
500 lux LED array with explosion-proofing
Specialized Systems
Composite repair bays, RFID tool tracking
Strong Light Steel Frame Structures For Aircraft Parking As Light Steel Frame Aircraft Hangar

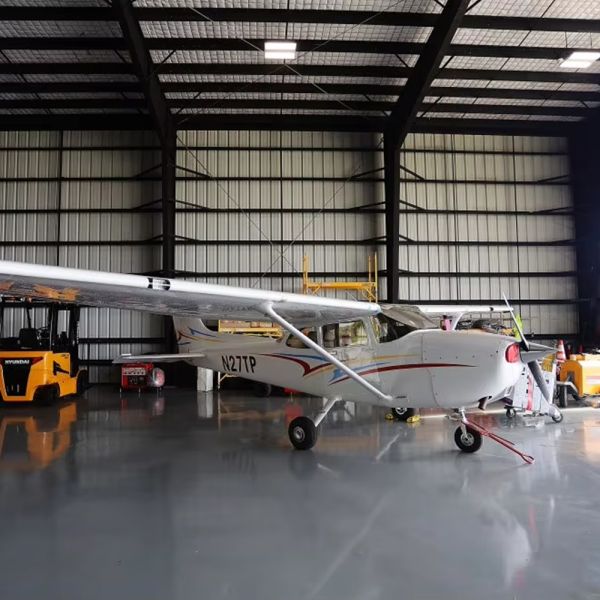

30*24*6m Hangar

Project Case: Small Aircraft Hangar Steel Structure

Location: Reunion Island

Project Overview:

Design and construct a steel structure hangar for a general aviation base to accommodate 4 small aircraft(e.g., Cessna 172, Diamond DA40). The facility must support aircraft storage, routine maintenance, and withstand wind/seismic loads, while ensuring rapid construction and long-term durability.

Technical Specifications
Technical Specifications
Parameter
Specification
Dimensions
Length 30m × Span 24m × Eave height 6m
Hangar Door Size
Width 15m × Height 5m
Door System
Hydraulic Doors
Structural System
Portal frame steel structure (Q355B high-strength steel) + composite roof/wall panels
Wind Resistance
Designed wind pressure: 0.55 kN/m² (equivalent to Category 12 typhoon)
Seismic Rating
Seismic fortification intensity: 8 degrees
Floor Load
3 tons/m² (supports small aircraft & maintenance equipment)
Fire Resistance
Steel components: ≥2-hour fire rating (fireproof coatings)

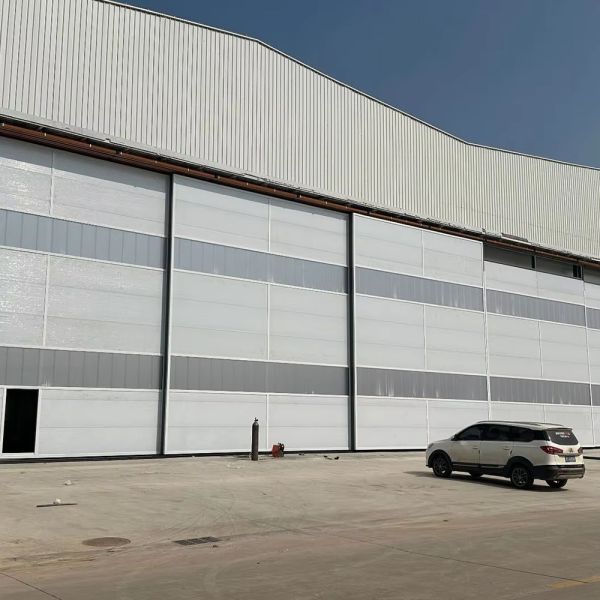

Door Systems
Strong Light Steel Frame Structures For Aircraft Parking As Light Steel Frame Aircraft Hangar
Hydraulic Door

Like an ordinary garage door, hydraulic doors open by swinging up and out from a horizontal to vertical position. They’re quiet, smooth, and allow businesses to maximize headroom.

Strong Light Steel Frame Structures For Aircraft Parking As Light Steel Frame Aircraft Hangar
Bottom Rolling Door

The doors are so massive, their weight cannot be supported any other way. The doors are affixed to a rail embedded along the foundation that the door slides along, transferring its weight to the ground rather than the building.

Strong Light Steel Frame Structures For Aircraft Parking As Light Steel Frame Aircraft Hangar
Stacking Door

The Stack Door installs on virtually any type of building, saving money and space. Stack Doors have been specified for aircraft hangars, tee hangers, industrial and agricultural buildings.

Strong Light Steel Frame Structures For Aircraft Parking As Light Steel Frame Aircraft Hangar
Bifold Door

Bifold doors open like an accordion. As they’re raised up, they fold in half. Consequently, they require less clearance and provide more usable space in front of your building

Door Type Comparison
Type of door
Pros/Advantages
Cons/Disadvantages
Hydraulic Doors
Allows for great headspace OR lower initial build height.
It is basically a huge sail when open, moderate maintenance.
Bifold Doors
Convenient, motorized.
Requires a much taller hangar than necessary to clear the aircraft.
Bottom Rolling Doors
Extremely heavy duty, low maintenance.
Extremely heavy, rails must be set in footings, prone to jams on the rails.
