Multipurpose Nm500 Wear Resistant Steel Plate Excellent Weldability
Multipurpose Nm500 Wear Resistant Steel Plate Excellent Weldability
Multipurpose Nm500 Wear Resistant Steel Plate Excellent Weldability
Multipurpose Nm500 Wear Resistant Steel Plate Excellent Weldability
Specifications
Brand Name :
HNJBL
Model Number :
NM500
Certification :
BV
Place of Origin :
China
MOQ :
2ton
Price :
Negotiated
Payment Terms :
L/C, T/T
Supply Ability :
10000ton/month
Delivery Time :
3-25 working days
Packaging Details :
Bundle,standard seaworthy package
Product Name :
Wear Resistant Steel
Grade level :
nm500
Standards :
GB/T 24186-2009
Surface Treatment :
Coated or as your requested
Description

NM500 abrasion-resistant steel plate

A plate with a hardness of 500 HBW, the GB/T24186 NM500 abrasion-resistant steel plate is an example of an abrasion-resistant plate. designed to perform well in environments where abrasion resistance and cold bending qualities are required. GB/T24186 NM500 abrasion-resistant steel plate has excellent weldability.

High-strength wear-resisting GB/T24186 NM500 abrasion-resistant steel plate offers excellent abrasion resistance. The primary purpose of materials with a Brinell hardness of 500 or higher (HBW) is to protect wear-resisting occasions or parts, thus extending the useful life of the equipment, decreasing the need for maintenance and downtime, and subsequently lowering the financial outlay required to achieve the same results.

abrasion-resistant Steel Plate Chemical Composition and Mechanical Properties
Chemical Composition(Max)
Material C Si Mn P S Cr Ni Mo Ti Bt Als CEV
NM300 0.23 0.70 1.60 0.025 0.015 0.70 0.50 0.40 0.050 0.0005-0.0006 0.010 0.45
NM360 0.25 0.70 1.60 0.025 0.015 0.80 0.50 0.50 0.050 0.0005-0.0006 0.010 0.48
NM400 0.30 0.70 1.60 0.025 0.010 1.00 0.70 0.50 0.050 0.0005-0.0006 0.010 0.55
NM450 0.35 0.70 1.70 0.025 0.010 1.10 0.80 0.55 0.050 0.0005-0.0006 0.010 0.60
NM500 0.38 0.70 1.70 0.020 0.010 1.20 1.00 0.65 0.050 0.0005-0.0006 0.010 0.65
NM550 0.38 0.70 1.70 0.020 0.010 1.20 1.00 0.70 0.050 0.0005-0.0006 0.010 0.72
NM600 0.38 0.70 1.90 0.020 0.010 1.50 1.00 0.70 0.050 0.0005-0.0006 0.010 0.76
Material Tensile MPA Elongation % Impact energy -20ºC HBW
NM300 ≥1000 ≥14 ≥24 270-300
NM360 ≥1100 ≥12 ≥24 330-390
NM400 ≥1200 ≥10 ≥24 370-430
NM450 ≥1250 ≥7 ≥24 420-480
NM500 ≥1250 ≥7 ≥24 ≥470
NM550 ≥1250 ≥7 ≥24 ≥530
NM600 ≥1250 ≥7 ≥24 ≥570

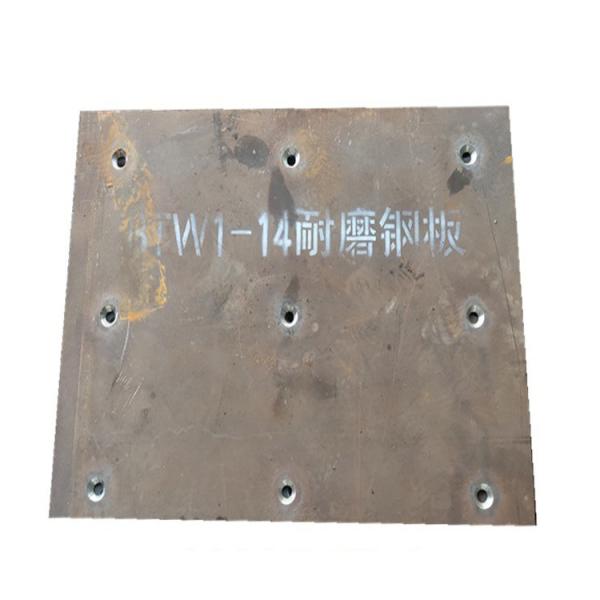

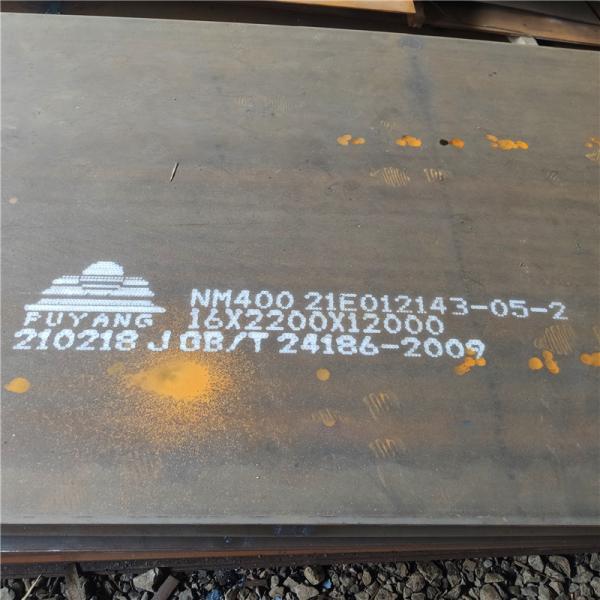

Pictures of 16mm NM500 abrasion-resistant Steel Plate

Multipurpose Nm500 Wear Resistant Steel Plate Excellent Weldability

NM500 Steel Plate Quality first

Multipurpose Nm500 Wear Resistant Steel Plate Excellent Weldability

Our Certificates

Multipurpose Nm500 Wear Resistant Steel Plate Excellent Weldability

About Us

FAQ

Q1:Where is your factory located?
A: Zhengzhou, Henan, China is home to our main processing hub.
hat has state-of-the-art equipment like laser cutters, mirror polishers, and other similar devices.To meet the specific requirements of our customers, we are able to offer a comprehensive selection of tailored services.


Q2: What are your company's primary offerings?
A2: The 2mm thick wear-resistance steel plate and stainless steel plate


Q3:How many different countries have you exported to so far?
Q4: The United States, Russia, the United Kingdom, Kuwait, Egypt, Turkey, Jordan, India, and many other countries are among the 50 or so countries to which we export.

Q4: Can you give me an example? (Question 6)
A4: We carry free, miniature samples in-store. There is a 5-7 day turnaround time for customized sample orders.
