GB/T 24186-2009 Nm450 Steel Plate Wear Resistance Steel Sheet High Durability
GB/T 24186-2009 Nm450 Steel Plate Wear Resistance Steel Sheet High Durability
GB/T 24186-2009 Nm450 Steel Plate Wear Resistance Steel Sheet High Durability
GB/T 24186-2009 Nm450 Steel Plate Wear Resistance Steel Sheet High Durability
Specifications
Brand Name :
HNJBL
Model Number :
NM450
Certification :
BV
Place of Origin :
China
MOQ :
2ton
Price :
Negotiated
Payment Terms :
L/C, T/T
Supply Ability :
10000ton/month
Delivery Time :
3-25 working days
Packaging Details :
Bundle,standard seaworthy package
Product Name :
Wear Resistant Steel
Grade level :
nm450
Standards :
GB/T 24186-2009
Surface Treatment :
Coated or as your requested
Description

Nm450 Wear Resistant Steel Plate

Specifically, wear-resistant steel plate is a subset of quenched and tempered wear-resistant alloy steel plate.

Both the properties and their applications are discussed.

1. Excellent resistance against abrasion.

Wear-resistant steel plate has a thickness of 3-12mm, the hardness of the wear-resistant layer can reach HRC58-62, and the wear resistance is 15-20 times higher than the performance of ordinary steel plate, 5-10 times higher than the performance of low-alloy steel plate, 2-5 times higher than the wear resistance of high-chromium cast iron, and the wear resistance is better than the abrasion-resistant methods such as spray welding and thermal spraying.

2. Improved overall performance of the effect.

The wear-resistant steel plate is a double-layer metal structure, the wear-resistant layer and the base material are metallurgically bonded, the bonding strength is high, it can absorb energy in the process of being impacted, and the wear-resistant layer will not fall off, which allows it to be applied to the working conditions of vibration and strong impact, which is inferior to the cast wear-resistant materials and the ceramic materials.

Wear Resistant Steel Plate Chemical Composition and Mechanical Properties
Chemical Composition(Max)
Material C Si Mn P S Cr Ni Mo Ti Bt Als CEV
NM300 0.23 0.70 1.60 0.025 0.015 0.70 0.50 0.40 0.050 0.0005-0.0006 0.010 0.45
NM360 0.25 0.70 1.60 0.025 0.015 0.80 0.50 0.50 0.050 0.0005-0.0006 0.010 0.48
NM400 0.30 0.70 1.60 0.025 0.010 1.00 0.70 0.50 0.050 0.0005-0.0006 0.010 0.55
NM450 0.35 0.70 1.70 0.025 0.010 1.10 0.80 0.55 0.050 0.0005-0.0006 0.010 0.60
NM500 0.38 0.70 1.70 0.020 0.010 1.20 1.00 0.65 0.050 0.0005-0.0006 0.010 0.65
NM550 0.38 0.70 1.70 0.020 0.010 1.20 1.00 0.70 0.050 0.0005-0.0006 0.010 0.72
NM600 0.38 0.70 1.90 0.020 0.010 1.50 1.00 0.70 0.050 0.0005-0.0006 0.010 0.76
Material Tensile MPA Elongation % Impact energy -20ºC HBW
NM300 ≥1000 ≥14 ≥24 270-300
NM360 ≥1100 ≥12 ≥24 330-390
NM400 ≥1200 ≥10 ≥24 370-430
NM450 ≥1250 ≥7 ≥24 420-480
NM500 ≥1250 ≥7 ≥24 ≥470
NM550 ≥1250 ≥7 ≥24 ≥530
NM600 ≥1250 ≥7 ≥24 ≥570

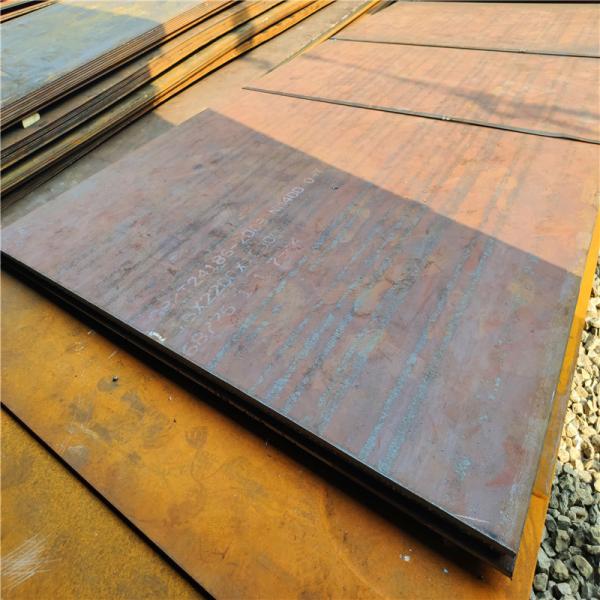

Pictures of 16mm NM450 Wear Resistant Steel Plate

GB/T 24186-2009 Nm450 Steel Plate Wear Resistance Steel Sheet High Durability

NM450 Steel Plate Quality first

GB/T 24186-2009 Nm450 Steel Plate Wear Resistance Steel Sheet High Durability

Our Certificates

GB/T 24186-2009 Nm450 Steel Plate Wear Resistance Steel Sheet High Durability

About Us

FAQ

Q1:Where is your factory located?
A: Zhengzhou, Henan, China is home to our main processing hub.
hat has state-of-the-art equipment like laser cutters, mirror polishers, and other similar devices.To meet the specific requirements of our customers, we are able to offer a comprehensive selection of tailored services.


Q2: What are your company's primary offerings?
A2: The 2mm thick wear-resistance steel plate and stainless steel plate


Q3:How many different countries have you exported to so far?
Q4: The United States, Russia, the United Kingdom, Kuwait, Egypt, Turkey, Jordan, India, and many other countries are among the 50 or so countries to which we export.

Q4: Can you give me an example? (Question 6)
A4: We carry free, miniature samples in-store. There is a 5-7 day turnaround time for customized sample orders.
