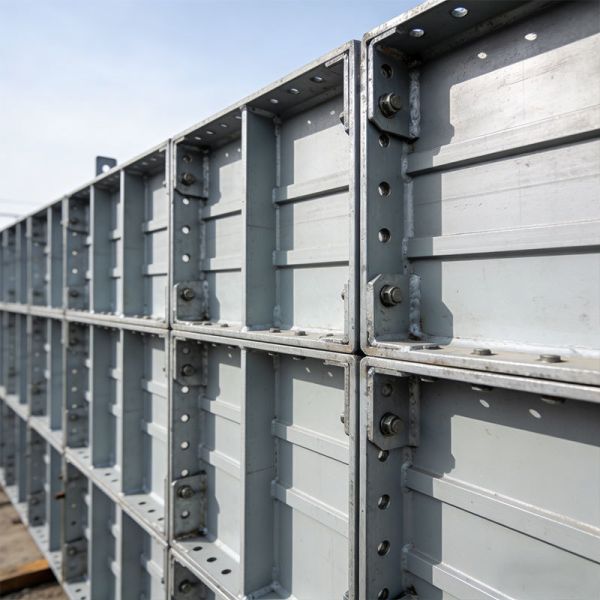

Steel wall formwork is a modular molding system designed for modern concrete buildings, which is manufactured by composite high-strength structural steel plates and section steel skeletons. The product is made of Q355B steel as the core material, with a plate thickness of 6-8mm, and is equipped with hot-dip galvanizing and epoxy spraying dual anti-corrosion processes to ensure excellent performance in various construction environments.

Core parameters:

Standard size: 1200×2400mm/1500×3000mm

Bearing capacity: side pressure≥ 90kN/㎡

Leveling accuracy: the board surface error ≤ 1.5mm/2m

Turnaround life: standardized use can reach more than 600 times

Product Advantages:

Efficient construction: The patented quick installation system realizes 3-second locking at a single point, and the installation area exceeds 180 square meters in a single day

Precise molding: laser cutting frame and CNC positioning, wall verticality error ≤ 3mm/floor height

Safe and reliable: The overall stiffness is increased by 40%, completely eliminating the risk of mold expansion

Economical and environmentally friendly: the single cost is only 18% of the wooden formwork, and the material recovery rate is 98%

Technical features:

Intelligent adjustment system: supports 2.5-4.2m height stepless adjustment

Multiple seal design: to achieve zero slurry leakage construction effect

Digital management interface: Built-in RFID chip, support whole process traceability

Strong compatibility: Perfectly docked with various support systems

Application Scenarios:

The core of a super-high-rise building

Underground comprehensive pipe gallery

Water conservancy and hydropower projects

Prefabricated component production line
