Anti Corrosion Steel Wall Formwork System For Vertical Formwork
Anti Corrosion Steel Wall Formwork System For Vertical Formwork
Anti Corrosion Steel Wall Formwork System For Vertical Formwork
Anti Corrosion Steel Wall Formwork System For Vertical Formwork
Anti Corrosion Steel Wall Formwork System For Vertical Formwork
Anti Corrosion Steel Wall Formwork System For Vertical Formwork
Anti Corrosion Steel Wall Formwork System For Vertical Formwork
Anti Corrosion Steel Wall Formwork System For Vertical Formwork
Anti Corrosion Steel Wall Formwork System For Vertical Formwork
Anti Corrosion Steel Wall Formwork System For Vertical Formwork
Specifications
Brand Name :
Shunyao Supply Chain
Model Number :
Steel formwork
Certification :
IS0
Place of Origin :
Chengdu , China
Payment Terms :
T/T in advance
Delivery Time :
5-15 days
MOQ :
100 PCS
Price :
$40-150
Supply Ability :
Excellent
Packaging Details :
Bundles
Material :
High-quality steel
Compatibility :
Suitable for various wall thicknesses
Weightperpanel :
Approximately 25-30 kg
Maximumconcretepressure :
Up to 80 kN/m²
Customization :
Available in custom sizes and shapes
Durability :
High resistance to wear and corrosion
Panel thickness :
2.0mm to 3.0mm
Jointtype :
Bolt or clamp connection
Panelsize :
Typically 1200mm x 2400mm
Environmentalimpact :
Recyclable and eco-friendly material
Surfacetreatment :
Anti-rust coating or galvanization
Application :
Used for casting concrete walls in construction
Productname :
Steel Wall Formwork
Easeofassembly :
Modular design for quick installation
Reusability :
Up to 100 times
Description

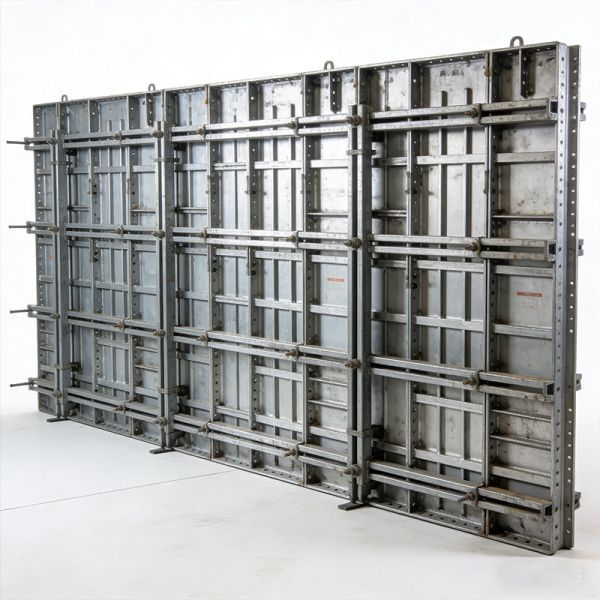

Steel wall formwork is a modular concrete casting system designed specifically for the construction of vertical structures such as cast-in-place shear walls and retaining walls in modern buildings. The product features a main body made of 6mm thick Q355B high-strength steel plates combined with a specially designed steel frame. Through a dual anti-corrosion process of hot-dip galvanizing and powder coating, it ensures excellent performance in various construction environments.

Technical Specifications:
  • Standard panel size: 1200*2400mm / 1500*3000mm
  • System stiffness: Deflection ≤ L/500, where L is the span of the formwork
  • Load capacity: Lateral pressure ≥ 80kN/㎡
  • Connection system: Patented wedge locks, single-point locking force ≥ 15kN
Core Advantages:
  • Highly efficient construction: Standard interface design allows for an installation area of 120-150㎡ per workday
  • Precise forming: Panel flatness ≤ 2mm/2m, achieving fair-faced concrete finish
  • Safe and reliable: Strong overall rigidity with zero risk of formwork blowout during pouring
  • Economical and durable: Can be reused more than 500 times under normal conditions, with total cost reduced by 60% compared to traditional formwork
System Features:
  • Self-adjusting height device (adjustable range 2.8-4.2m)
  • Integrated tie system with standardized hole positions
  • Special formwork for internal and external corners to ensure quality corner formation
  • Equipped with intelligent monitoring sensors for real-time monitoring of the pouring status
Applications:
  • Core tube shear walls in high-rise buildings
  • Basement exterior walls and retaining walls
  • Bridge piers and culvert walls
  • Large water tanks and silo structures
Material Steel, stainless steel Application Concrete construction
Feature Easy to assemble, high strength, reusablet Warranty 2 Years
Design Style modern After-sale Service Online Technical Support,
Onsite Installation
Project Solution
Capability		 3D model design, graphic
design		 Place of Origin Chengdu, China
Brand Name Shunyao Supply Chain Steel Frame Attachment U-bolt, bolts, and nuts
Color Customer Requirements Size Customer s
Variety Steel formwork systeml Type Steel formwork for concrete construction
