Customizable Dimensions High Load-Bearing Capacity Eco-friendly Prefabricated Steel Structure Factory Building
Customizable Dimensions High Load-Bearing Capacity Eco-friendly Prefabricated Steel Structure Factory Building
Customizable Dimensions High Load-Bearing Capacity Eco-friendly Prefabricated Steel Structure Factory Building
Customizable Dimensions High Load-Bearing Capacity Eco-friendly Prefabricated Steel Structure Factory Building
Customizable Dimensions High Load-Bearing Capacity Eco-friendly Prefabricated Steel Structure Factory Building
Customizable Dimensions High Load-Bearing Capacity Eco-friendly Prefabricated Steel Structure Factory Building
Customizable Dimensions High Load-Bearing Capacity Eco-friendly Prefabricated Steel Structure Factory Building
Customizable Dimensions High Load-Bearing Capacity Eco-friendly Prefabricated Steel Structure Factory Building
Customizable Dimensions High Load-Bearing Capacity Eco-friendly Prefabricated Steel Structure Factory Building
Customizable Dimensions High Load-Bearing Capacity Eco-friendly Prefabricated Steel Structure Factory Building
Specifications
Design Load :
Wind, Snow, Seismic
Sustainability :
Eco-friendly
Design :
Custom with Free Architectural design
Lifetime :
Up to 50 years
Place of Origin :
Chengdu , China
Brand Name :
Shunyao Supply Chain
Packaging Details :
Bundles
Delivery Time :
30-60 Days
Supply Ability :
15000 Tons
Beam :
H-section Beam
Roof Cladding :
Sandwich Panel Glass Wool
Crane Capacity :
Without Or From 1Ton ~300Ton
Parapet Wall :
As Requested
Production :
Finished for direct install support
Connection :
Bolts
Forming :
Hot-Rolled Steel
Lifespan :
More than 50 years
Certification :
CE,ISO
Connection Form :
Bolt Connection
Payment :
30%, 70%
Thickness :
5-28mm
Price :
$1300-3000
Keyword :
Light Frame Steel Construction
Main Steel Frame :
H Steel,Z or C Purlin
Roof :
Glass Wool, EPS, PU
Cost Efficiency :
High
Connection Method :
Bolting
MOQ :
1 PCS/20 Tons
Payment Terms :
T/T in advance,L/C,D/A,T/T,D/P
Energyefficiency :
Energy-saving lighting and HVAC systems
Wall Cladding :
Sanwich Panel, single sheet
Roofing :
Sandwich Panel. Single Steel Sheet
Resistance To Deformation :
High
Platform Type :
Wooden planks or Metal decks
Finishing Options :
Paint, Galvanization, Powder Coating
Framematerialgrade :
Q235/Q345
Dimension :
Custom As Exact Demands
Heightrange :
Up to 30m
Description
Peb Steel Structure Industrial Factory Building

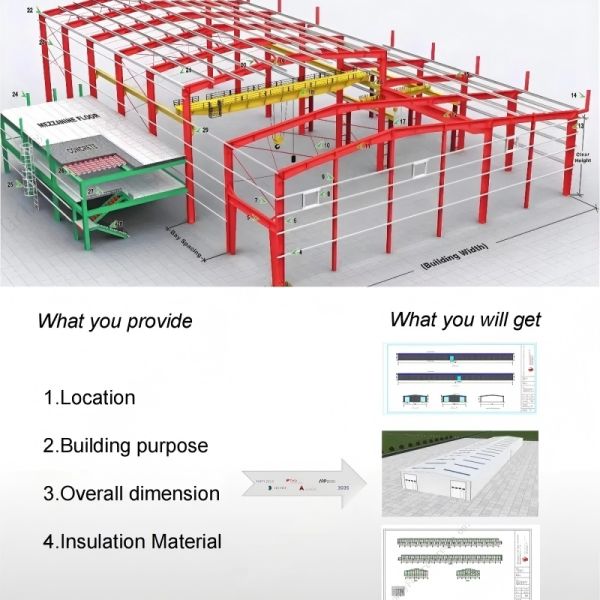

We have a design team composed of professional designers, who are skilled in using CAD/STRAP/3D3S/ROBOT etc. Thus, we can provide professional solutions. If you have your own drawings, we welcome customized production. If not, provide your requirements and we can design the plan drawings for you.
Customizable Dimensions High Load-Bearing Capacity Eco-friendly Prefabricated Steel Structure Factory Building
Integrated Steel Structure Factory Building Specifications
Item Details
Product Name Steel Structure Factory Building
Application Machinery manufacturing factory, auto parts factory, electronics assembly plant, warehouse & logistics center, light industry workshop, heavy industry production base, workshop extension
Steel Structure Material Main Frame: Q235/Q355 Carbon Steel (high strength, strong load-bearing); Purlins: C/Z Section Steel; Roof & Wall Panels: Color Steel Sandwich Panel (core options: EPS/PU/Rock Wool), Single-layer Color Steel Plate, Rock Wool Sandwich Panel (fireproof/thermal insulation); Crane Beam: Q355B Carbon Steel (optional, for crane installation)
Customizable Dimensions Span: 10m - 40m (single-span); 20m - 80m (multi-span); Length: 30m - 300m; Height: 4m - 15m (eaves height); Tailored design based on production layout, equipment size, crane capacity and local climate
Load-Bearing Capacity Roof load: 0.3 - 1.0 kN/m²; Floor load: 2.0 - 10.0 kN/m² (adjustable for heavy equipment); Crane capacity: 5 - 500 tons (optional, custom crane beam design)
Structural Performance & Durability Steel parts: Hot-dip galvanizing/anti-rust paint treatment (anti-corrosion, anti-rust, service life ≥20 years); Wind resistance: ≥12 grades; Earthquake resistance: ≥7 grades; Fire rating: Grade A/B (depends on panel material); Structure: Anti-deformation, stable performance, suitable for long-term industrial use
Core Advantages
  • Large span design, flexible internal space (no columns or few columns, easy for equipment layout)
  • High structural strength, strong load-bearing capacity for heavy machinery
  • Fast construction (prefabricated parts, construction period shortened by 30%-50% compared to concrete buildings)
  • Excellent thermal insulation, soundproofing and fireproof performance (optional high-grade panels)
  • Easy to expand, renovate and relocate
  • Energy-saving & environmentally friendly (recyclable steel materials)
Optional Matching Equipment & Design Crane system (single-girder/double-girder crane), ventilation system (exhaust fans/air conditioning), lighting system, fire protection system (sprinklers/fire extinguishers), skylights (for natural lighting), loading and unloading platforms, insulation doors/rolling shutter doors
Certifications ISO9001 Quality Management System Certification, CE, SGS, BV, GB50017 Steel Structure Design Standard (can provide certifications required by target markets such as EU, North America, Southeast Asia)
Minimum Order Quantity (MOQ) 1 Set (or 500, negotiable for large-scale projects)
Delivery Time 30 - 60 Working Days After Receiving Advance Payment (adjustable according to project scale, customization complexity and order quantity)
Packaging Details Steel structure parts: Standard export wooden cases + pallets (shockproof, anti-collision); Panels: Film wrapping + pallets; Large components: Nude packing with protective covers + steel wire fixing; Small accessories: Carton packaging with shockproof foam
Payment Terms T/T (30% Advance Payment, 70% Balance Before Shipment), L/C at Sight, Installment Payment (negotiable for large-scale projects over 1 million USD)
Supply Capacity 15000 Per Month (or 60 Sets Per Month for standard models)
Warranty & Service 1-Year Warranty for the whole set; 10-Year Warranty for steel structure (excluding man-made damage, natural disasters and improper use); Free professional design (3D structural drawing, layout drawing and construction drawing); On-site installation supervision and technical guidance (paid full-set installation service available); 24/7 after-sales technical support and maintenance consultation
Project Cases & Support Can provide global project cases (photos/videos); Provide one-stop service from design, production, delivery to installation guidance; Accept third-party inspection (SGS/BV) before shipment
Customizable Dimensions High Load-Bearing Capacity Eco-friendly Prefabricated Steel Structure Factory Building
This Steel Structure Factory Building is a robust, adaptable industrial facility tailored to support diverse manufacturing, processing, and production operations.
Structural Strength & Durability

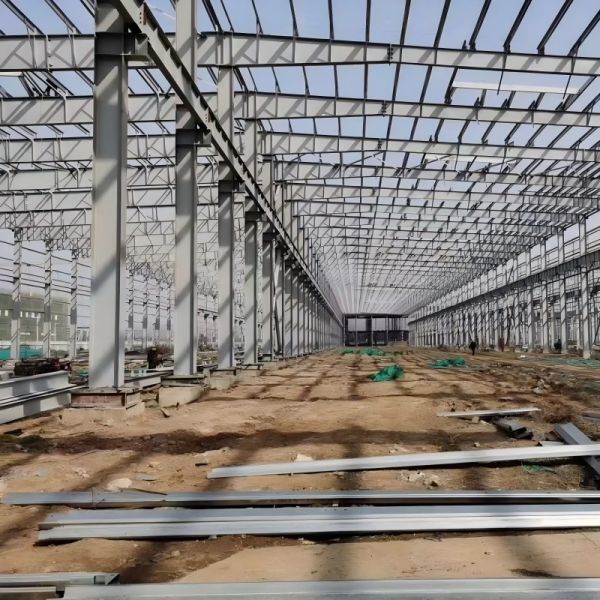

Its framework uses galvanized steel components, delivering excellent load-bearing capacity, corrosion resistance, and seismic performance—suitable for both single-story large-span layouts and multi-story production complexes. The enclosure adopts insulated color steel sandwich panels, balancing thermal insulation (to stabilize indoor working environments) and weather resistance for long-term reliable use.
Efficient Construction

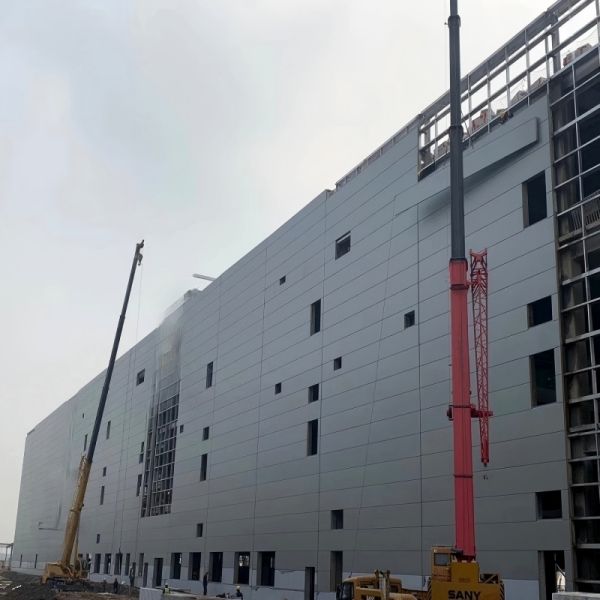

Built with prefabricated steel parts, the process leverages equipment like cranes for fast on-site assembly. This industrialized approach shortens project timelines significantly while ensuring consistent structural quality, even for large-scale complexes.
Functional Adaptability

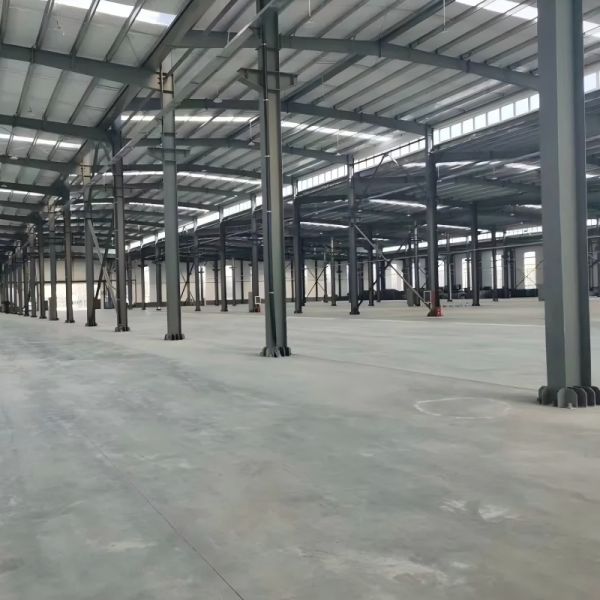

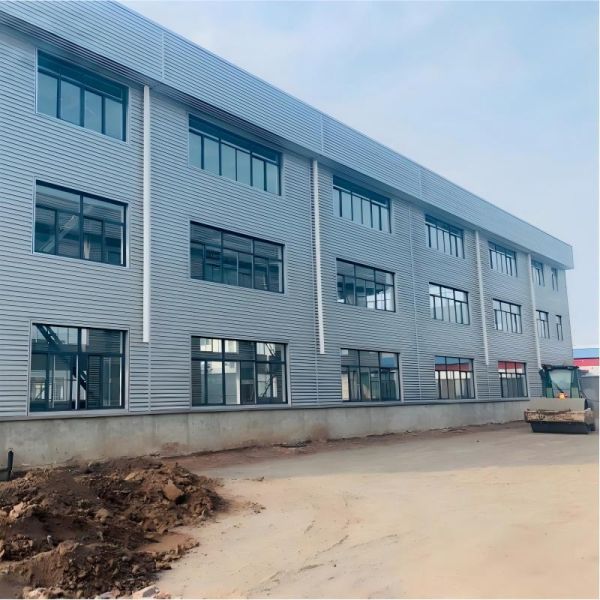

It caters to varied industrial needs: single-story layouts offer unobstructed space for heavy machinery/assembly lines; multi-story designs enable layered workflow separation (e.g., different processes across floors). Large access points (e.g., oversized doors) facilitate equipment/bulk material movement, with reserved positions for custom equipment installations.
Cost-Effective Operation
The durable structure minimizes long-term maintenance costs, and the flexible interior allows easy adjustments to production lines or workspace configurations—making it a high-efficiency, cost-saving industrial solution.
Customizable Dimensions High Load-Bearing Capacity Eco-friendly Prefabricated Steel Structure Factory Building Customizable Dimensions High Load-Bearing Capacity Eco-friendly Prefabricated Steel Structure Factory Building
Frequently Asked Questions
What types of steel structures does your company manufacture?
We produce a comprehensive range of steel structures for industrial, commercial, residential, agricultural, livestock, and public building applications, alongside bespoke steel solutions.
How can I obtain a quotation for a steel structure project?
You may request a quotation by completing the contact form on our official website, or by contacting us directly via email or telephone.
Does your company provide installation services?
Yes, we offer installation guidance services.
What advantages does steel construction offer over traditional building materials?
Steel structures provide superior durability, cost-effectiveness, and environmental sustainability. They offer greater design flexibility, shorter construction timelines, and exceptional resilience against natural disasters.
What warranty terms apply to your products?
We provide comprehensive warranties for all steel structural products. Specific warranty conditions vary by product and project scope; please enquire for details.
